3 Product Description Docking Station for SIPLACE SX Changeover Tables
3.1 Functional Description Operating Manual
16
The major functions of the docking station are:
– Supplying the changeover table and the X feeder modules with power
– Providing an infrastructure for the communication between the PC of the pre-setup station and
the feeder modules
The user can use the docking station to conduct function tests on the X feeder modules and to
check the setups outside the production environment. For this purpose, two rows each having four
docking stations are connected via the CAN bus of the pre-setup PC. Each docking station has its
own power and compressed-air connections.
The docking station’s changeover table docking device can be adjusted to the desired PCB
conveyor height. The changeover table is pushed into the docking station for the pre-setup. The
changeover table slides by roller bearings mounted to its sides on the rails of the changeover table
docking device to the power and data interface connector (EDIF). The EDIF in the changeover
table docking device is properly positioned to the component table with the EDIF of the feeder
modules.
17
Docking Station for SIPLACE SX Changeover Tables 3 Product Description
Operating Manual 3.2 Technical Data
3.2 Technical Data
1
2
3
801.5
859
889
909
Height to centring pin
(1) Compressed-air connection
(2) CAN bus port
(3) Power supply socket
1038

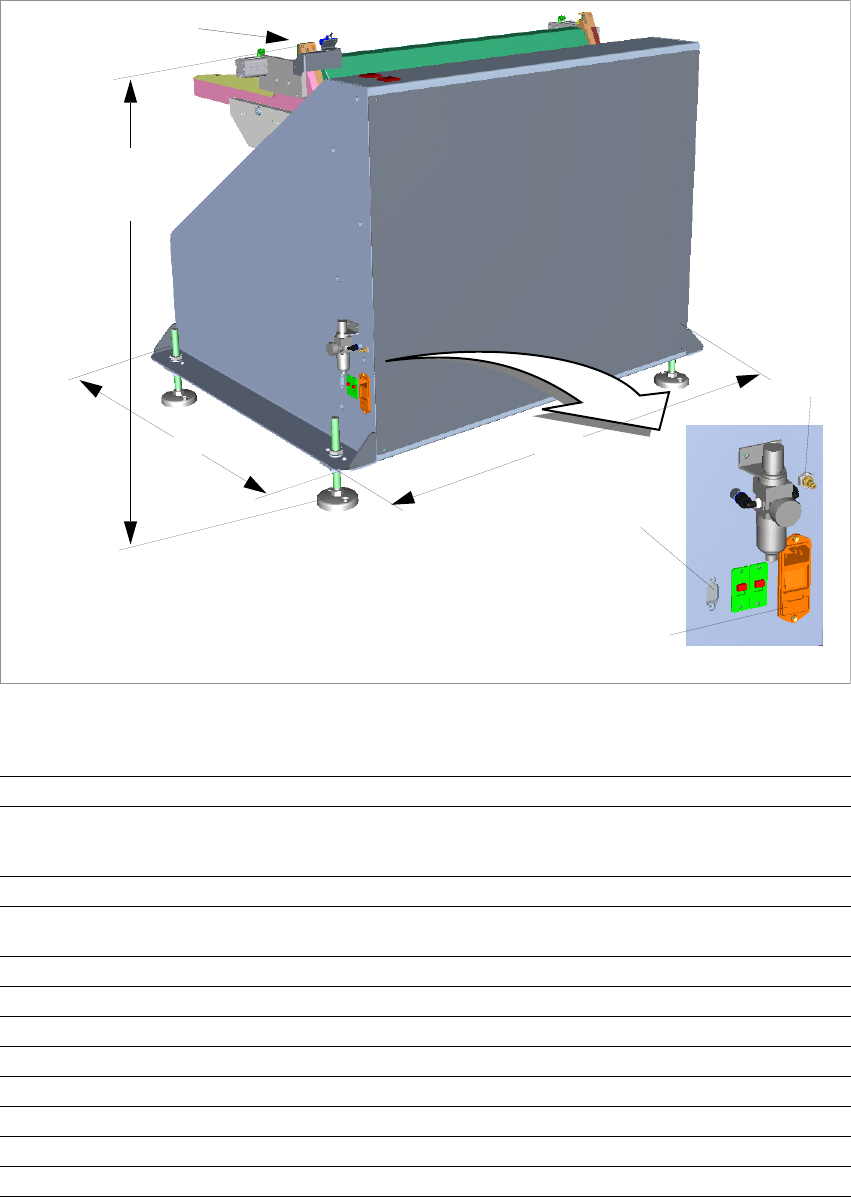

Fig. 3 - 2 Docking station SIPLACE SX – dimensions in millimetres, connections
Length x width 801.5 mm x 1038 mm
Height (to centring pin) 859 mm at 900 mm PCB conveyor height
889 mm at 930 mm PCB conveyor height
909 mm at 950 mm PCB conveyor height
Weight 105 kg
Compressed-air connection p
min.
0.5 MPa (5.0 bar)
p
max.
1.0 MPa (10.0 bar)
Compressed-air connection Coupling connector KS 2-M5-A
Flow 5 Nl/min
a
a. Under atmospheric standard conditions at 20°C and 1013 hPa
Supply voltage 88 - 264 V AC
No. of wires / phases 3 / 1
Frequency max. 63 Hz
Rated current max. 2 A
Power 0.23 kW
Protection 2 x 8 A
3 Product Description Docking Station for SIPLACE SX Changeover Tables
3.2 Technical Data Operating Manual
18
3.2.1 Dimensions with docked changeover table
654 801.5
178
1
2

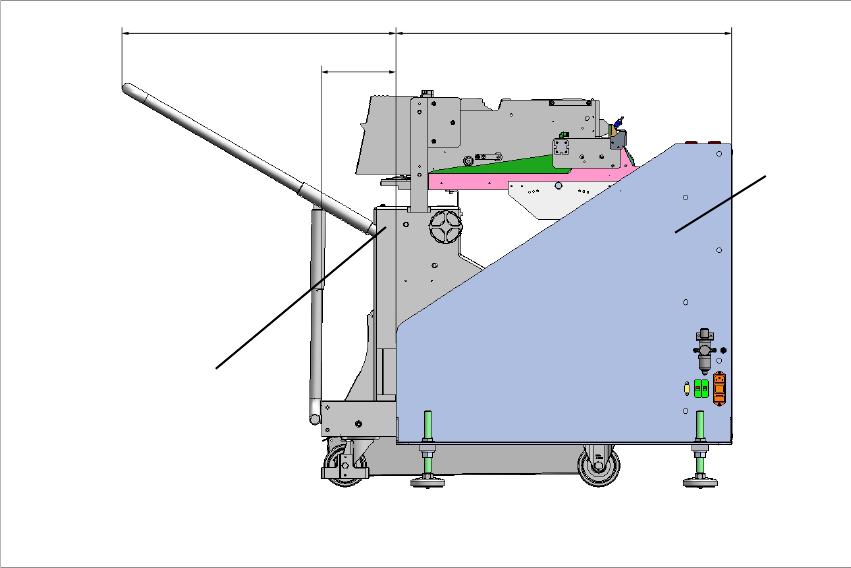

Fig. 3 - 3 Docking station SIPLACE SX with docked changeover table – dimensions in millimetres
(1) Changeover table
(2) Docking station
