NPM- TT2 EJM1EE-MB -02O-04 2-2-2 -16 Measures XY-origin and the head camera. Obtains measurements required to calculate the XY offset of the placement range. Calibration First step Measures the origin offse t of Z-axis, …
NPM-TT2 EJM1EE-MB-02O-04
2-2-2-15
Engineer mode 6
Compo-
nent
names
Menu configuration 8
Operating procedure
2-2-2
Parameter
Machine
menu
Checks pickup position offset.
Feeder
Checks the offsets of squeegee-axis
and transcription position.
Tray
Checks the origin offset.
Checks pickup position offset.
Checks the offset and scale of the
head camera.
Checks the lamp values to be set to
the recognition device.
Head
camera
Checks the offset and magnification
of the component recognition camera.
Checks the lamp values to be set to
the recognition device.
Checks and enters the lamp values to
be set to the recognition device.
First layer Second layer Third layer Fourth layer
Multi-
recognition
camera
Checks and enters the offset
correction coefficient of the height
sensor.
Height sensor
NPM-TT2 EJM1EE-MB-02O-04
2-2-2-16
Measures XY-origin and the head
camera.
Obtains measurements required to
calculate the XY offset of the
placement range.
Calibration
First step
Measures the origin offset of Z-axis,
and obtains measurements required
to calculate the height offset of the
placement range.
Configures the origin offset of the
adjustment width.
Second step
Configures the parameter for load
control.
Sets a PCB stop position and
placement height offset.
Measures scan position offset, line
camera magnification and camera tilt.
Third step
(for the 3-nozzle head)
Corrects the height sensor.
Preparation
First layer Second layer Third layer Fourth layer
Sets the origin offset of the head θ-
axis and the multi- recognition
camera magnification.
Measures the offset value related to
split recognition.
(displayed when split recognition is set)
NPM-TT2 EJM1EE-MB-02O-04
2-2-2-17

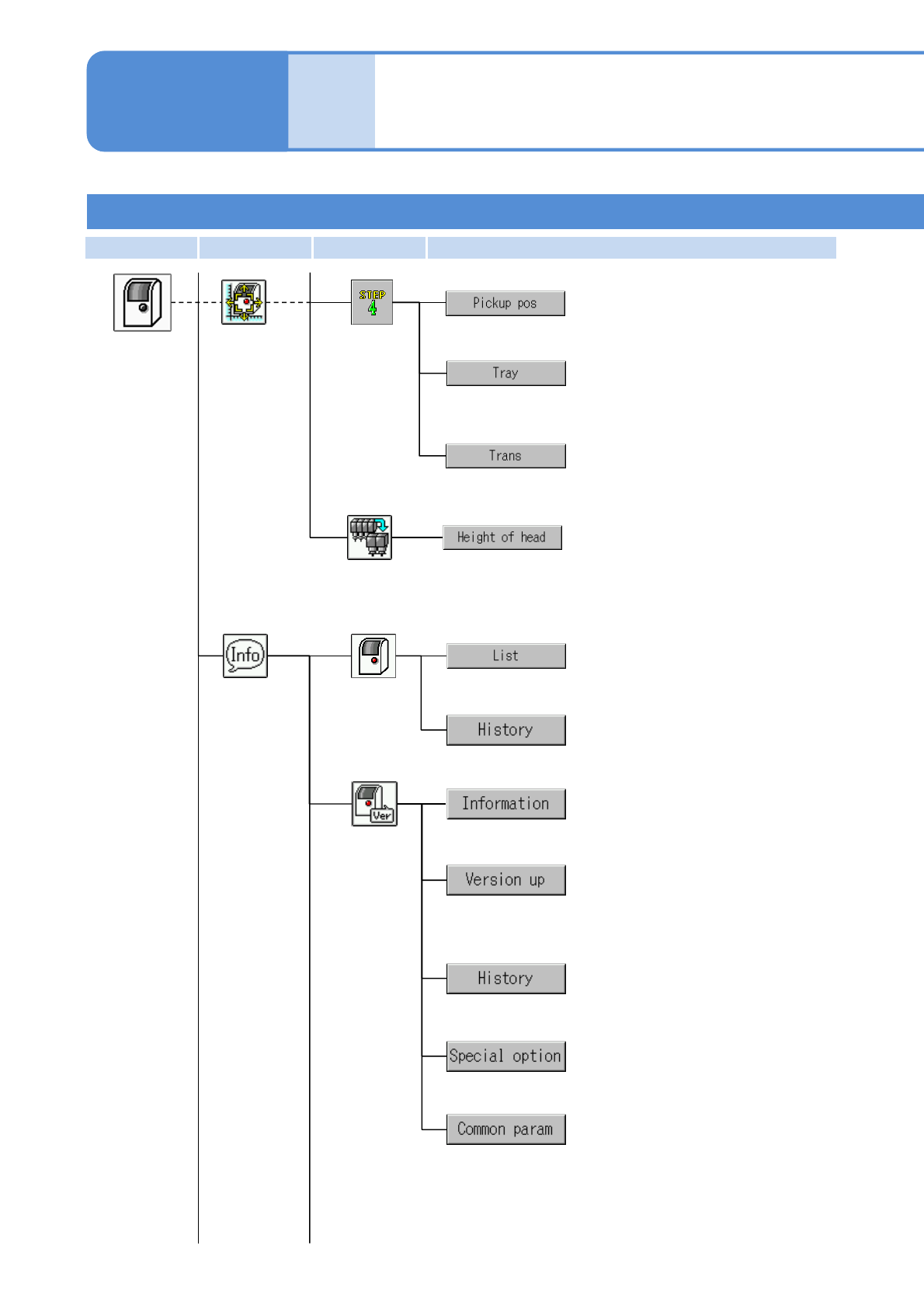

Engineer mode 7
Compo-
nent
names
Menu configuration 9
Measures the pickup height and
position.
Measures the origin offset of Z-axis.
Fourth step
Unit replacement
Measures the pickup height and
position offsets of the tray.
(tray only)
Calibration
Machine
menu
Checks the connection status of plug-
and-play on the machine.
Checks the PnP history.
Updates machine system software,
messages, recognition system
software, and kernels.
Checks the system software history.
Displays special options being
enabled.
Checks system software information.
Information PnP
Machine
Loads the common parameters
selected from LNB or the SD card.
Operating procedure
2-2-2
First layer Second layer Third layer Fourth layer
Measures the transcription position
offset height.
