NPM- TT2 EJM1EE-MB -02O-04 Prepara- tions before produc- tion Operating procedure 2-4-1 Pr epar a tion of the intelligent f eeder 1 2-4-1 -1 2 1 Cut the carrier tape Attach the feeder to the feeder base Align the end of …
NPM-TT2 EJM1EE-MB-02O-04
Preparation
2-3-7-2
NPM-TT2 EJM1EE-MB-02O-04
Prepara-
tions
before
produc-
tion
Operating procedure
2-4-1

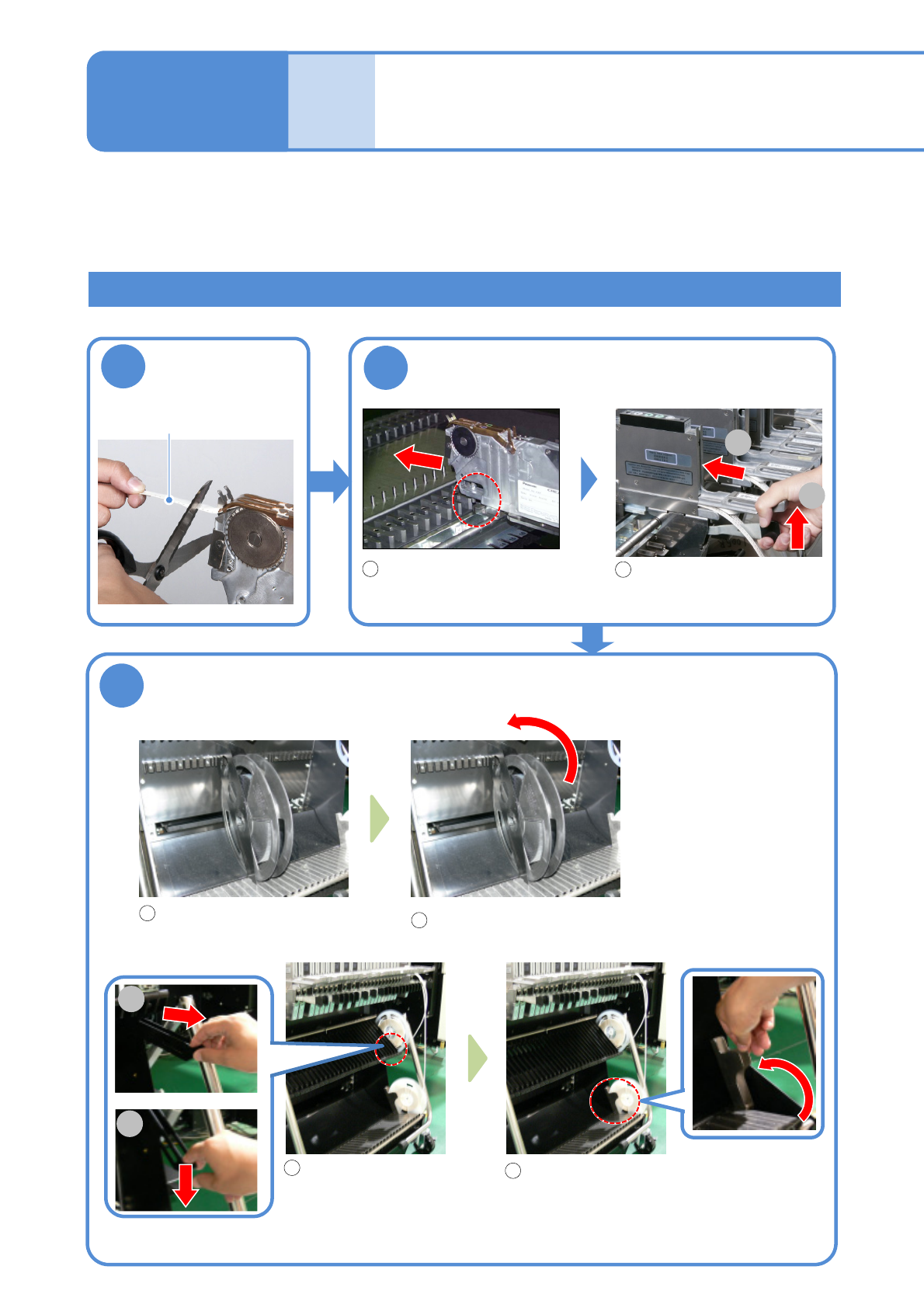

Preparation of the
intelligent feeder 1
2-4-1-1
2
1
Cut the carrier
tape
Attach the feeder to the feeder base
Align the end of the feeder with
a slot and insert it into the
feeder base.
3
Pull up the lever and push
it all the way inside.
Carrier tape
Attach the reels
■Large reel
Place the large reel on the
lower curved surface.
Make sure that the reel can rotate.
●Depending on the setting
condition of the adjacent
reel, install the separator.
●Use a spindle for a heavy
reel that does not rotate
smoothly.
( →P. 2-4-1-5)
■Small reel
Place the reel.
Raise the lever until it touches the lower
small reel guide.
●Pull the lever toward you and lower it to the
stopper.
2
1
1
2
1
2
1
2
2
1
Installing the double tape feeder
●About replacement of components(→P.3-3-1)
Describes how to install the double tape feeder and thin type single feeder.
(→[Intelligent tape feeder] operating manual)
The installation method of the intelligent stick feeder is the same as step ② below.
((→[ Intelligent Stick Feeder ] operating manual)
NPM-TT2 EJM1EE-MB-02O-04
2-4-1-2
Preparation
2
1
Installing the thin type single feeder
Cut the carrier
tape
Attach the feeder to the attachment
Align the feeder edge to the
insertion slot of the dedicated
attachment and insert.
Pull down the lever and insert it
all the way inside.
Confirm that the dedicated attachment has been installed.
2
1
●Refilling the substitution part (→P.3-3-1)
Carrier tape
To step on the left page
3
2
Align the attachment edge to
the slot and insert
Pull up the lever and insert
all the way inside
1
1
2
■How to attach the dedicated attachment
■How to attach the thin type single feeder
