NPM- TT2 EJM1EE-MB-02 O-04 Pr epar ation of the intelligent f eeder 2 2-4-1 -3 Operating procedure 2-4-1 Prepara- tions before produc- tion Removing the double tape feeder 2 1 1 2 Lift up the rear side and remove the fee…
NPM-TT2 EJM1EE-MB-02O-04
2-4-1-2
Preparation
2
1

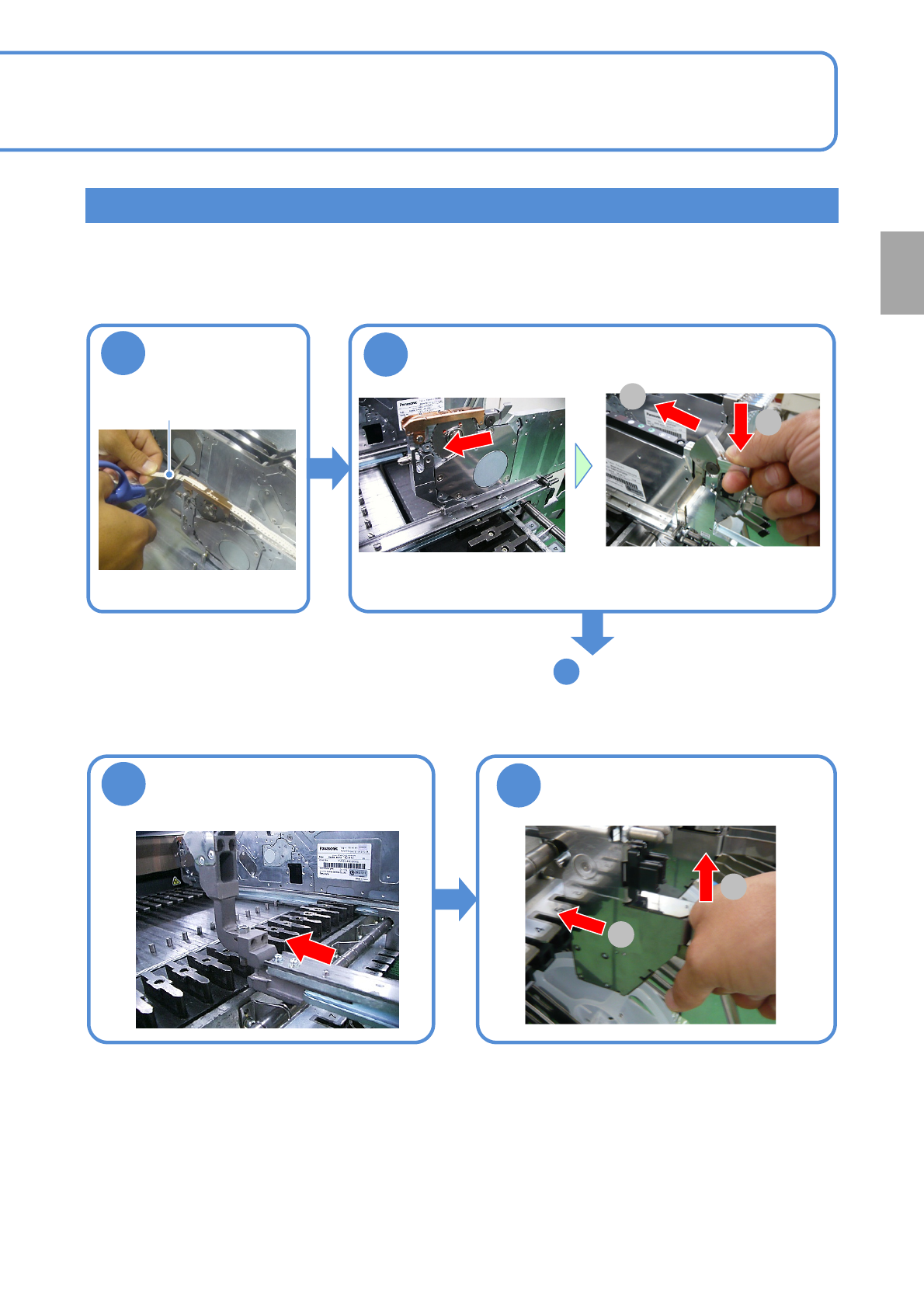

Installing the thin type single feeder
Cut the carrier
tape
Attach the feeder to the attachment
Align the feeder edge to the
insertion slot of the dedicated
attachment and insert.
Pull down the lever and insert it
all the way inside.
Confirm that the dedicated attachment has been installed.
2
1
●Refilling the substitution part (→P.3-3-1)
Carrier tape
To step on the left page
3
2
Align the attachment edge to
the slot and insert
Pull up the lever and insert
all the way inside
1
1
2
■How to attach the dedicated attachment
■How to attach the thin type single feeder
NPM-TT2 EJM1EE-MB-02O-04
Preparation of the
intelligent feeder 2
2-4-1-3
Operating procedure
2-4-1
Prepara-
tions
before
produc-
tion
Removing the double tape feeder
2
1
1
2
Lift up the rear
side and remove
the feeder with
both hands
Pull up the lever
and pull out the
feeder
How to hold the feeder
Hold the parts with
both hands
Using a preparation with production use feeders set to
the feeder cart allows you to exchange all feeders at once during production changeover. (→[Maintenance]
P.3-2)
Batch exchange using the feeder cart (option)
Pay attention to your surroundings when you move the feeder
cart
(Risk of injury in a collision with the cart )
WARNING
Describes how to remove the double tape feeder and thin type single feeder.
(→[ Intelligent Tape Feeder ] operating manual)
The removal method of the intelligent stick feeder is the same as the one of the double tape feeder.
(→[ Intelligent Stick Feeder] operating manual)
NPM-TT2 EJM1EE-MB-02O-04
2-4-1-4
Preparation
Removing the thin type single feeder
2
Remove it from
the dedicated
attachment
1
Pull out the
feeder
How to hold the feeder
Hold the parts with
both hands
●When the tape feeder is removed during production, remove in such a way that you
push the tape edge down.
●Do not put the tape feeder back in the middle of removal. Doing so may cause the
machine to stop due to blocking the light of the feeder opening sensor by the tape edge.
NOTE
2
Lift it up at the
stopper position
and remove
1
Pull up the lever
and pull out the
attachment
This procedure is performed when using the thin type single feeder.
1
2
■Removing the dedicated attachment
How to hold the feeder
Hold the parts with
both hands
1
2
■Removing the thin type single feeder
