NPM-TT2 EJM1EE-MB-02O-04
2-4-2-4

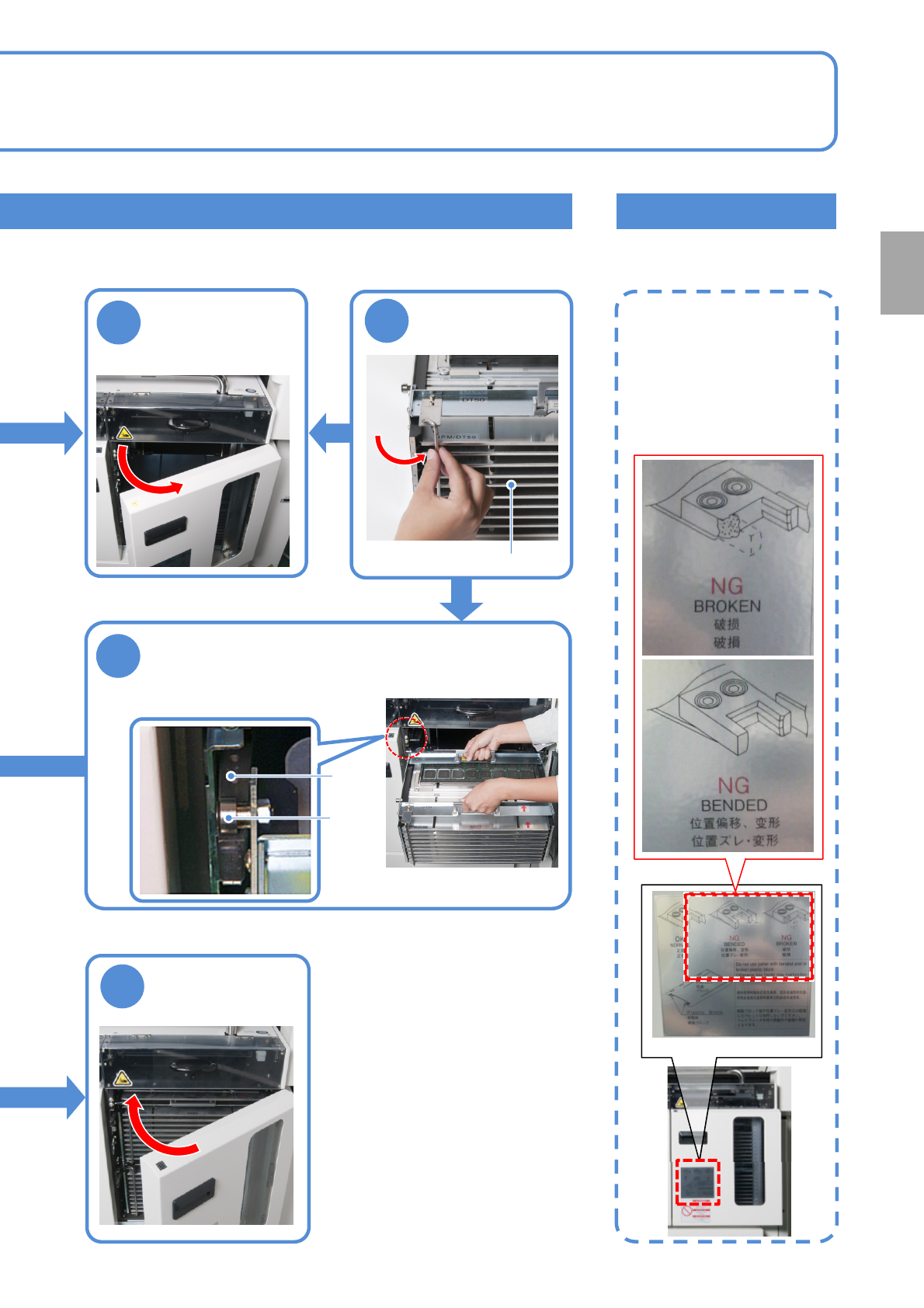

●Do not use a pallet whose
resin block part is
misaligned, deformed or
damaged.
Such a pallet may cause a
malfunction or damage to
the tray feeder body.
Checks
Warning label
8
3
Lock the
magazine
Magazine
2
Rail
4
Place the magazine
rollers on the rails of
the tray feeder
Roller
Preparation
NPM-TT2 EJM1EE-MB-02O-04
Preparation of the tray
feeder 3
1
2

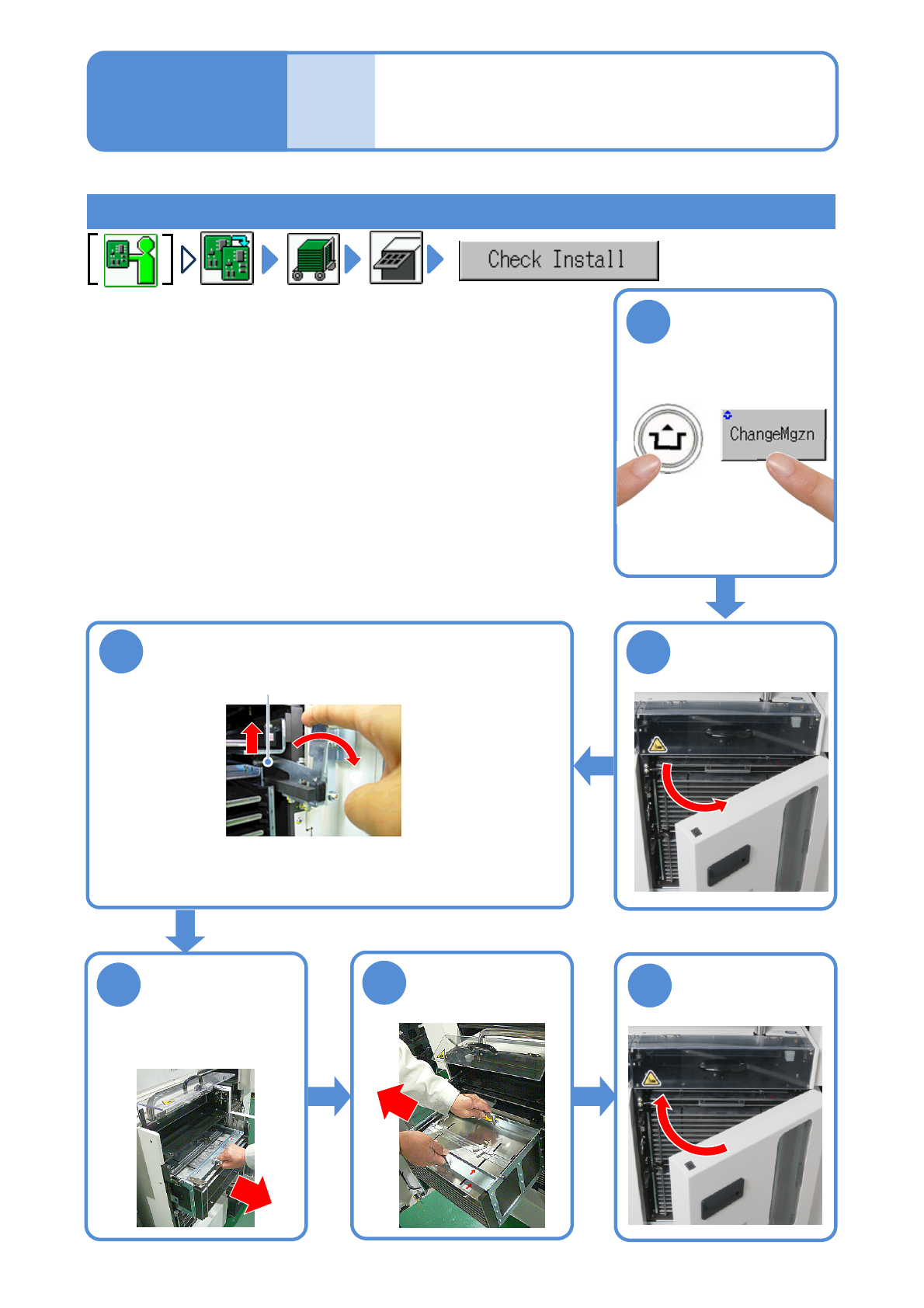

Removing the magazine from the tray feeder
2-4-2-5
4
3
Raise the stopper and pull the magazine out
until the magazine handle comes out
Release the clamp lever
after pulling it until the clamp
release lever is disengaged.
Lift up the front
handle and draw
out the magazine
until you can see
the other handle
Stopper
Hold both handles
and remove the
magazine
5
6
Operating procedure
2-4-2
Prepara-
tions
before
produc-
tion
ACTIVATION
NPM-TT2 EJM1EE-MB-02O-04

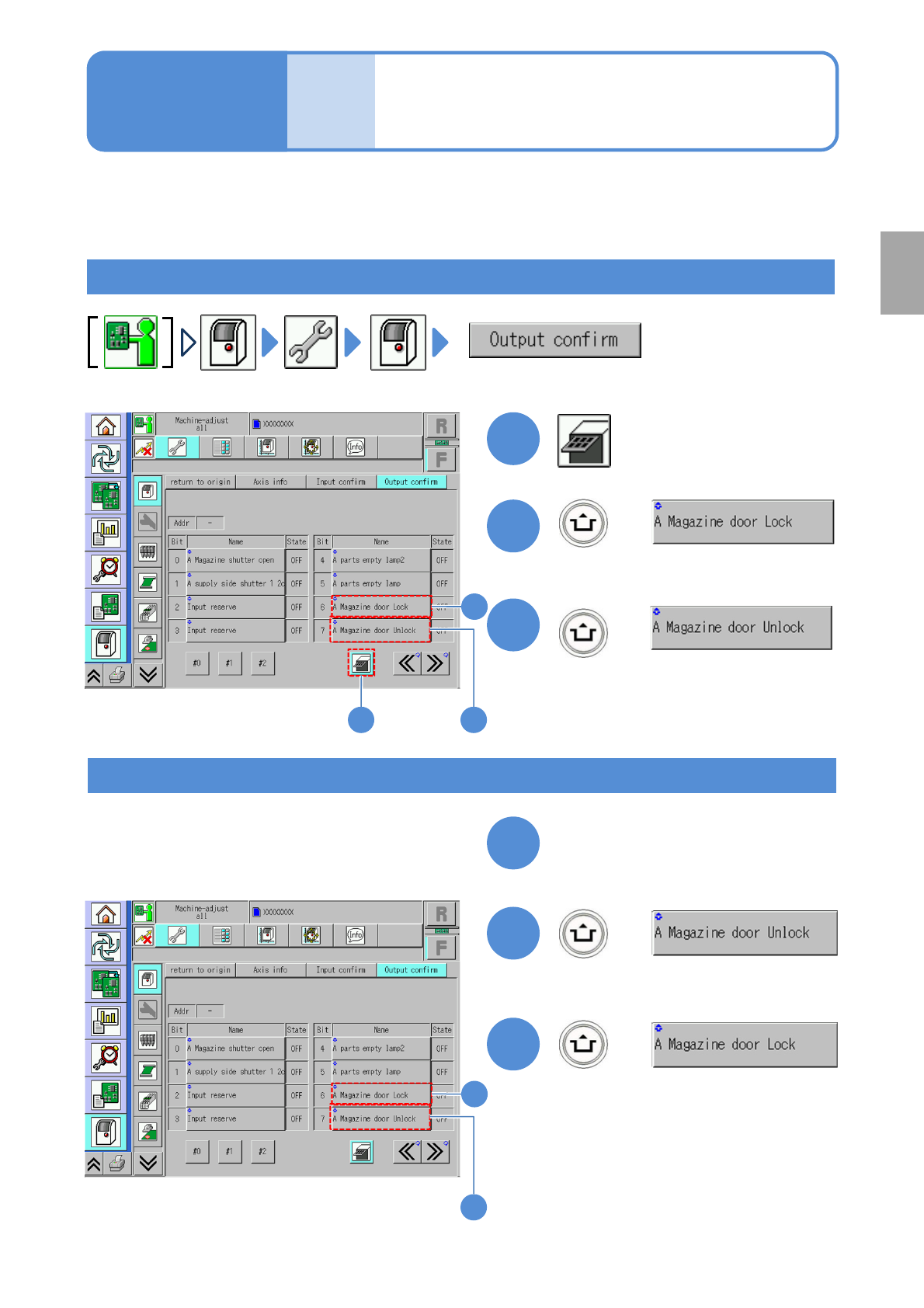

Unlocking the
magazine door
1
1
2-4-3
3
3
1
Close the magazine door
+
To lock again
(The magazine door is locked)
+
2
To unlock
Operating procedure
2-4-3
Prepara-
tions
before
produc-
tion
+
(The magazine door is unlocked and
opens)
3
2
2
(Status is OFF)
+
(Status is ON)
(Status is OFF)
(Status is ON)
2
3
Preparation
In the case that you are not in the normal operation mode
1)
because of a tray feeder error, the following
operations help you unlock and open the door.
1) ‘Removing the magazine from the tray feeder’ ( →P.2-4-2-
5)
