NPM-TT2 EJM1EE-MB-02O-04
2

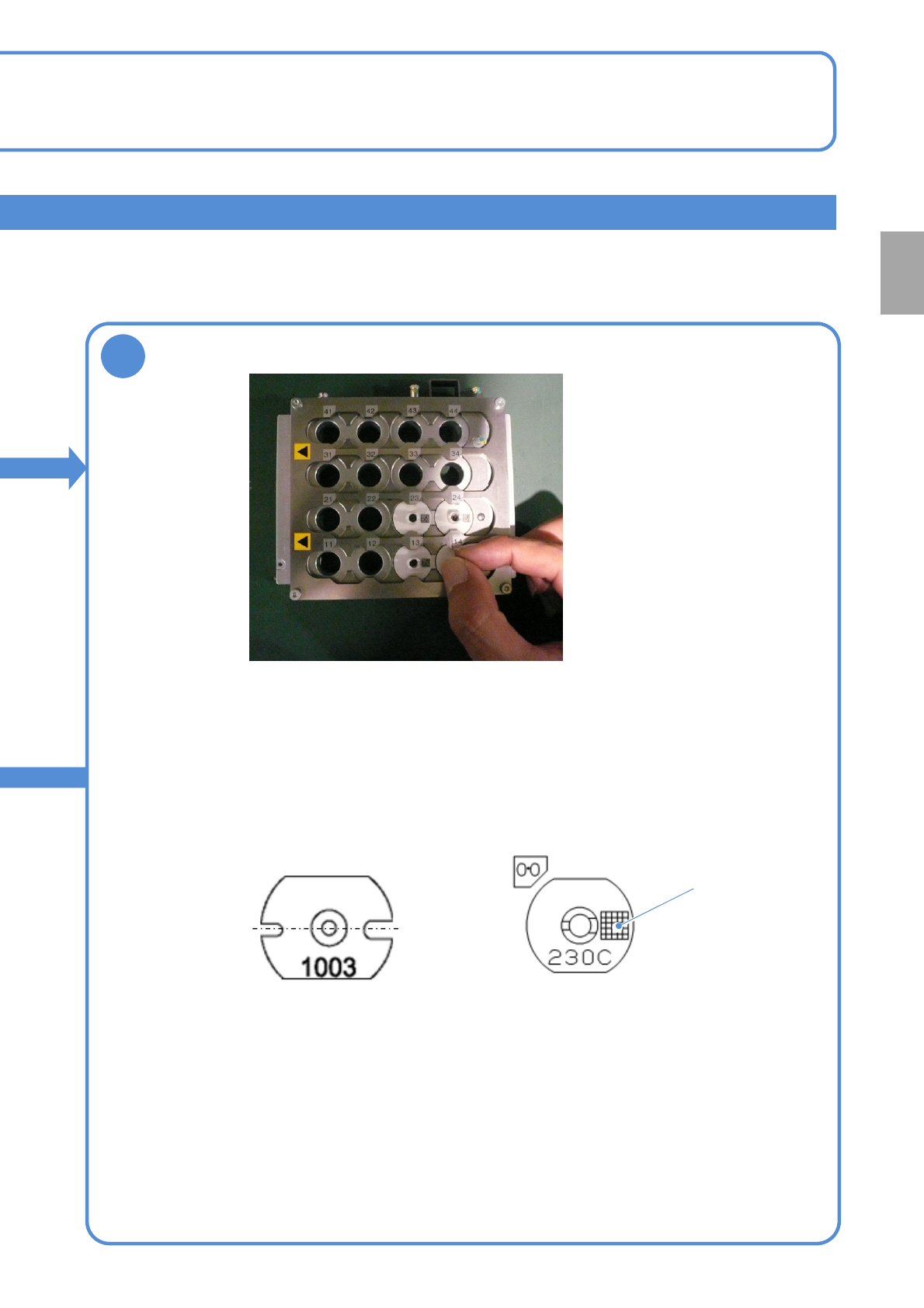

●As far as the nozzles for the 3-
nozzle head use are concerned, be
careful of the right and left grooves
orientation.
Narrow
groove
Wide
groove
Feeder table side
2-5-2-4
●Place the 8-/12-/16-nozzle head use nozzles, on which 2D
code is marked, in the direction as shown in the following
figures.
●Option settings can detect nozzle types by 2D code and thus
help prevent the nozzles from being placed in the wrong places.
(for information on how to set, see P.5-1-1)
Feeder table side
<Nozzle for 8-nozzle head><Nozzle for 3-nozzle head>
2D code
Replace nozzles
Preparation
NPM-TT2 EJM1EE-MB-02O-04
Individu-
al
prepara-
tion
Replacing the nozzle 3
2-5-2-5
Operating procedure
2-5-2
1
B
A
1

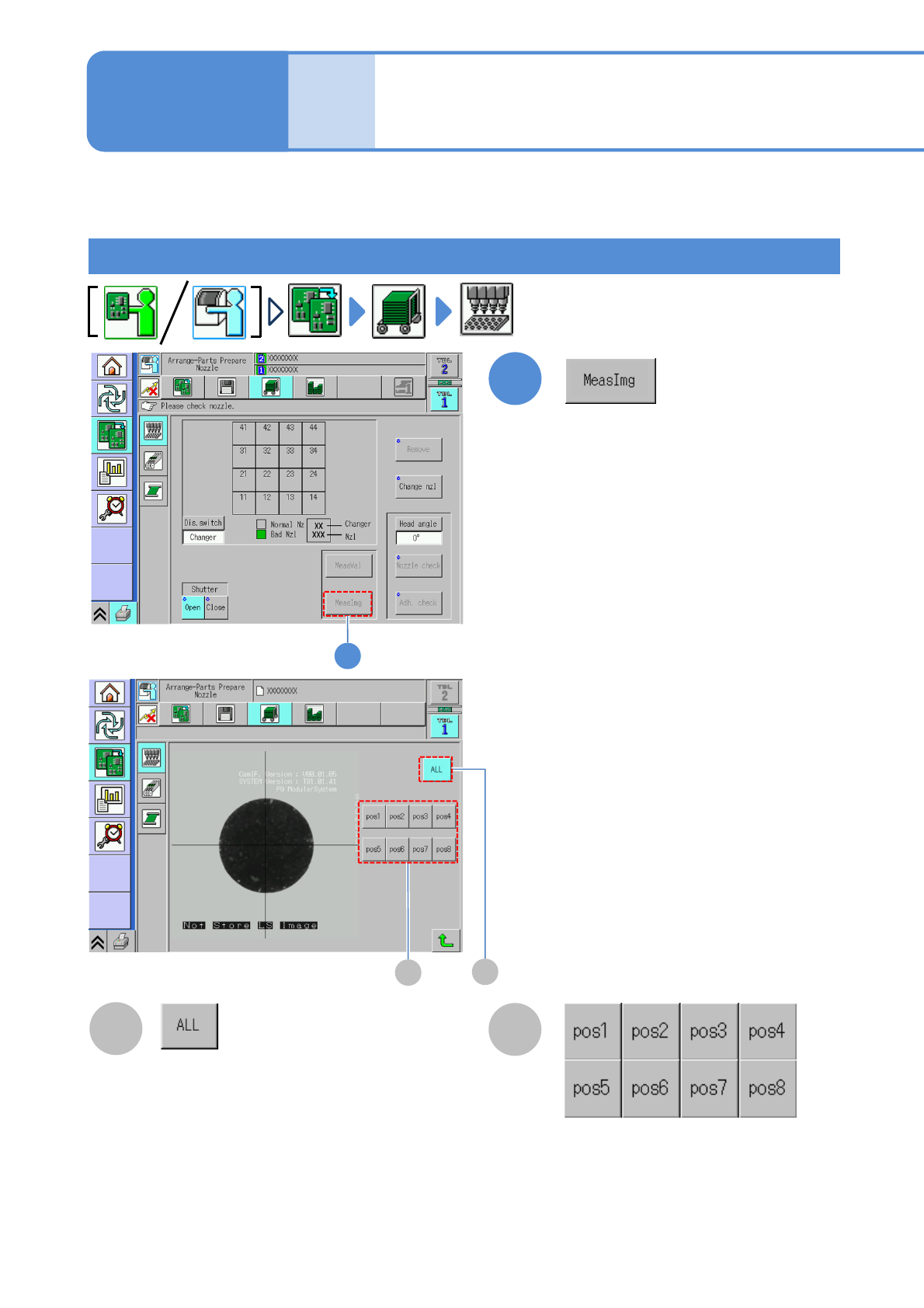

This is used to display the recognition image captured during a nozzle check.
You need to carry out a [Nozzle check] to display the measurement screen.
The screens for 8-nozzle heads are used here as an example to illustrate; however, the same procedure is
also applicable to 3-nozzle heads.
Nozzle setting (measurement image) screen
Displays the image of the overall head.
The enlarged image at each nozzle position
is displayed.
<MeasImg> screen:
Displays the recognition image that was
displayed when the nozzle setting was
checked on the <Attachment> screen.
B
A
NPM-TT2 EJM1EE-MB-02O-04
2-5-2-6
Preparation
1
1
A B C D E F

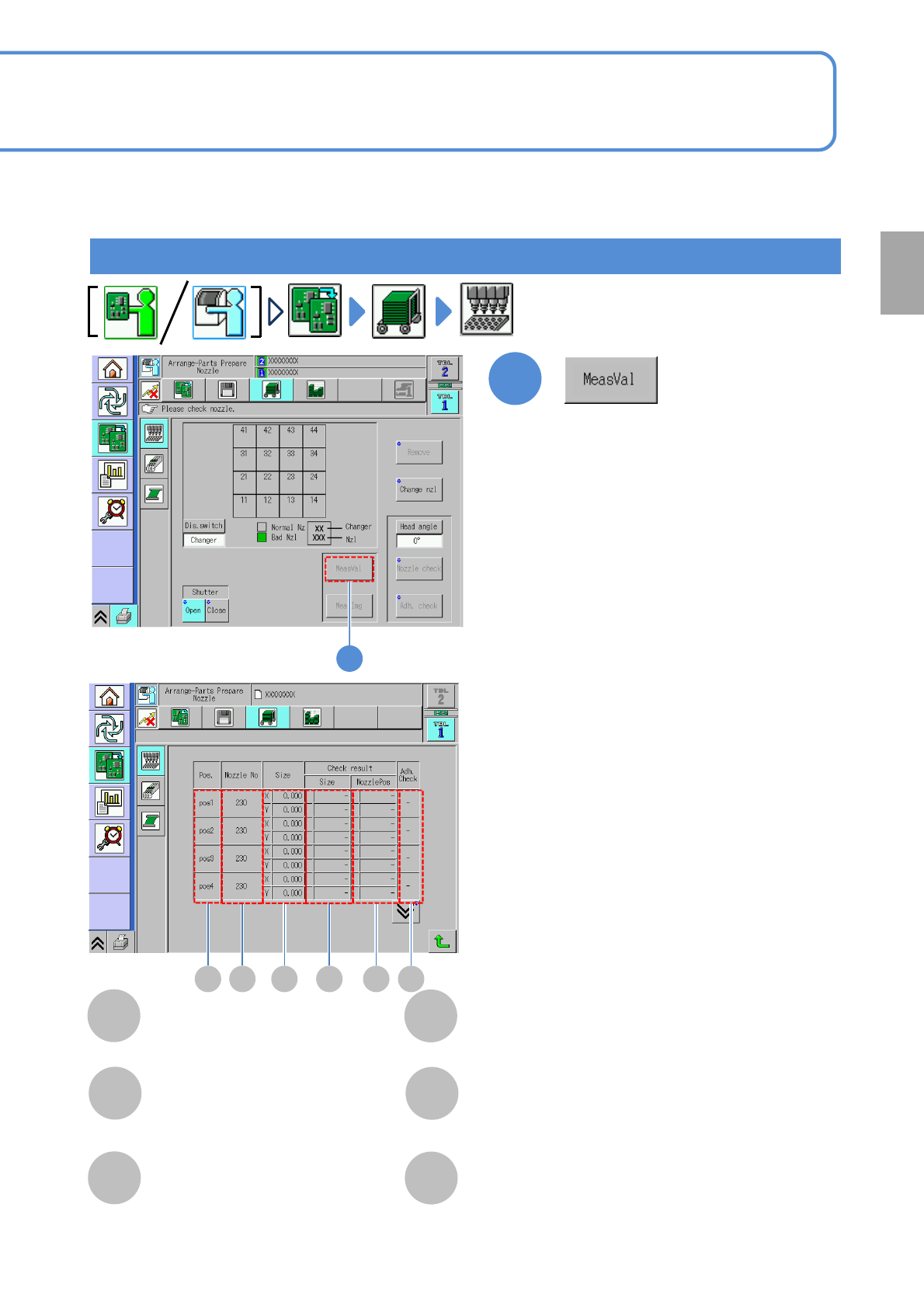

Nozzle setting (measurement value) screen
This is used to display the measurement value obtained when the nozzle check was carried out to check
the nozzle and its adherents.
The screens for 8-nozzle heads are used here as an example to illustrate; however, the same procedure is
also applicable to 3-nozzle heads.
<Measurement value> screen
The nozzle position
Pos.
B
The nozzle number
Nozzle No
C
The nozzle size In mm
Size X, Size Y
D
E
The nozzle size measured during nozzle check
In mm
Check result Size X, Size Y
F
The nozzle position offset measured during nozzle
check In mm
Check result NozzlePos X, NozzlePos Y
OK: No adherents
NG: With adherents
-: Not measured
Adh Check
A
