NPM- TT2 EJM1EE-MB-02 O-04 ACTIVATION ACTIVATION 2-5-3 -1 1 After removing PCBs 2 3 Cover the line camera with the lint-free cloth Individu- al prepara- tion Operating procedure 2-5-3 ● The PCB suppo rt block raises Deta…
NPM-TT2 EJM1EE-MB-02O-04
2-5-2-8
Preparation
D
E
Material
F
The barcode-scanned nozzle serial number
‘- - -(Hyphen)’:
Yet to be measured
Failed to read
Serial
The barcode-scanned extra nozzle information
‘- - -(Hyphen)’:
Yet to be measured
Failed to read
Other information
The barcode-scanned nozzle material
‘- - -(Hyphen)’:
Yet to be measured
Failed to read
NPM-TT2 EJM1EE-MB-02O-04
ACTIVATION
ACTIVATION
2-5-3-1
1
After removing
PCBs
2 3
Cover the line
camera with the
lint-free cloth
Individu-
al
prepara-
tion
Operating procedure
2-5-3
●The PCB support block
raises
Detach the tray
feeder or the feeder
cart
●For a tray feeder
(→[Maintenance] P.14-8)
●For a feeder cart
(→[Maintenance] P.3-2)
OFF
SERVO
5
4
7
6
●Only for the exchange cart
Hold the feeder
table cover to
the back
●Only for the exchange cart
●Only for the exchange cart
Setting support pins 1
NPM-TT2 EJM1EE-MB-02O-04
2-5-3-2
8

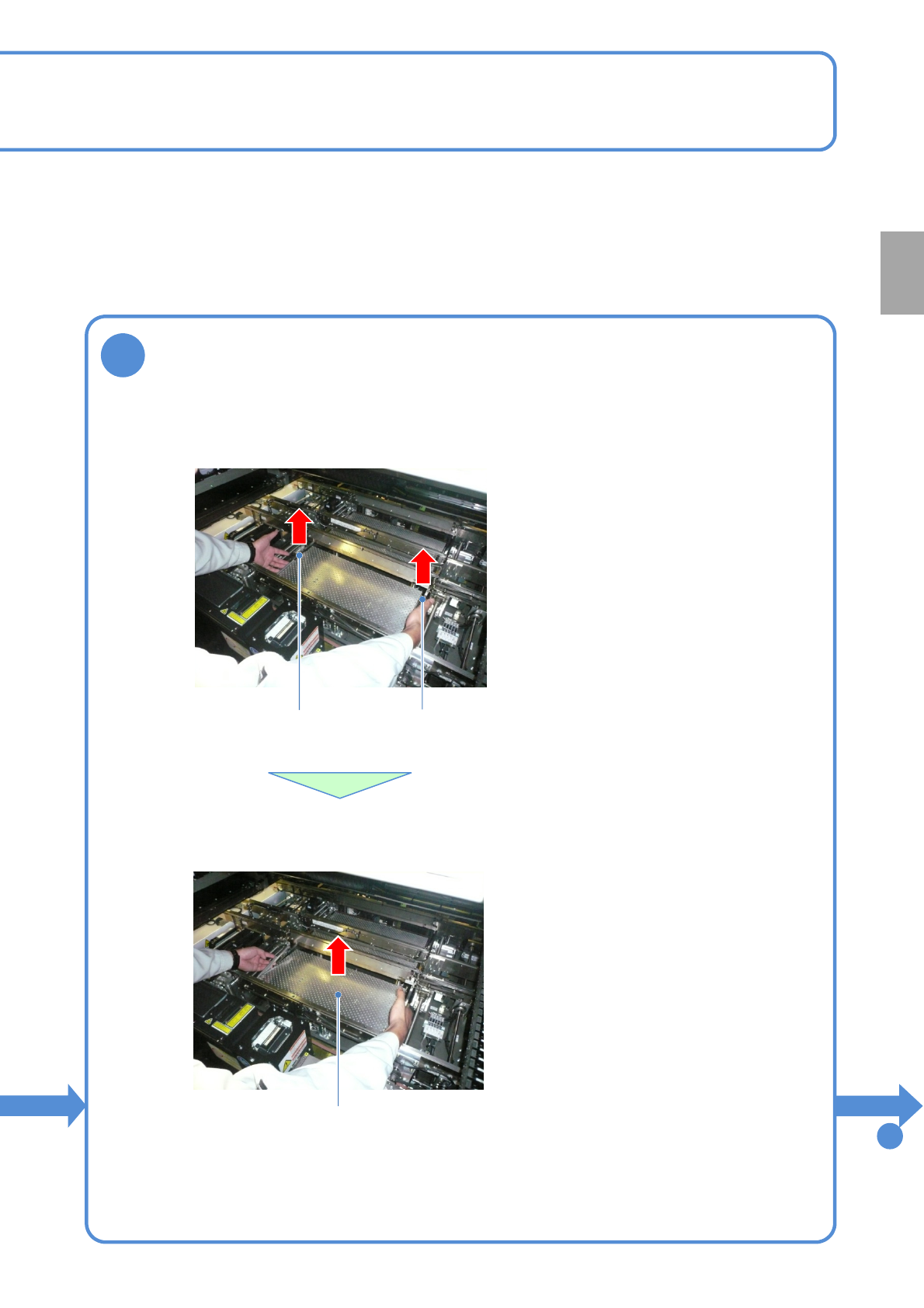

Remove the PCB support blocks
Removal lever
●Draw out the PCB support block.
●Draw it out slowly with both hands.
●Be careful not to drop a foreign body on
the line camera (LED lighting) or bump it.
●Remove both lane as the same way.
PCB support block
●Lift up the right and left levers in the front.
Removal lever
To
9
Preparation
