NPM- TT2 EJM1EE-MB-02 O-04 Installing suppor t pins (f or automa tic change) 5 Operating procedure 2-5-7 2-5-7 -9 Individu- al prepara- tion Checking the setting position of support pins 2 ■ In the absence of a support p…
NPM-TT2 EJM1EE-MB-02O-04
2-5-7-8
Checking the setting position of support pins 1
1
+
Inadvertently moving a support pin(s) by hand while in the process of removing a PCB, a support pin(s) being
misaligned due to the impact of the machine, etc., or decreasing/increasing a support pin(s) in the production
process may cause the support pins that are arranged in the production data to differ in number from those
actually being present in the machine.
Check the setting position of support pins once a week.
(Confirms the status of support pins
displayed on the screen)
Continue on production.
■When the pin status displayed on the
screen dose not reflect the actual state
of the support pins set in the machine
■When it completes successfully,
2
2
Preparation
1
NPM-TT2 EJM1EE-MB-02O-04
Installing support pins
(for automatic change) 5
Operating procedure
2-5-7
2-5-7-9
Individu-
al
prepara-
tion

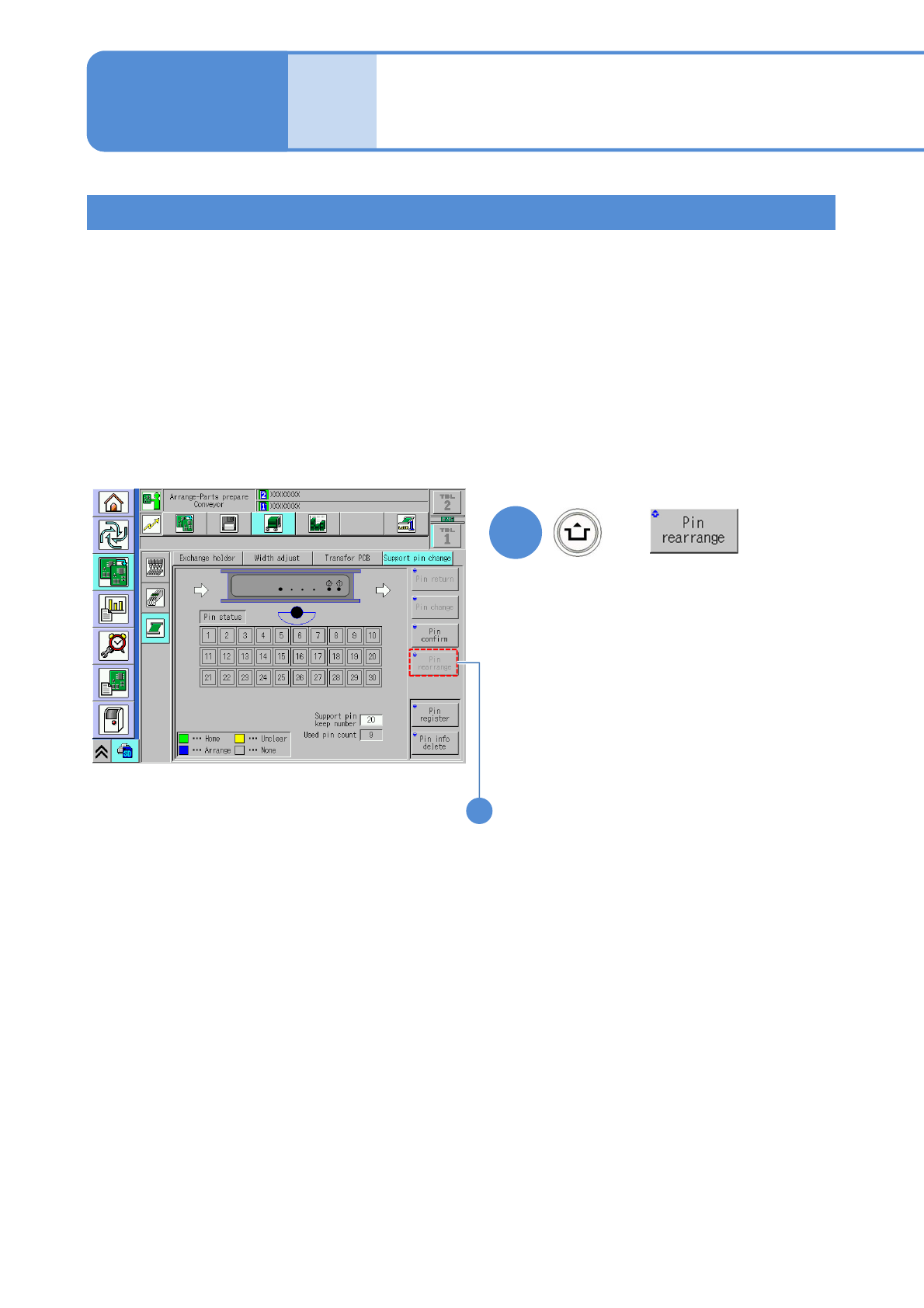

Checking the setting position of support pins 2
■In the absence of a support pin
whose status is displayed as Unclear
on the screen
Rearrange the support pins
■In the presence of a support pin
whose status is displayed as Unclear
on the screen
Return all the support pins to the home
position by hand, and start again from
the beginning of “Checking the number of
support pins.” （→P2-5-7
-6）
+
(Only the pins in the wrong position will
be rearranged)
3
3
NPM-TT2 EJM1EE-MB-02O-04
2-5-7-10
PCB size and the number of pins that can be retracted
The machine determines the number of pins to be retracted according to the size of the PCB used, and the
pins not used in production can be automatically retracted within the limits of the number specified by the
following table.
When setting support pins to the home position, make sure to set the correct number of the support pins
based on the number of the pins that are arranged in the production data and also the number of the ones
that can be retracted.
(The more the number of the pins that can be retracted, the longer the time to change pins)
Preparation
● Allowable number of support pins PCB dimension: PC size Dual conveyor (standard)
●Allowable number of support pins PCB dimensions: M size Dual conveyor (option)
を超え 50 63 79 95 111 127 143 159 175 191 207 223 239 255 271 287 303 319 335 351 367 383 399 415 431 447 463 479
以下 63 79 95 111 127 143 159 175 191 207 223 239 255 271 287 303 319 335 351 367 383 399 415 431 447 463 479 510
以上 未満
50 53 2726252423222120191817161514131211109876543210
53 69 28 26 24 22 20 18 16 14 12 10 8 6 4 2 0
69 85 27 24 21 18 15 12 9 6 3 0
85 101 28 24 20 16 12 8 4 0
101 117 25 20 15 10 5 0
117 133 24 18 12 6 0
133 149 28 21 14 7 0
149 165 24 16 8 0
165 181 27 18 9 0
181 197 20 10 0
197 213 22 11 0
213 229 24 12 0
229 245 26 13 0
245 261 28 14 0
261 277 30 15 0
277 293 16 0
293 309 17 0
309 325 18 0
325 341 19 0
341 357 20 0
357 373 21 0
373 389 22 0
389 405 23 0
405 421 24 0
421 437 25 0
437 453 26 0
453 469 27 0
469 485 28 0
485 501 29 0
501 510 0
L
W
を超え 50 63 79 95 111 127 143 159 175 191 207 223 239 255 271 287 303 319 335 351 367 383 399 415 431 447 463 479
以下 63 79 95 111 127 143 159 175 191 207 223 239 255 271 287 303 319 335 351 367 383 399 415 431 447 463 479 510
以上 未満
50 53 2726252423222120191817161514131211109876543210
53 69 2826242220181614121086420
69 85 2724211815129630
85 101 2824201612840
101 117 25 20 15 10 5 0
117 133 24 18 12 6 0
133 149 28 21 14 7 0
149 165 24 16 8 0
165 181 27 18 9 0
181 197 20 10 0
197 213 22 11 0
213 229 24 12 0
229 245 26 13 0
245 261 28 14 0
261 277 30 15 0
277 293 16 0
293 309 17 0
309 325 18 0
325 341 19 0
341 357 20 0
357 373 21 0
373 389 22 0
389 405 23 0
405 421 24 0
421 437 25 0
437 453 26 0
453 469 27 0
469 485 28 0
485 501 29 0
501 590 0
L
W
