NPM- TT2 EJM1EE-MB -02O-04 When using proven productio n history data , a series of prep arat ion works can be perfo rmed successively. ● For individual prepar ation (→P.2-3-2 to P.2-5-5) 1 Perform each task in sequence …
NPM-TT2 EJM1EE-MB-02O-04

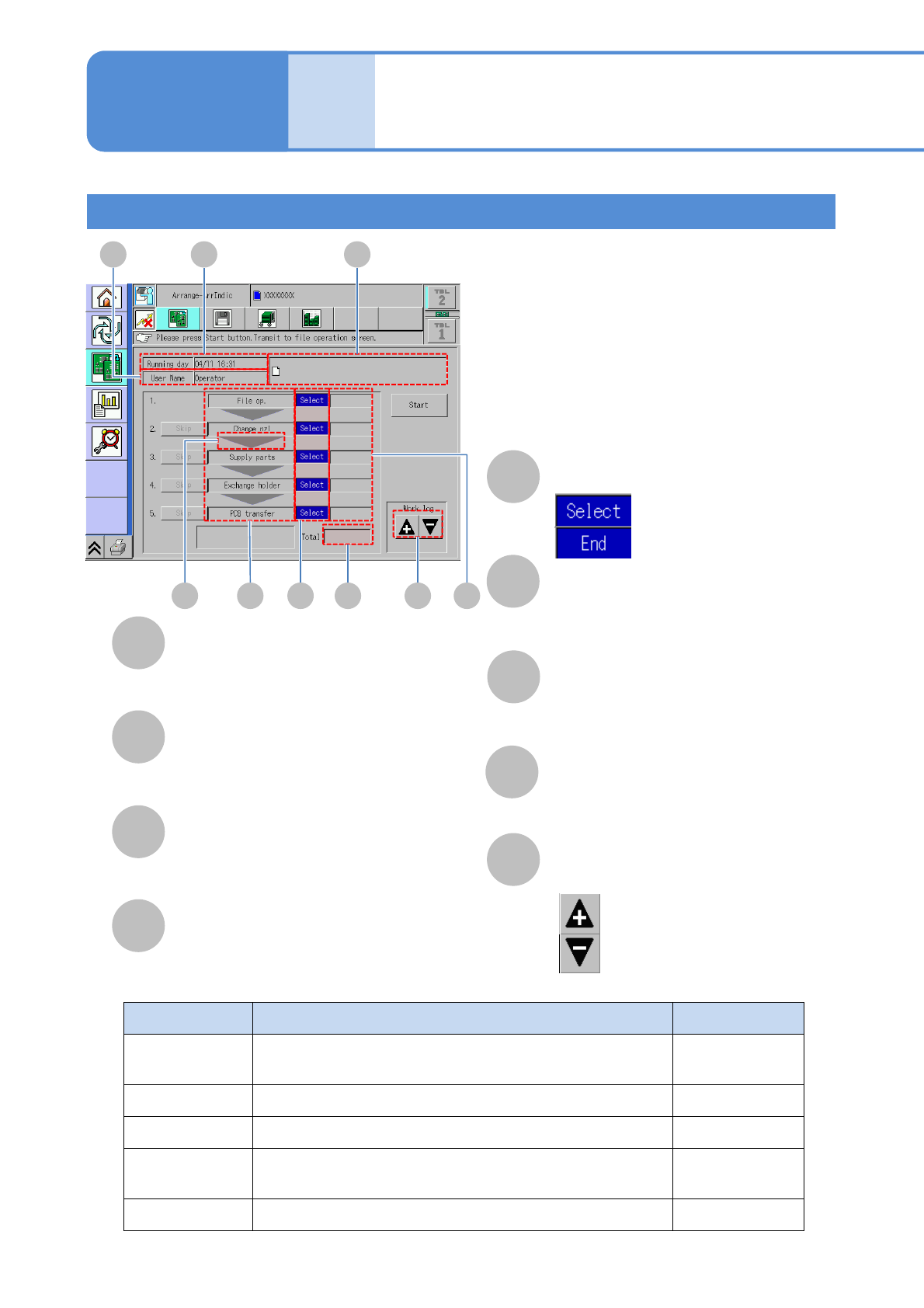

How to view screen
2-6-1
F
H
l
A
E
B
C
D
Task name Descriptions Reference page
File op.
Loads or saves production data during production
changeover.
P.2-3-2 to 2-3-6
Change nzl Exchanges or cleans nozzles. P.2-5-2
Supply parts Attach feeders. P.2-4-1 to 2-4-5
Exchange
holder
Replace the holder. P.2-5-3
PCB transfer Tests the transfer of PCBs. P.2-5-5
■Descriptions of each task
Continuous preparations
Operating procedure
2-6
Running day
Work start date.
User Name
Operator’s name.
Lot name
The name of the lot of loading production
data or history data.
Work descriptions
Descriptions of the work to be executed.
Work condition
: planned
: done
Operating time
Time required for each preparation.
G
Tota l
Total time required for preparation.
Next work arrow
Descriptions of an upcoming work.
Work log: History of continuous
preparations
: the most recent history
: the past history
AB C
D GE I FH
NPM-TT2 EJM1EE-MB-02O-04
When using proven production history data, a series of preparation works can be performed successively.
●For individual preparation (→P.2-3-2 to P.2-5-5)
1
Perform each task in sequence
1
■To discontinue preparation
■To proceed to the next task
(Press [Yes] to return to the
Continuous preparation screen)
(The next preparation screen is displayed
in five seconds)
■To skip a task
●Press it again to cancel.
■To suspend preparation
●Press [Restart] to cancel.
●Skip settings is alterable even under
suspension.
2-6-2
2
2
(For details, see )
D
Preparation
NPM-TT2 EJM1EE-MB-02O-04
Production plan
(Setting the production count)
This allows you to set the planned volume during automatic operation.
In addition, you can calculate and display the consumption of components relative to the planned volume
in advance.
2-7-1
A
Loading count
Clears the loading count to
zero.
B
Displays the required component points
for the set count. (→P.2-7
-2)
Operating procedure
2-7
C
Displays the PCB count to be loaded.
1
3
2
2
Enter ‘ProdSchedule.’
A
3
B
1
Select a lane
: Lane 1
C
: Lane 2
●
Input range: 0 to 99999
●The setting of ‘0’ enables continuous
production without interrupting
automatic operation.
