NPM- TT2 EJM1EE-MB-03 O-02 Produc- tion Pr oduction star t 1 Starting production 3-1-1 -1 Operating procedure 3-1-1 Describes how to start production . It is the operator’s daily task. Check that the emergency stop switc…
3 Production
NPM-TT2 EJM1EE-MB-03O-02
Produc-
tion
Production start 1
Starting production
3-1-1-1
Operating procedure
3-1-1

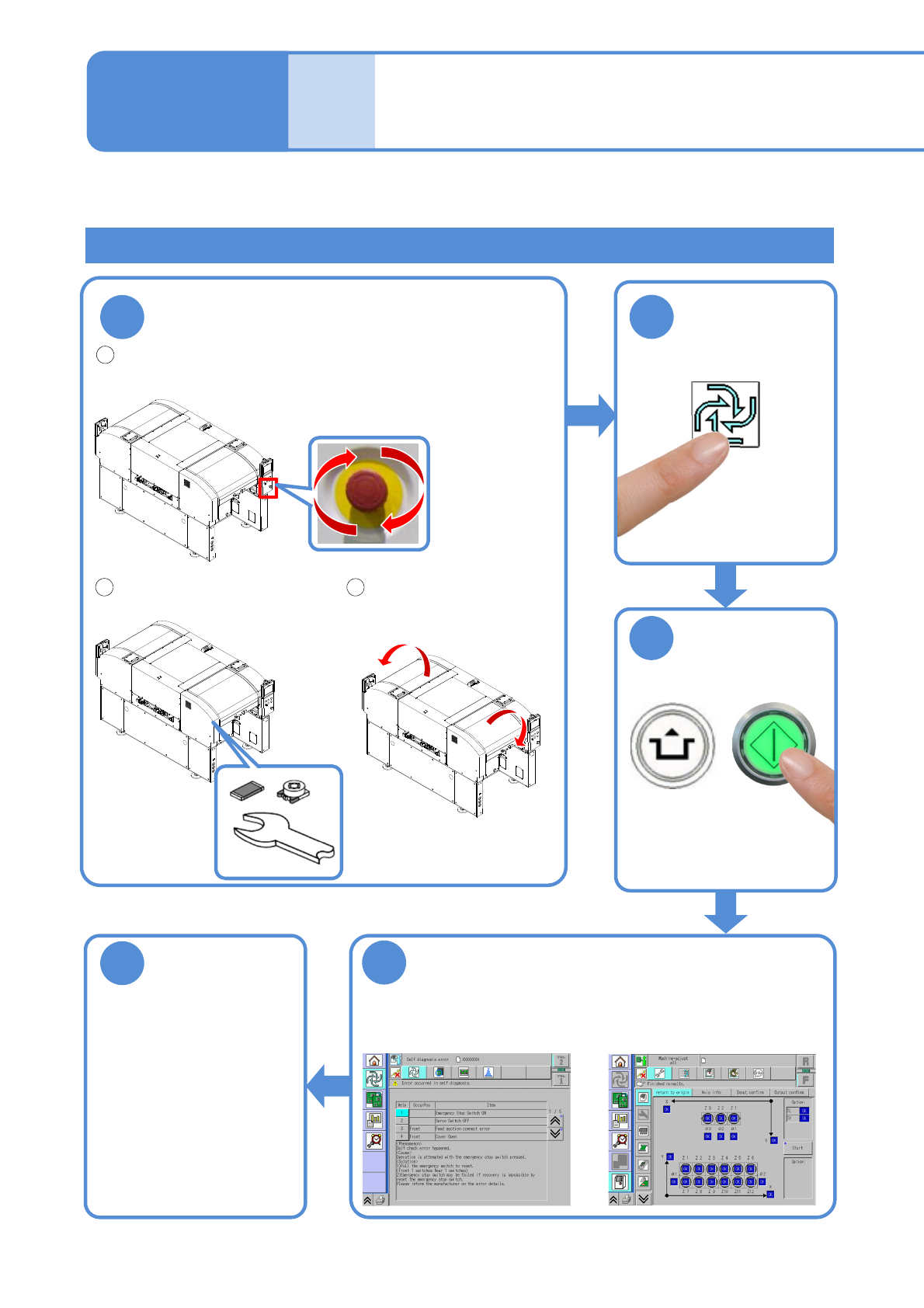

Describes how to start production. It is the operator’s daily task.
Check that the emergency stop switch is released.
●To release, make sure that danger or
abnormality is removed, and then turn the
switch to the right.
1
Check before operation
Check that there is no foreign
matter on the conveyor or the
feeder table.
5
Self-diagnosis is conducted
4
■For abnormal case
Abnormal items are displayed .
(→P.3-1-1
-2)
■For normal case
Origin return is carried out.
Check that the front and
rear safety covers are
closed.
2
3
Start production
START
1
2
3
Production
start
■For alternate mode
For independent mode
(→P.3-1-1
-2)
ACTIVATION
NPM-TT2 EJM1EE-MB-03O-02

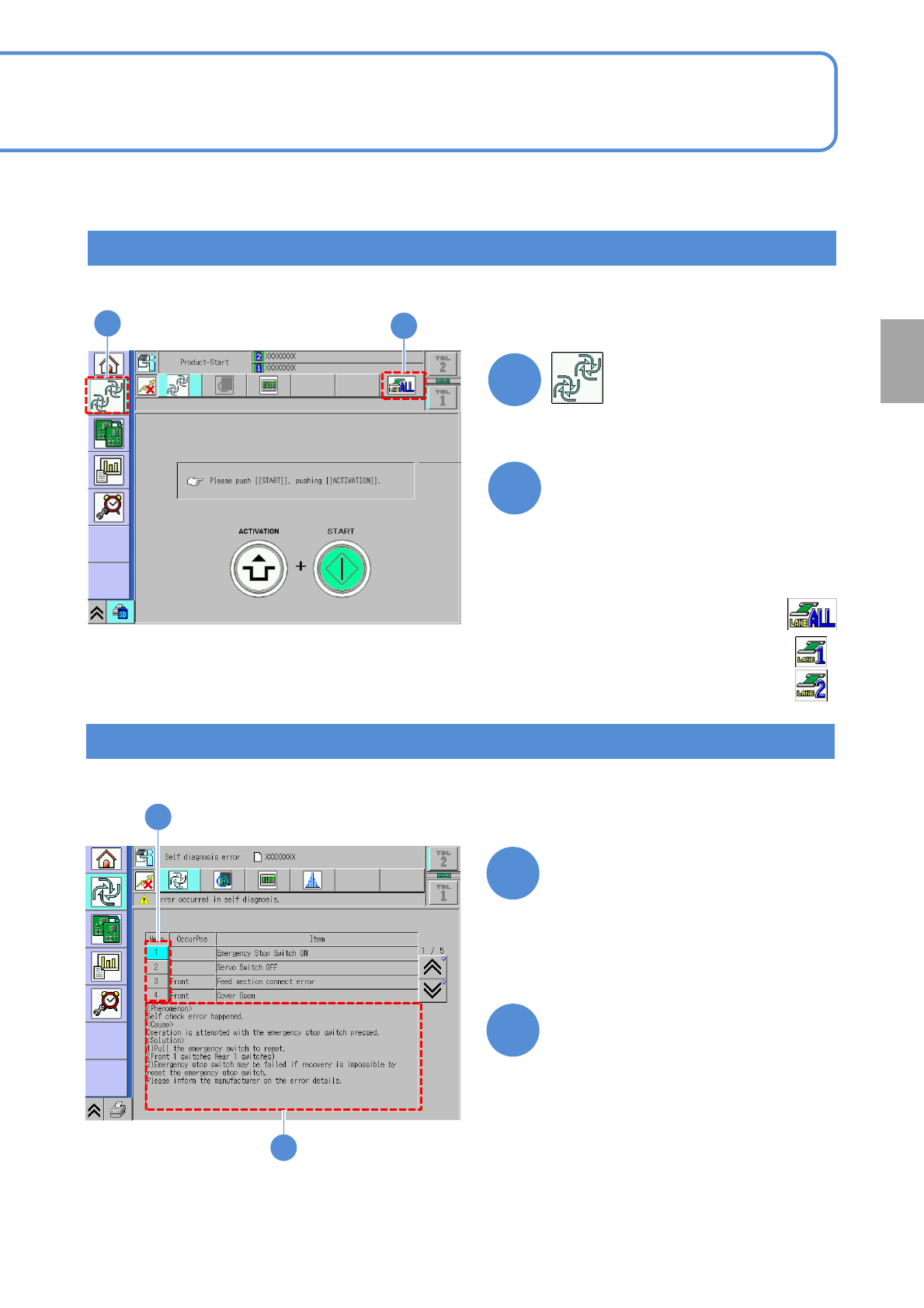

When errors are found by self-diagnosis
1
2
1
Choose the item
(The modification method is displayed)
2
Modify error as instructed
3-1-1-2
For independent mode
1
(The independent mode is displayed)
2
Select a lane
To start production in front and
rear lanes:
To start production only in lane 1:
To start production only in lane 2:
●When PCBs are produced on
the opposite-axis side lane
that the feeder cart is
detached (→P.3-1-1
-3)
Production
2
1
