NPM- TT2 EJM1EE-MB-03 O-02 Produc- tion Operating procedure 3-1-3 3-1-3 Resume production after error stop This s ection des cribes ho w to re sume pr oduction in th e case of erro r oc currence. ● The error stop screen …
NPM-TT2 EJM1EE-MB-03O-02
OFF
Production
3-1-2-2
■For automatic operation
3
●Production ends when the machine completes the last piece
after receiving a signal from the upstream equipment, and then
you go back to the main menu screen.
Ends production
1

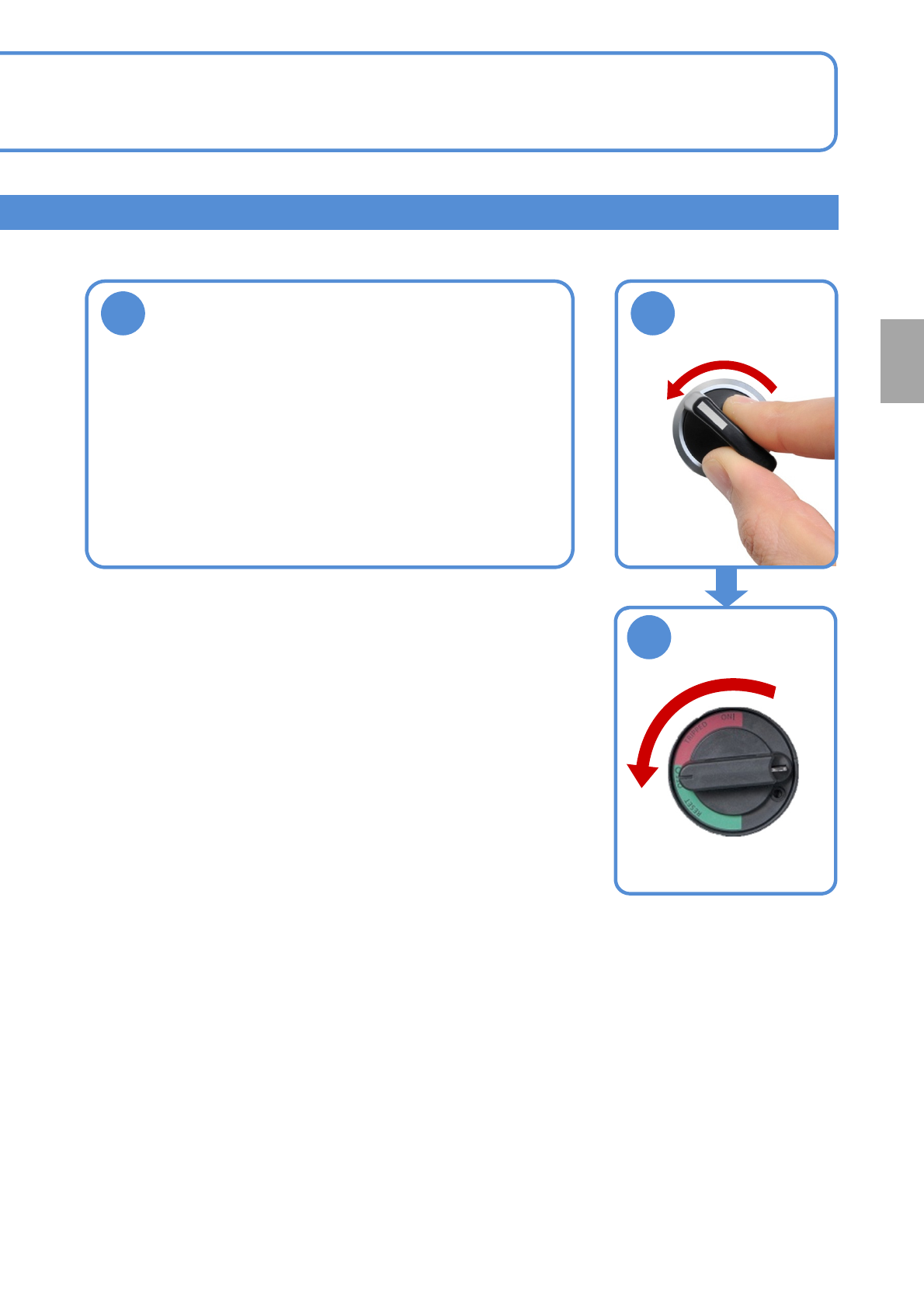

■To turn off the machine
OFF
SERVO
2
NPM-TT2 EJM1EE-MB-03O-02
Produc-
tion
Operating procedure
3-1-3
3-1-3
Resume production after error stop
This section describes how to resume production in the case of error occurrence.
●The error stop screen is displayed during production.
1
1
+
2
3
2
Confirm error information and
help and take measures
3
(Production resumes for the lane
enabled production)
After error occurrence, the
error stop screen is displayed
Error stop and resume
NPM-TT2 EJM1EE-MB-03O-02
3-1-4
Production
Produc-
tion
Placement mode
Operating procedure
3-1-4
Feature
■Alternate mode
●The head moves
alternatively and performs
production.
●Each head produces PCB
on the front and rear lane.
●The head moves
alternatively and after
production of the target
lane completes, it
produces PCB on the other
lane.
■Alternate front (rear) mode ■Independent mode
●Using the front and rear heads,
only PCBs on the front (rear) lane
are produced, and PCBs on the
rear (front) lane are passed through.
●Each head independently
carries out production for
PCBs on each head.
Front head: Front lane
production
Rear head: Rear lane
production
●It minimizes the PCB
transfer loss.
●Production start and stop are
applicable per lane.
●Production start and stop
is applicable per lane.
●It improves productivity
because the head does not
need to wait for head
alternative motion (waiting
for motion of the other
head.
Changeover
●You need to stop the
machine to carry out
changeover for each lane.
●Changeover (changing the
production data or the feeder cart,
or replacing the tray magazine) is
applicable for the suspended lane
while PCBs are passed through.
●Changeover (changing the
production data or
replacing the feeder cart
or the tray magazine) is
applicable for the
suspended lane during
one-side production.
*1)Head standby may arise depending on the PCB size.
*1)
If machine specification is dual lane mode, you can select from the following modes for production.
