NPM- TT2 EJM1EE-MB-03 O-02 Feeder arrangement information Operating procedure 3-2-1 H I 3-2-1 -13 Produc- tion informa- tion ● Feeder infor mation arranged on the supply unit is disp layed. A ADR (address) C D E F FeedPi…
NPM-TT2 EJM1EE-MB-03O-02
3-2-1-12

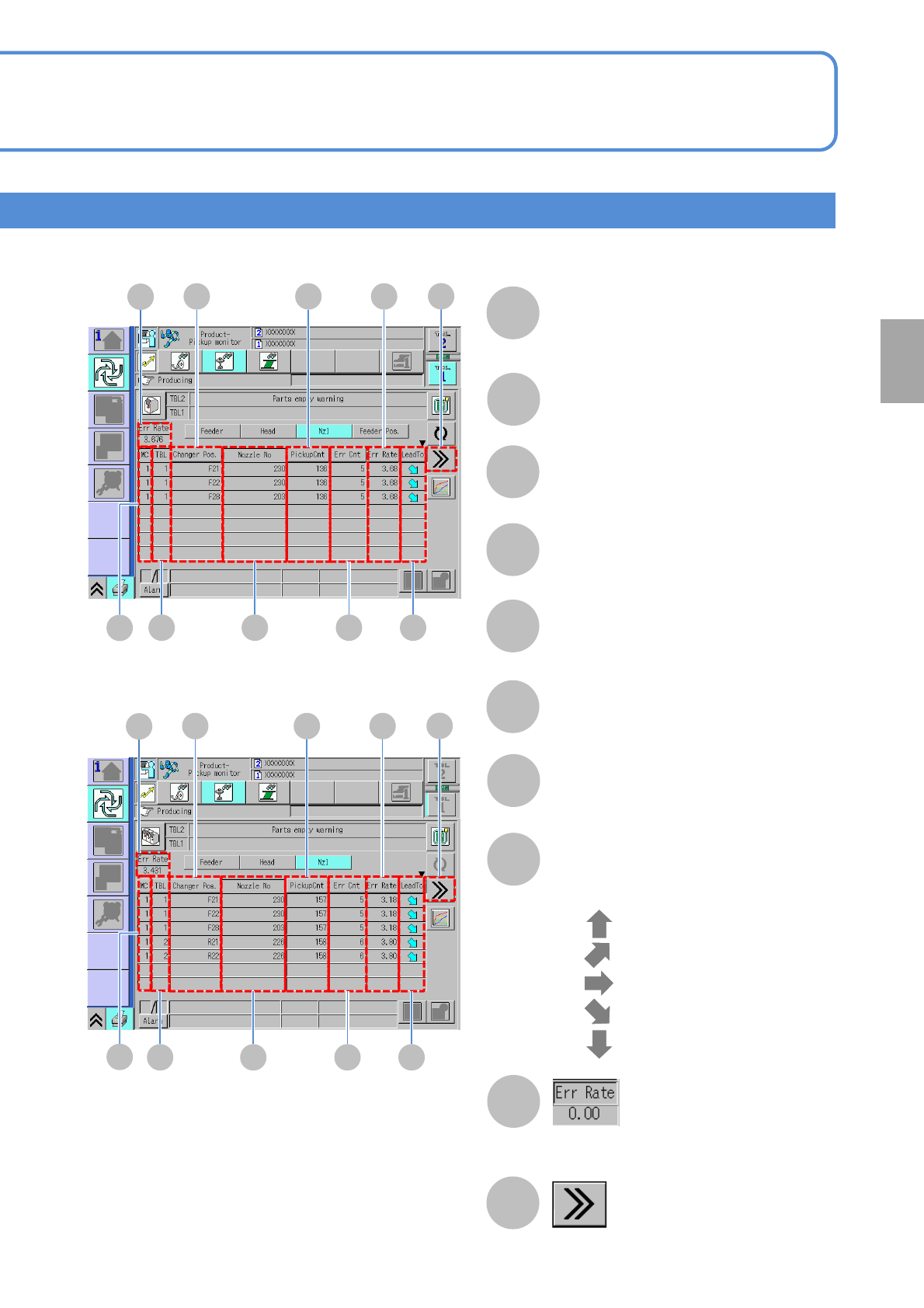

■By machine
TBL (table)
Table to be referred.
PickupCnt
Err Cnt
Err Rate
Displays detailed pickup information.
■By line
Changer Pos.
Nozzle position in the nozzle changer
on the selected table.
Nozzle No
Displays the error rate per machine or per
line.
LeadTo
Displays increase or decrease tendency
of the error rate with arrow icons.
●
●
●
●
●
: Ultra up tendency
: Up tendency
: Constant tendency
: Ultra down tendency
: Down tendency
Production
F
G
H
I
J
K
L
M
N
E
HF
KI
J
G
N
M
L
HF
KI
J
G
N
M
L
E
E
MC (Machine)
The machine numbers that are assigned
to machines organized into a line and
that start at the head of the line.
NPM-TT2 EJM1EE-MB-03O-02
Feeder arrangement information
Operating procedure
3-2-1
H
I
3-2-1-13
Produc-
tion
informa-
tion
●Feeder information arranged on the supply unit is displayed.
A
ADR (address)
C
D
E
F
FeedPitch
Width
CompName
B
STK
ID number of stock components.
(If there is any stock)
Shows the rest of the component name
by scrolling.
Tape length of one feed.
Tape width.
G
Kind
Tape material type.
FEC D G
Stop production after producing the
current PCB. (→P.3-1-2)
Shows the previous or next
table.
H
I
A B
How to check the screen in
production when stationary
7
Displays the slot number (address) by
which feeders are arranged, and a lane
of the double tape feeder or the thin type
single feeder.
NPM-TT2 EJM1EE-MB-03O-02
3-2-1-14
