NPM-TT2 EJM1EE-MB-03O-02

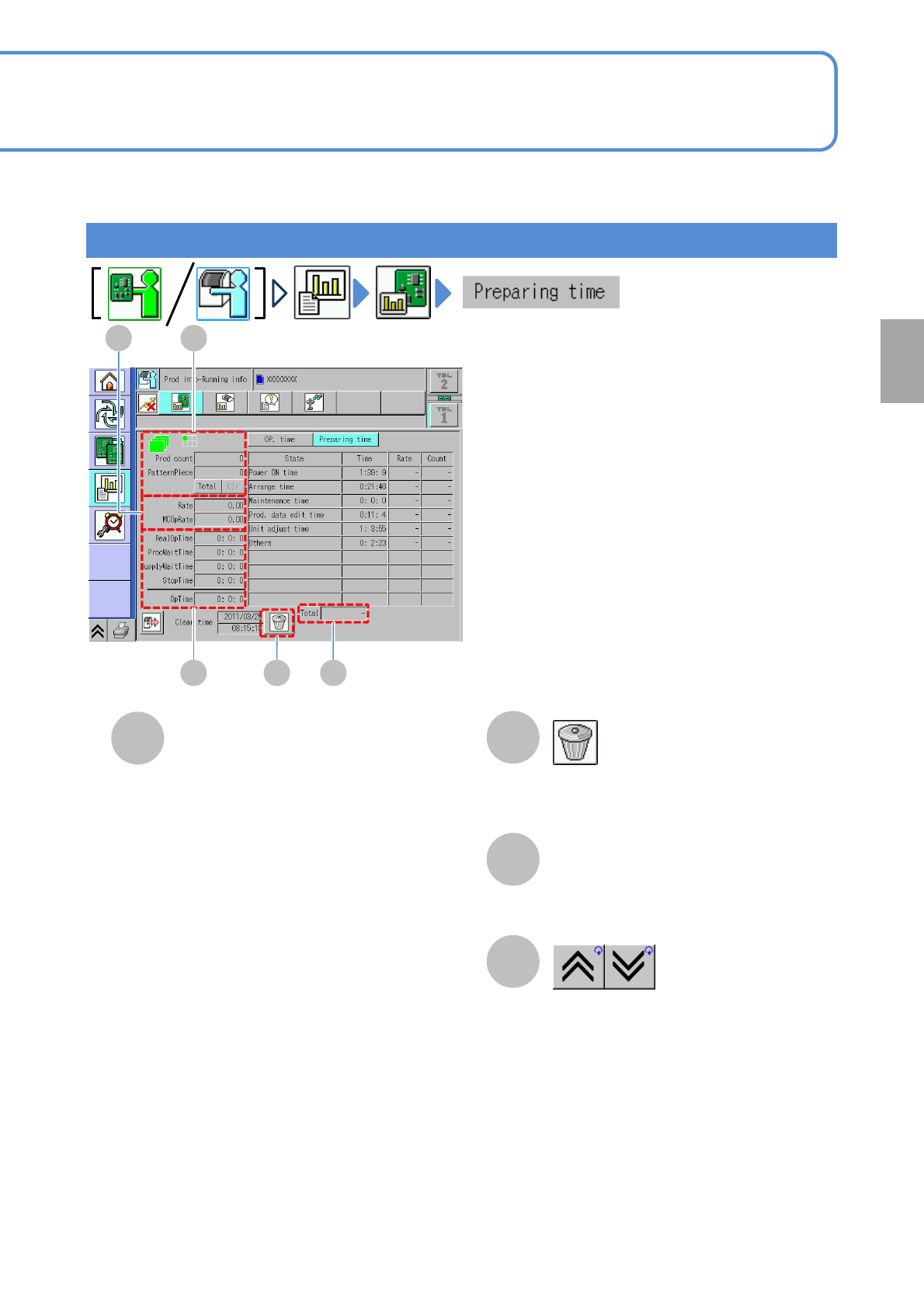

3-2-2-2
B A
ＥＤ
C
Preparation time
Production
C
D
E
F
Operating time
●RealOpTime
■For single lane mode:
Time that previous and next processes
waiting time and stop time caused by error
are subtracted from time in production
mode.
(RealOpeTime
＝OpeTime - Total Stop time)
■For dual lane mode:
me that previous and next processes
waiting time, stop time caused by error
and transfer time are subtracted from time
in production mode.
(RealOpeTime
＝OpeTime - Total Stop time-Transfer
time)
●ProcWaitTime
Preparation time for previous and next
processes.
●SupplyWaitTime
Waiting time for component supply.
●StopTime
Downtime during production.
●OpTime
Time that the machine is in production
mode.
Clears production information.
Total time
Shows the previous or next table.
NPM-TT2 EJM1EE-MB-03O-02
2

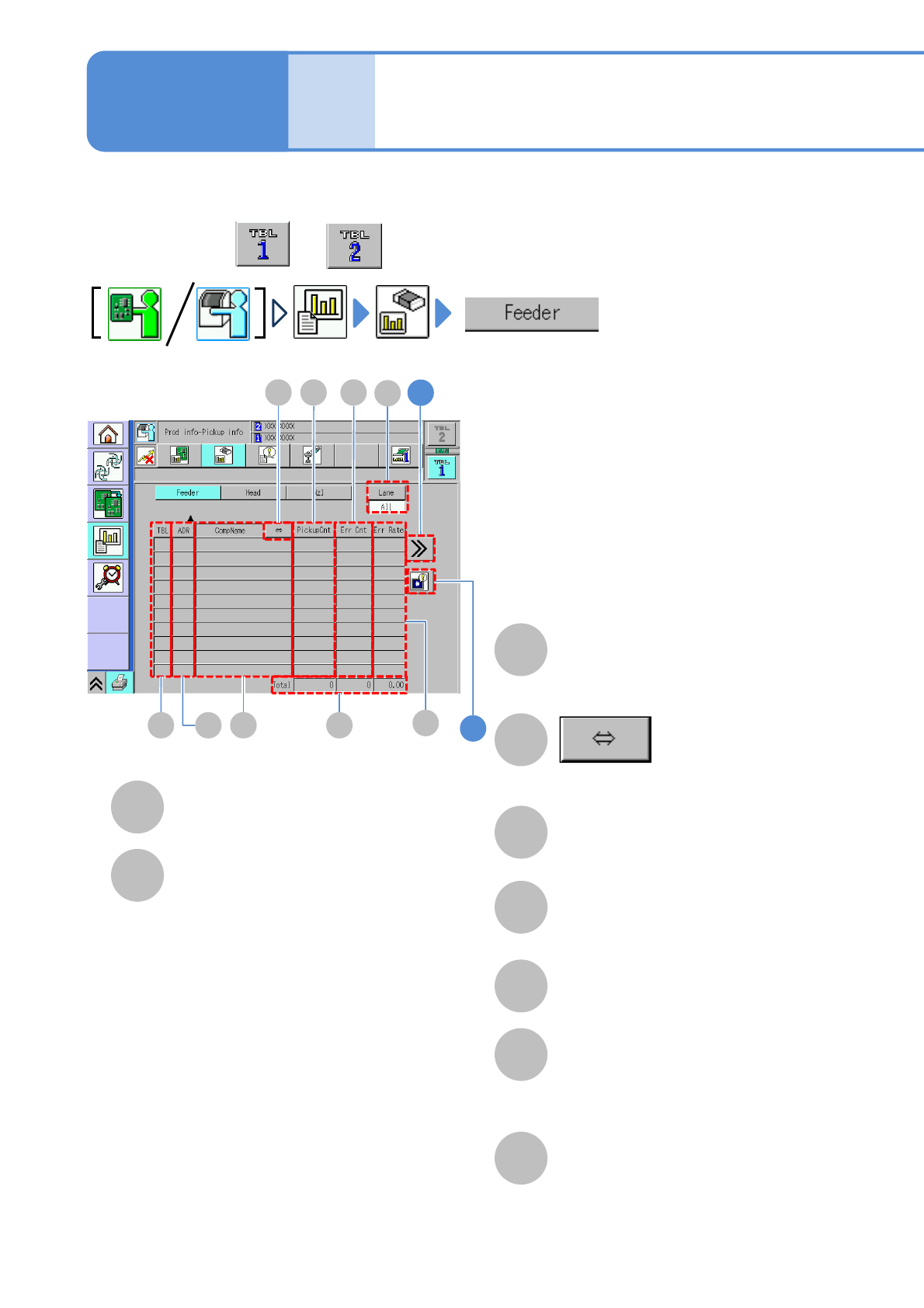

3-2-3-1
C
A
B
D
E
F
G
You can check component pickup information of a feeder per feeder address.
Produc-
tion
informa-
tion
Operating procedure
3-2-3
TBL (table)
Table to be referred.
ADR (address)
Feeder address.
CompName
Component name being
picked up.
Total
Total of pickup count of all feeders and
error count, and error occurrence rate
for total pickup count.
H
E FD
A C HB
Shows the rest of the component name
by scrolling.
PickupCnt
Number of components being picked
up per feeder.
Err Cnt
Number of components resulting in
error
Err Rate
Error occurrence rate for pickup count
Feeder pickup
information 1
●Perform on both and .
1
G
I
Tape / Stick Feeder
●A/B: Tray feeder table
(Only A is available in a single tray
feeder)
● Numerical number: Tray pallet
position number
Tray feeder
I
Lane
Change the display item to “All” or
“Lane”. When you select “Lane”, also
select the lane by the lane change
button.
●Numerical number: Feeder position
number
●R/L/C: Feeder component position
(For double tape feeder, thin type
single feeder)
R(right), L(left),
(For 3-rows stick feeder)
R(right), L(left), C(center)
NPM-TT2 EJM1EE-MB-03O-02

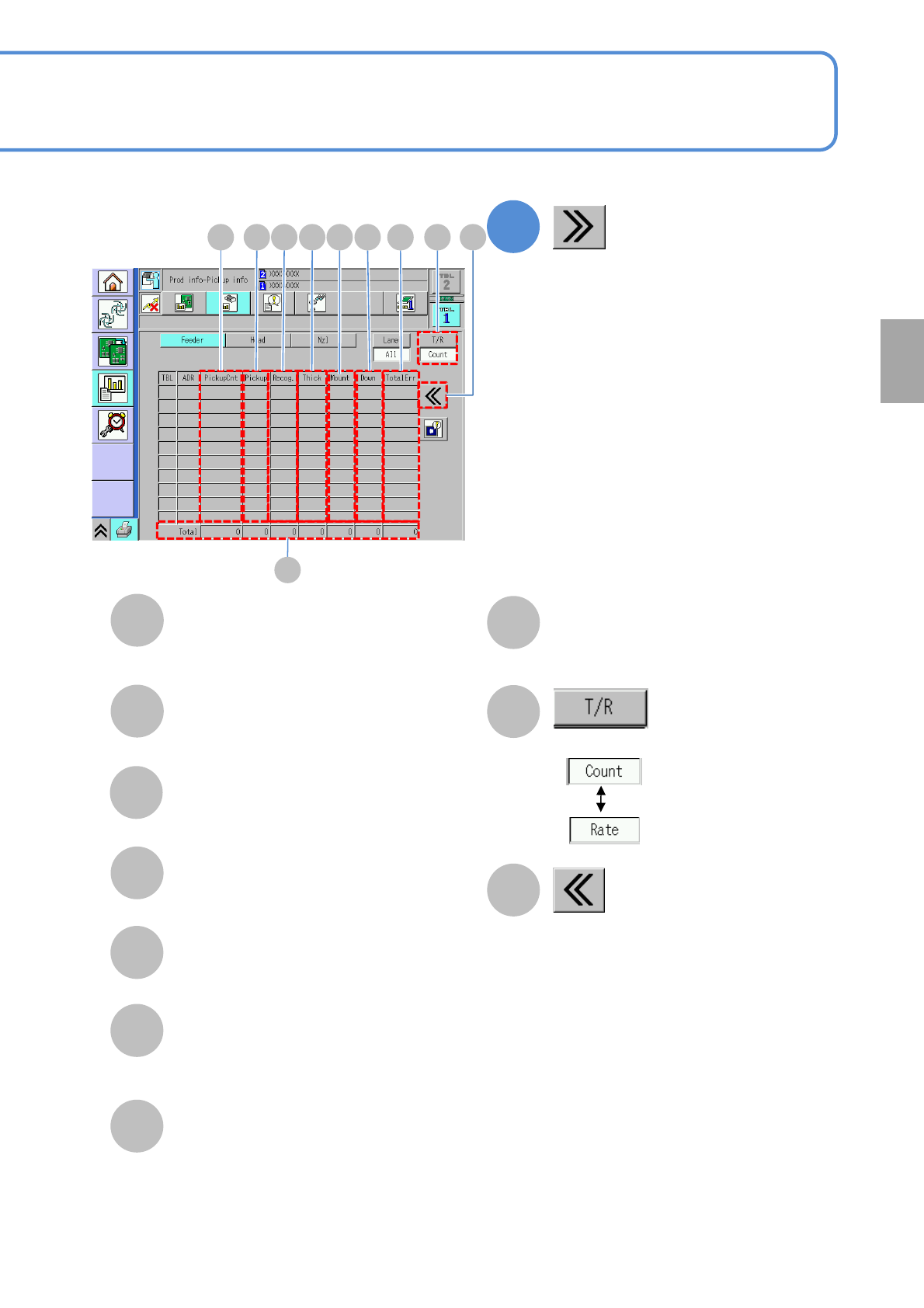

3-2-3-2
A
B
C
D
E
Choose the display type.
Thick
The number/rate of component
thickness errors.
Mount
The number/rate of mounting errors.
G
I
H
Returns to the previous screen.
J
Down
The number/rate of component drop
errors.
F
1
(Error detailed information is displayed)
TotalErr
The number/rate of feeder errors.
Total
The total number/rate of pickup of all
feeders or the total number/rate of errors
for each feeder.
PickupCnt
The number/rate of pickup of feeder.
Pickup
The number/rate of pickup errors.
Recog.
The number/rate of recognition errors.
A C F GB D
H
JIE
Production
