NPM- TT2 EJM1EE-MB -03O-02 Produc- tion informa- tion Operating procedure 3-2-4 You can c heck component pic kup inform ation of a nozzle per head. 3-2-4 -1 Head pic kup inf or ma tion 1 C A B TBL (table) A table referre…
NPM-TT2 EJM1EE-MB-03O-02
3-2-3-4
Production
7

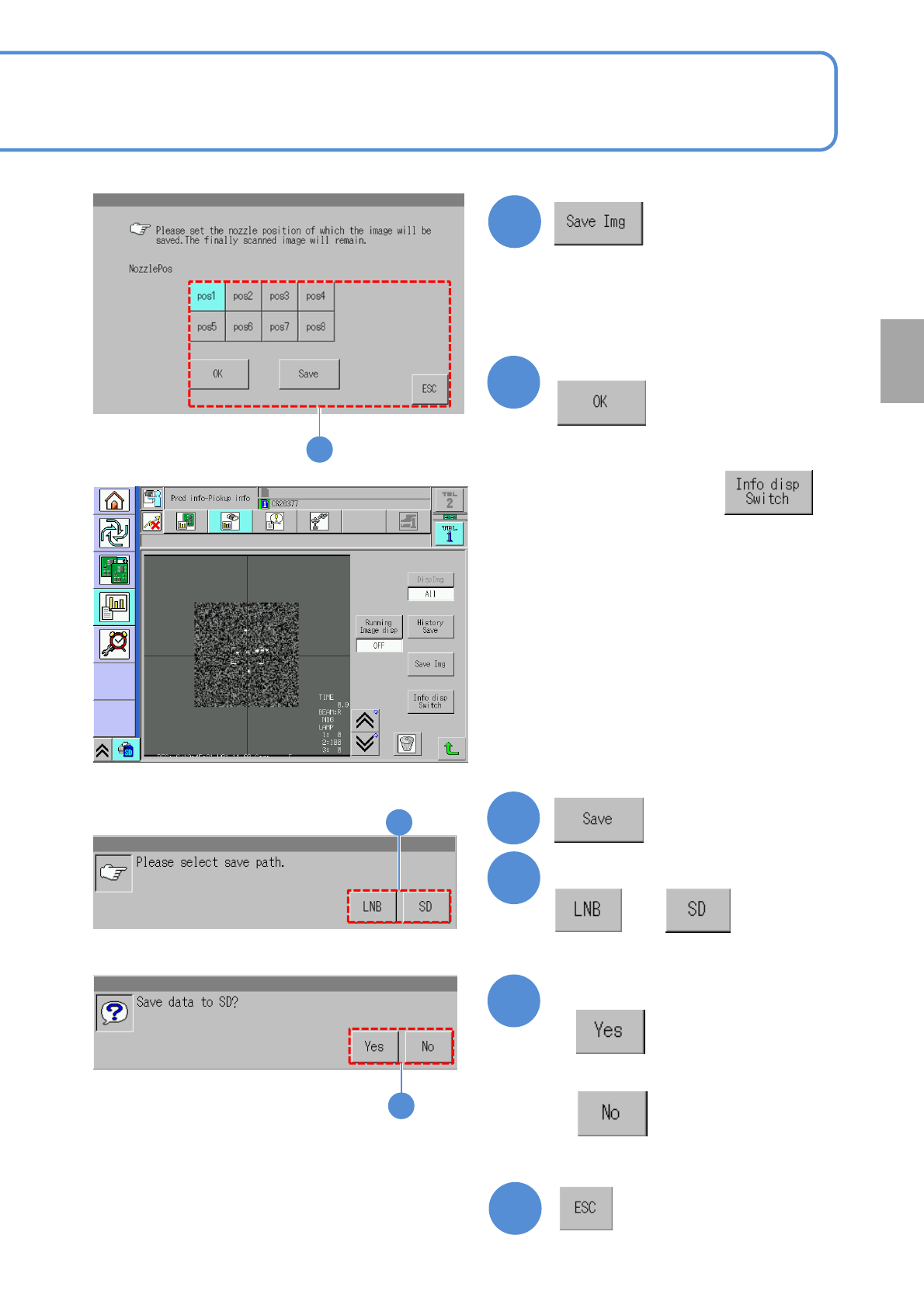

■To check the data
8
(The recognition error image is displayed)
■To save the data
8
9
10
Confirm the message
or
Confirm the message
●When you do not save the data
■To cancel
8
9
10
●You can check the image per nozzle
resulting in error and save the data.
Select the nozzle position
8
● If necessary, press to
hide the recognition result.
NPM-TT2 EJM1EE-MB-03O-02
Produc-
tion
informa-
tion
Operating procedure
3-2-4

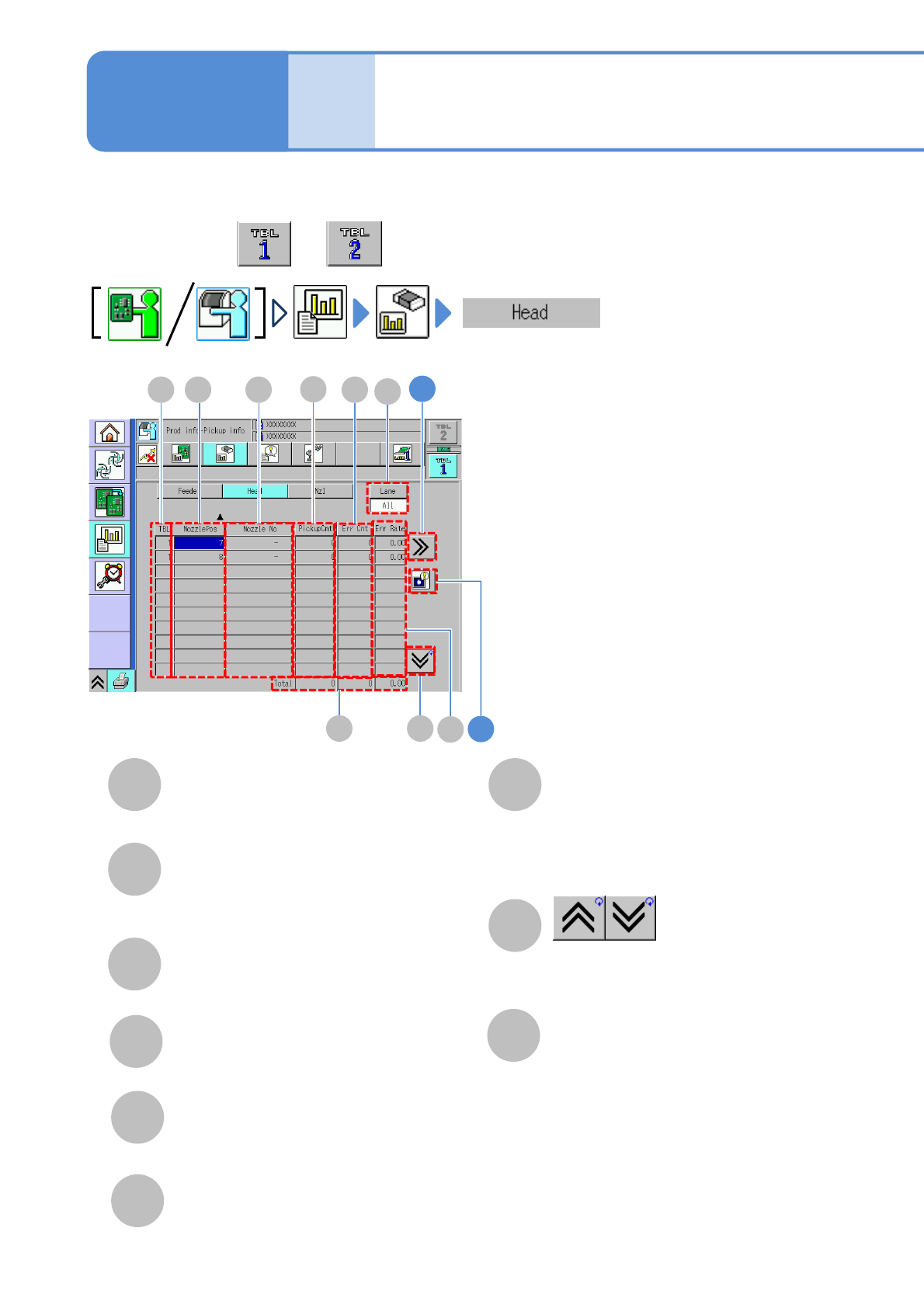

You can check component pickup information of a nozzle per head.
3-2-4-1
Head pickup
information 1
C
A
B
TBL (table)
A table referred to.
G
H
Shows the previous or next table.
NozzlePos
Nozzle installation position number of a
head.
●Perform on both and .
Nozzle No
Nozzle type being picked up
Total
Total of pickup count of all heads and
error count, and error occurrence rate for
total pickup count.
2
1
D
A C
HG
B E
F
I
D
E
F
Pickup Cnt
Number of components being picked up
per head
Err Cnt
Number of components resulting in error
Err Rate
Error occurrence rate for pickup count
I
Lane
Change the display item to “All” or
“Lane”. When “Lane” is selected, also
select the lane by the lane change
button.
NPM-TT2 EJM1EE-MB-03O-02
3-2-4-2
B
1
(Error detailed information is displayed)
A
Changes the display type.
D
Returns to the previous screen.
E
C
Total
Total of pickup count/rate of all heads,
or total / rate of error count of each
head.
A
C
ED
B
Total Err
Total / rate of error count per head
Error item
(→P.3-2-3-2)
Production
