NPM- TT2 EJM1EE-MB-04 O-03 Component with leads 1 C B A B 2 Lead information 1: Upper side lead cou nt. 2: Right side lead count. 3: Lower side lead coun t. 4: Left side lead cou nt. ● Unit: piece. 3 A CompName (→P.4-1-8…
NPM-TT2 EJM1EE-MB-04O-03
4-1-8-4
Ｓｅｔｔｉｎｇ
change
5
Edit the desired item
●Choose the 3D clipping level data to
display the related data.
(Only when the camera type is 3D)
●Choose the 3D sensor control data
to display the related data.
(Only when the camera type is 3D)
●Choose the insertion lead detection
to display the related data.
●Choose the insert lead detect (all) to
display the related data.
●Choose the flux check to display the
related data.
Bright Diff Check
●Choose the bright diff check to
display the related data.
NPM-TT2 EJM1EE-MB-04O-03
Component with leads 1
C
B
A
B
2
Lead information
1: Upper side lead count.
2: Right side lead count.
3: Lower side lead count.
4: Left side lead count.
●Unit: piece.
3

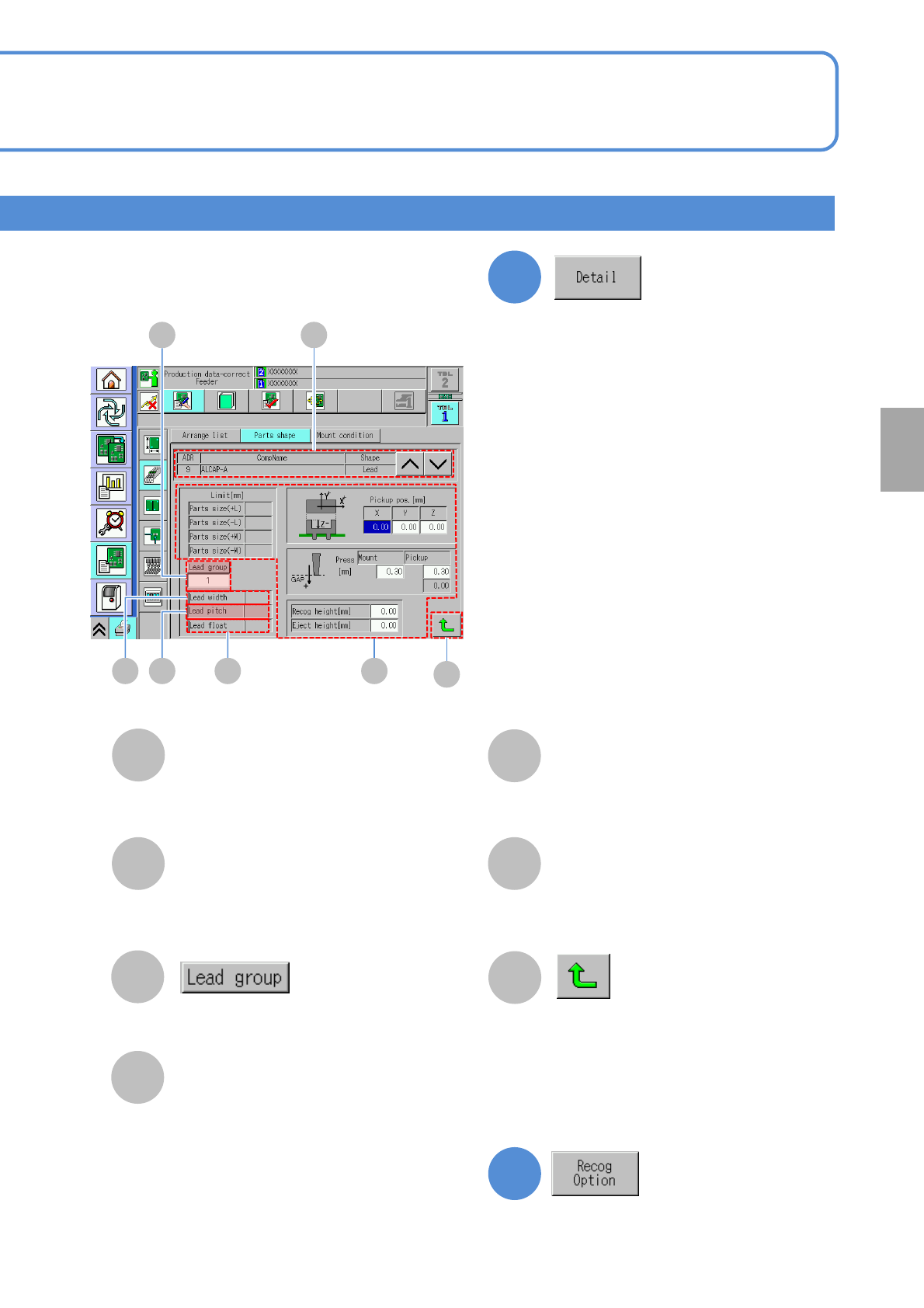

A
CompName
(→P.4-1-8-1)
Reel of lead
4
■Enlarged drawing of
B
C
F
D
E
D
1: Upper side lead length.
2: Right side lead length.
3: Lower side lead length.
4: Left side lead length.
●Unit: mm.
Lead length
E
1: Upper side lead width.
2: Right side lead width.
3: Lower side lead width.
4: Left side lead width.
●Unit: mm.
Lead width
F
1: Upper side lead pitch.
2: Right side lead pitch.
3: Lower side lead pitch.
4: Left side lead pitch.
●Unit: mm.
Lead pitch
Data
editing
Component shape data
edit 3
4-1-8-5
Edit the data of the desired
field on the screen
●Touching the screen opens the input
window.
1
Operating procedure
4-1-8
NPM-TT2 EJM1EE-MB-04O-03
2
4-1-8-6
A
CompName
(→P.4-1-8-1)
Tolerance of a component size,
pickup/ mount information
B
(→P.4-1-8-2)
C
D
Lead width
Choose a lead group.
Tolerance of lead width on upper, right
lower and left sides.
E
Lead float
F
Lead pitch
Tolerance of lead float.
Tolerance of lead pitch on upper, right
lower and left sides.
G
Returns to the previous screen.
3
Ｓｅｔｔｉｎｇ
change
D
C
E F
A
B
G
Confirm and edit the detailed data.
Confirm and edit the recognition option
data.
(→P.4-1-8
-3)
