NPM- TT2 EJM1EE-MB -04O-03 Data editing Describes how to check and edit tray information . B C D E F G T r ay data edit (tray feeder) A H A CompName (→P.4-1-8 -1 ) B Tr a y Tray name. C Basic information (→P.4-1-10 -2 ) …
NPM-TT2 EJM1EE-MB-04O-03
The offset data of lamp value is
initialized.
1
Checking and editing the recognition condition
4-1-9-2
C
B
Item name
Set data
Mount condition of each item.
D
A
CompName
(→P.4-1-8-1)
Edit the data of the desired
field on the screen
●Touching the screen opens the input
window.
2
Ｓｅｔｔｉｎｇ
change
1 B CD
A
Recog. Speed:
・(Auto / Fast / Mid / Slow)
Recog error stop:
・(1 / 3)
Camera kind：
・(2D / 3D)
Lighting mode：
・(Shadow / Reflect / BGA)
Shadow lamp offset：
・Shadow lamp offset value for component
recognition
Reflect lamp offset：
・Reflect lamp offset value for component recognition
BGA lamp offset：
・BGA lamp offset for component recognition
polarity：
・The presence / absence of component polarity
Chk adhesion around the parts：
・Picking up 2 components results in a recognition
error. Prevents an extra component from falling on a
PCB.
NPM-TT2 EJM1EE-MB-04O-03
Data
editing
Describes how to check and edit tray information.
B
CD E F G

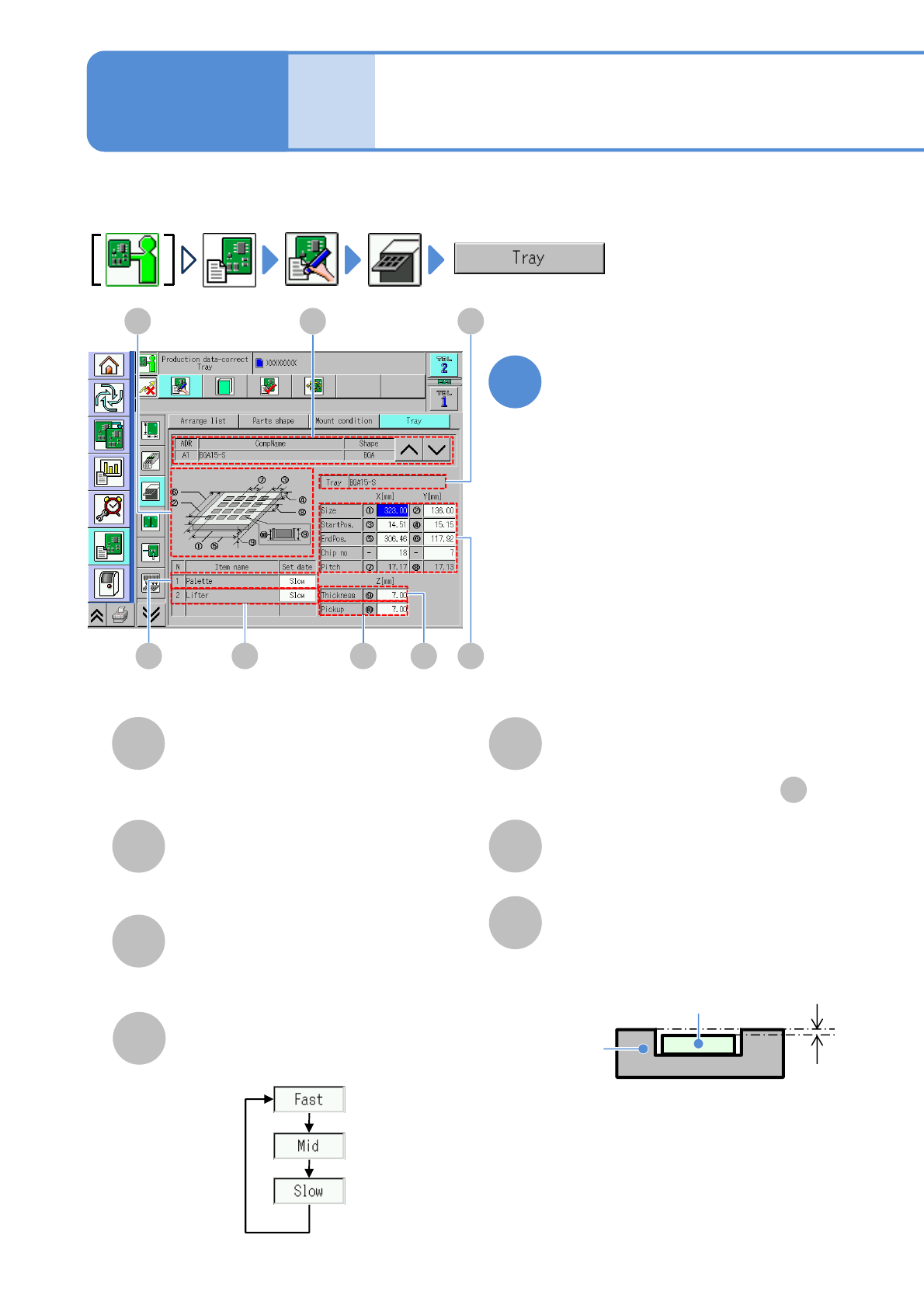

Tray data edit
(tray feeder)
AH
A
CompName
(→P.4-1-8-1)
B
Tray
Tray name.
C
Basic information
(→P.4-1-10-2)
Choose a moving speed of pallet axis.
D
Pallet axis speed
E
Lifter axis speed
Choose a moving speed of lifter-axis.
●Choose the same set data as .
D
F
Tray thickness
G
Pickup height
Tray
Electric
component
Pickup
height
Enter the pickup height.
Edit the data of the desired
field on the screen
●Touching the screen opens the input
window.
1
Operating procedure
4-1-10
4-1-10-1
NPM-TT2 EJM1EE-MB-04O-03

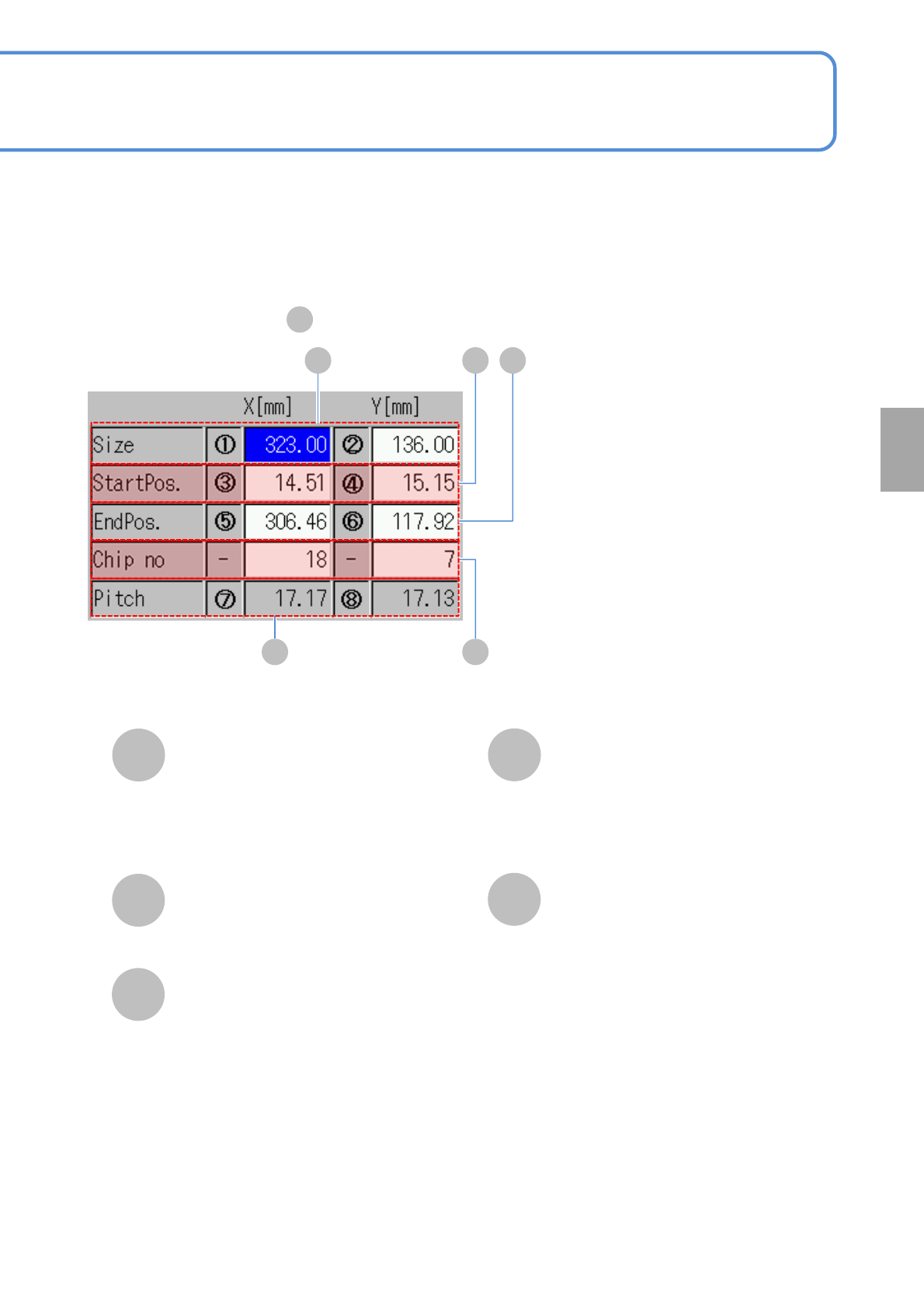

Size
H
StartPos.
Chip no
Pitch
■ Enlarged drawing of
C
KL
H I J
Enter the outer dimensions of a tray.
X: Dimension of longer side.
Y: Dimension of shorter side.
I
Enter the first pickup point coordinates.
J
EndPos.
Enter the last pickup point coordinates.
K
X: The number of components stored in
the longer side.
Y: The number of components stored in
the shorter side.
●Unit: piece.
L
Pitch between components.
Ｓｅｔｔｉｎｇ
change
4-1-10-2
