NPM- TT2 EJM1EE-MB -04O-03 Ｓｅｔｔｉｎｇ change 4-1-1 1 -2
NPM-TT2 EJM1EE-MB-04O-03
Data
editing

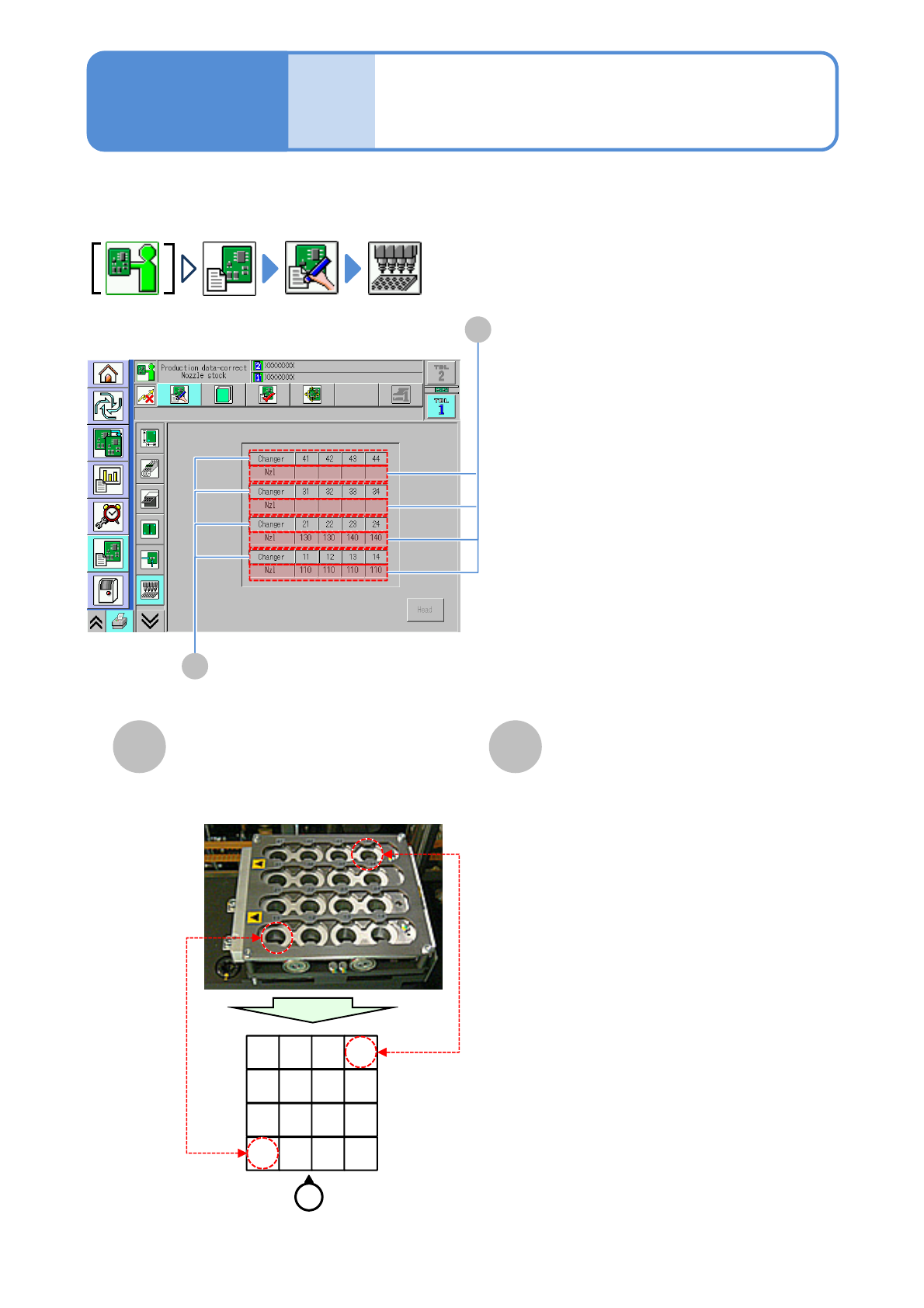

Describes how to check nozzle information stored in the nozzle changer.
A B
Changer Nzl
Nozzle changer
arrangement edit
Nozzle changer number.
The nozzle number in the changer.
Operator
●Example (For 8-head nozzle)
Operating procedure
4-1-11
B
A
11 12 13 14
21 22 23 24
31 32 33 34
41 42 43 44
4-1-11-1
NPM-TT2 EJM1EE-MB-04O-03
Ｓｅｔｔｉｎｇ
change
4-1-11-2
NPM-TT2 EJM1EE-MB-04O-03
A C D
E K
B
F
I
G H J

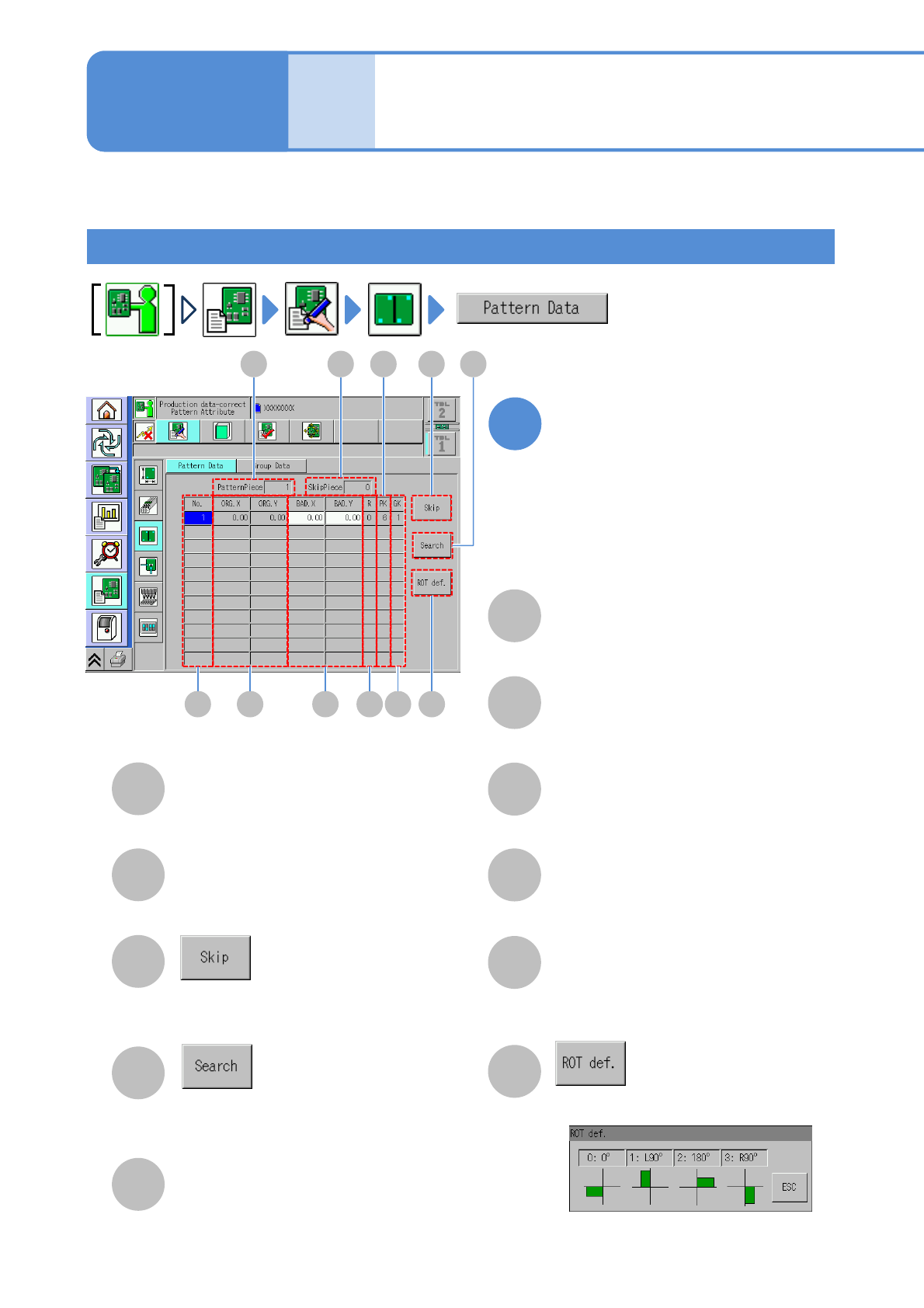

Pattern
Describes how to check and edit the pattern attribute. (→.P4-2-2)
Data
editing
Pattern attribute data
edit
A
SkipPiece
B
PatternPiece
C
D
Enter the pattern number to search the
pattern.
Set the selected pattern to the bad
pattern.
The total number of skip patterns.
The total number of registered patterns.
E
Pattern number.
No.
ORG.X/ORG.Y
F
G
BAD.X/ BAD.Y
X-/Y-coordinates of pattern origin.
Bad mark X-/Y-coordinates of a pattern.
Rotation definition number of a pattern.
(See the [Rotation definition] screen)
H
R
PK
J
The number for arranging more than
one type of pattern.
K
Displays the [Rotation definition] screen.
GK
I
The number to discriminate a pattern
group.
Edit the data of the desired
field on the screen
●Touching the screen opens the input
window.
1
Operating procedure
4-1-12
4-1-12-1
