NPM-TT2 EJM1EE-MB-04O-03
4-1-13-3
Explains about the screen to check and edit placement points of the production data.
Data
editing
Production data edit 2
Operating procedure
4-1-13
1
●This button becomes enabled when
there is recognition data of placement
points.
1
Screen explanation 2
NPM-TT2 EJM1EE-MB-04O-03
4-1-13-4

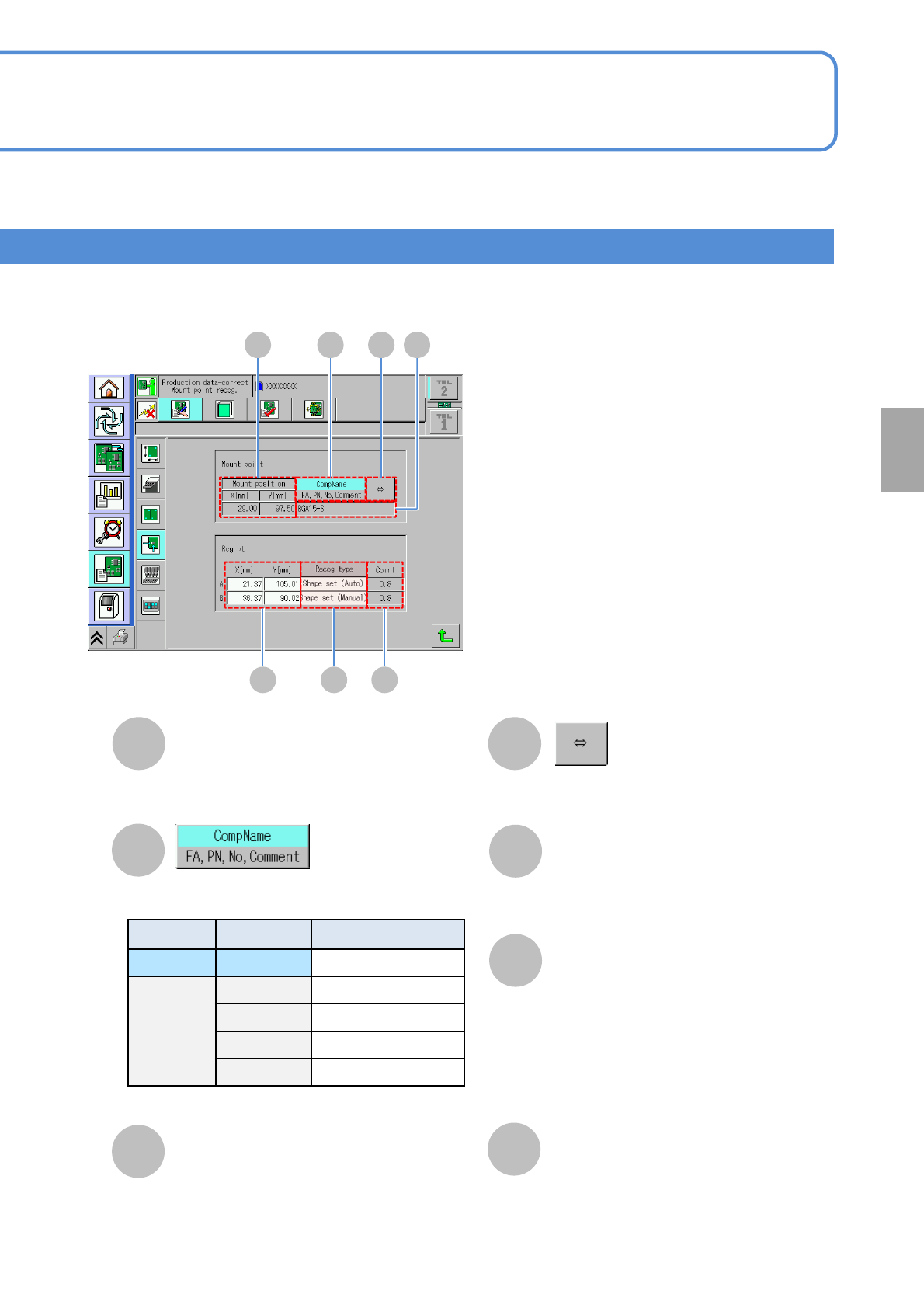

Ｓｅｔｔｉｎｇ
change
A
Mount position
E
X[mm]/Y[mm]
A B D
E F G
Recog type
F
Comment
G
C
B
CompName/FA, PN, No, Comment
D
C
Shows the rest of component name if it
is too long to show the whole name.
XY coordinate of a placement point.
Coordinates of a recognition mark.
Recognition type of a recognition mark.
Pressing the [Type] field displays the
shape setting screen of each
recognition mark.
(→P.4-1-3)
Comment on a recognition mark set in
DGS.
Displays the information of the selected
display type.
Location Symbol Name
Upper field CompName Component name
Lower field FA Feeder address
PN Pattern No
No Sequence No
Comment Comment
Choose the display type.
NPM-TT2 EJM1EE-MB-04O-03
4-1-13-5
Describes how to check and edit the production data.
2
1
Data
editing

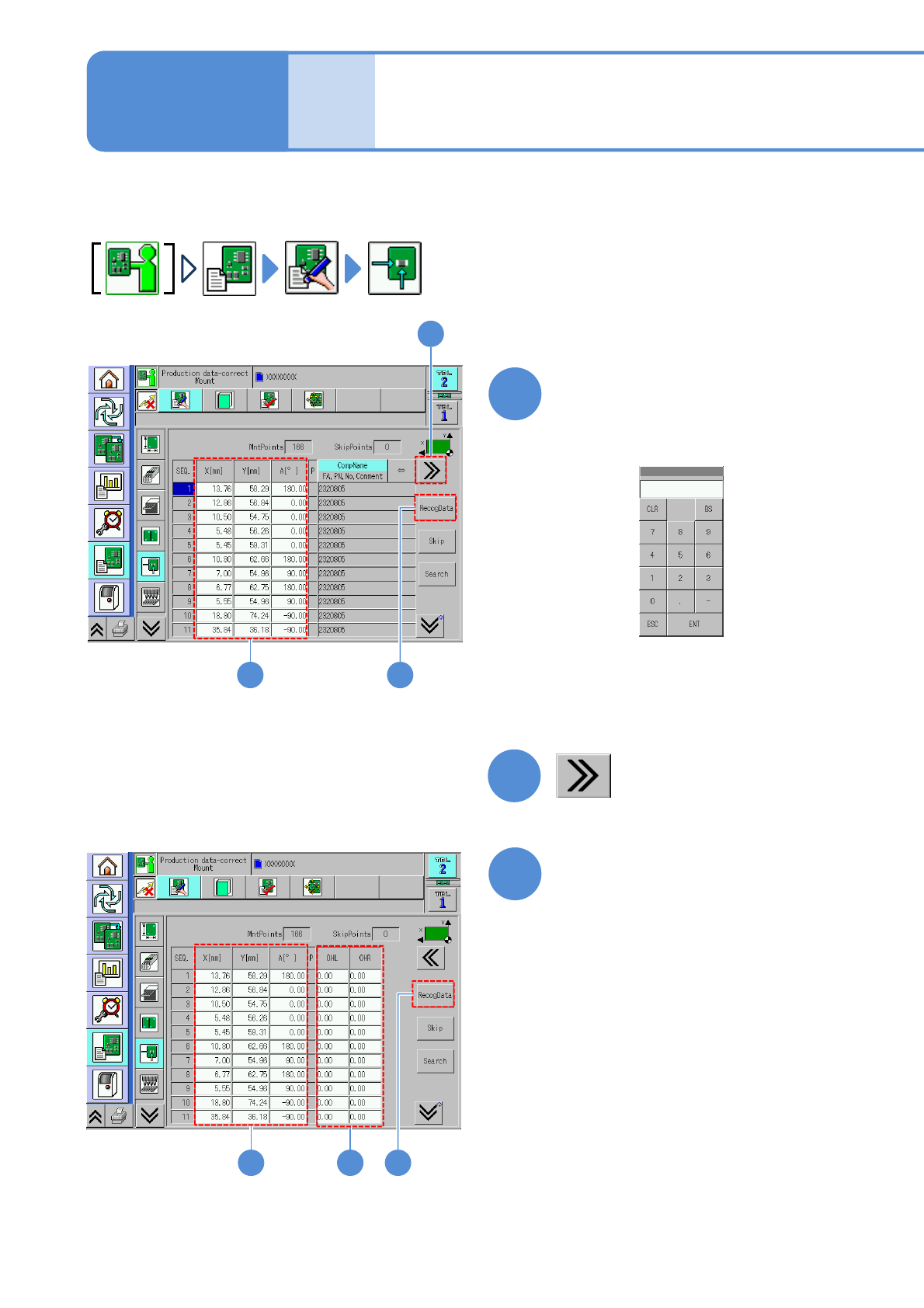

Production data edit 3
Edit the data of the desired
field on the screen
●Touching the screen opens the
numerical input window (figure below).
1
■To set the length jutting from left or
right edge of a PCB
2
31
Edit the data of the desired
field on the screen
●Touching the screen opens the
input window.
3
4
4
Operating procedure
4-1-13
