NPM- TT2 EJM1EE-MB -04O-03 4-1-14 -1 You can set the operation conditions or switch a pass table bet ween ON and OFF. Data editing Soft s witc h setting Operating procedure 4-1-14 A D B Item Shows the previous or next ta…
NPM-TT2 EJM1EE-MB-04O-03
4-1-13-6

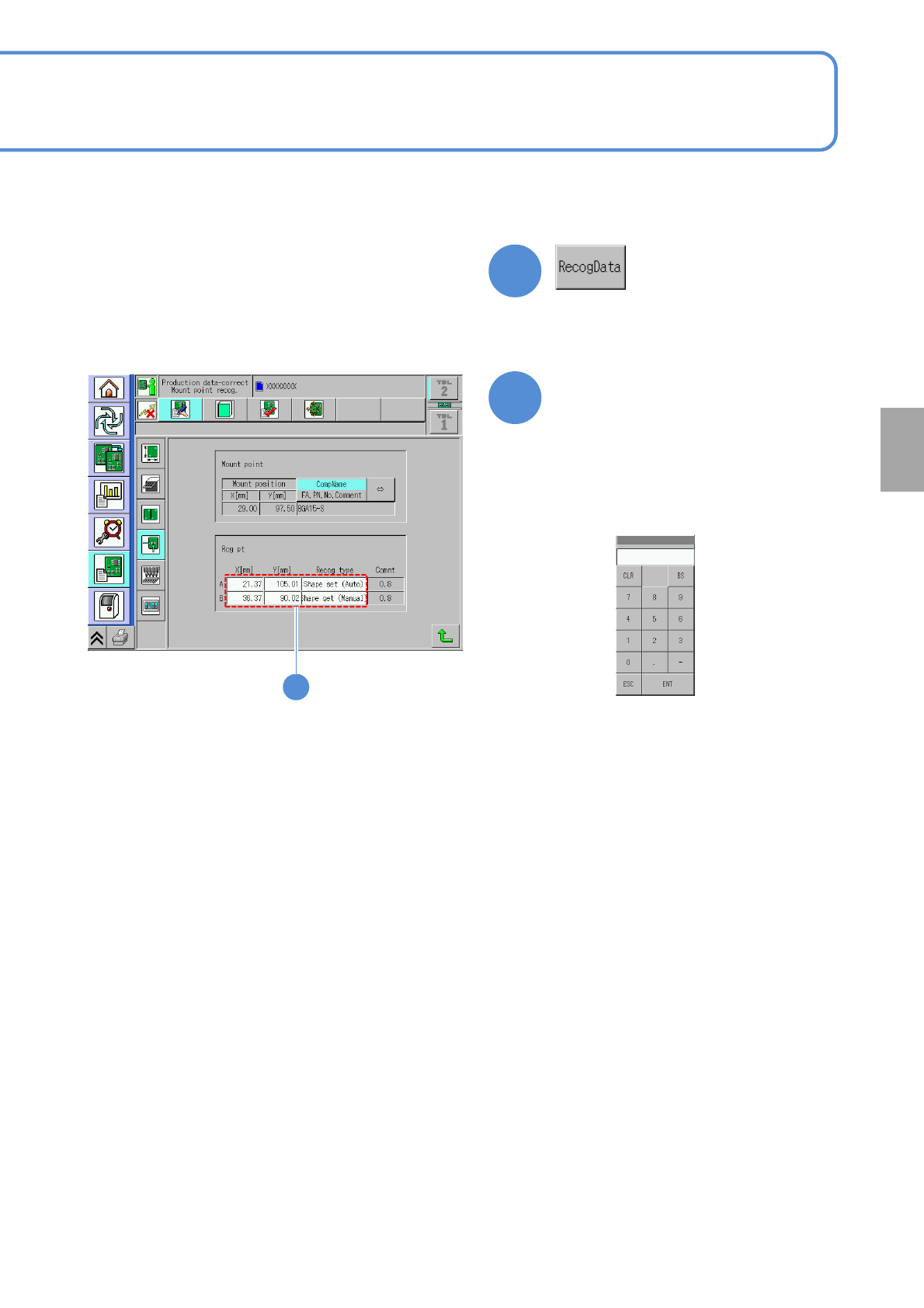

Edit the data of the desired
field on the screen
●Touching the screen opens the
input window.
5
4
●It is effective when the recognition
data of a placement point exists.
■To edit the placement point
5
■Input screen for
X[mm],Y[mm]
■Input screen for the
recognition type
(→P.4-1-3)
Ｓｅｔｔｉｎｇ
change
NPM-TT2 EJM1EE-MB-04O-03
4-1-14-1
You can set the operation conditions or switch a pass table between ON and OFF.
Data
editing
Soft switch setting
Operating procedure
4-1-14
A
D
B
Item
Shows the previous or next table.
Set
C
Displays soft switch items.
●
●
:Enable.
:Disable.
A
B
C
D
Set pass
●
●
:Pass.
:Not pass.
About settings other than the items
below, see the operating instruction
of NPM-DGS.
Item Description
Safe mode action
(For 3-nozzle head)
Perform the following for ON setting
・Do not allow superposition of X-axis, Y-axis and Y-axis during pickup or
placement
・Do not allow preliminary lowing during pickup or placement.
・Pickup check is performed by the vacuum sensor before X-axis or Y-axis are
moved during pickup or placement, and if pickup error is detected, the action
stops regardless of pickup error count.
Pattern/Group Mark
Recog.
PCB Recog Offset
Perform PCB mark recognition before recognizing pattern/pattern group when
[ON] is set.
Change this setting from ‘Panel Fiducial before Pattern/Pattern Group Fiducials’
of Software Switch in NPM-DGS.
(The setting cannot be changed on the machine.)
NPM-TT2 EJM1EE-MB-04O-03
4-1-14-2
