NPM- TT2 EJM1EE-MB -04O-03 4-1-14 -2 Ｓｅｔｔｉｎｇ change
NPM-TT2 EJM1EE-MB-04O-03
4-1-14-1
You can set the operation conditions or switch a pass table between ON and OFF.
Data
editing

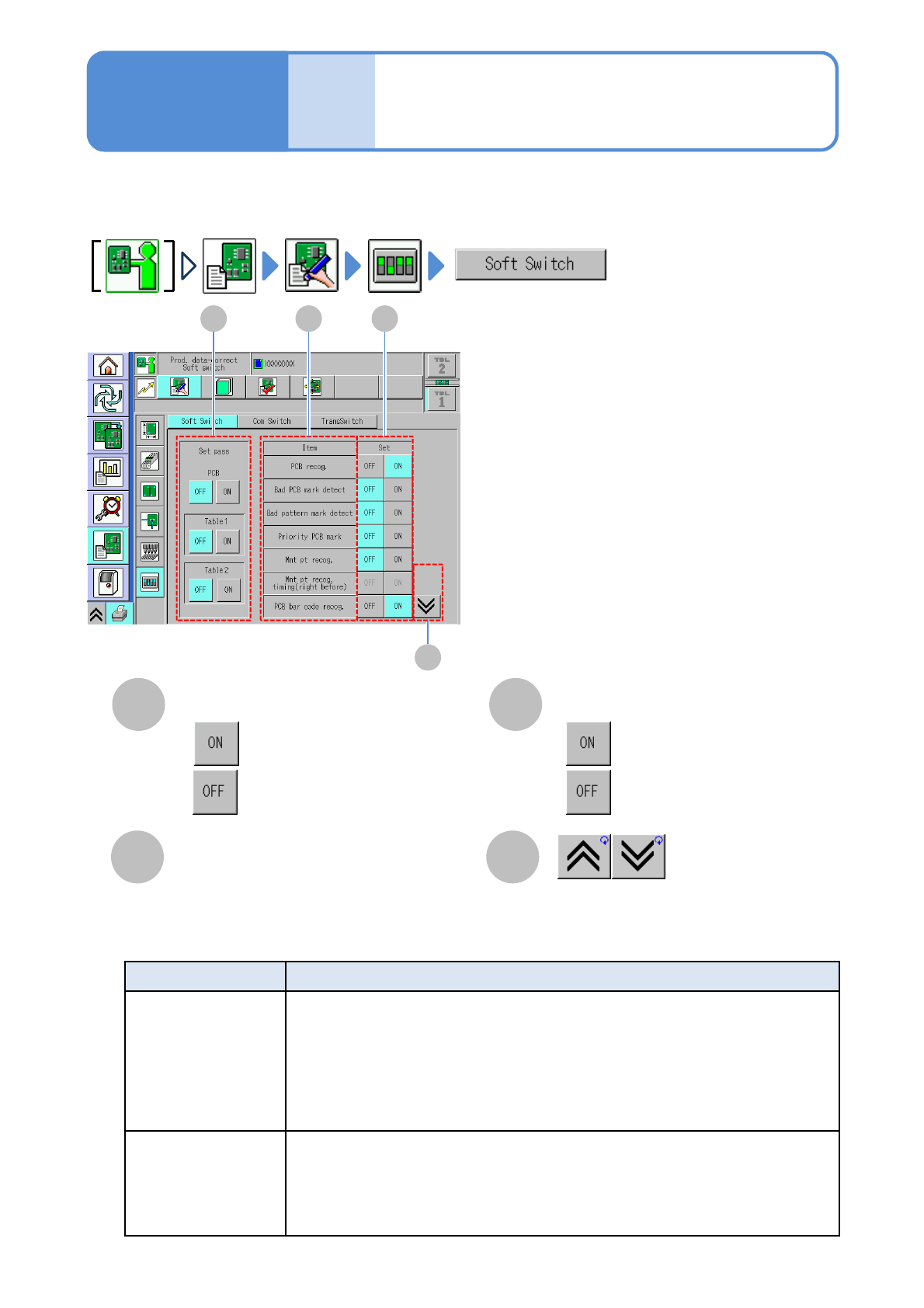

Soft switch setting
Operating procedure
4-1-14
A
D
B
Item
Shows the previous or next table.
Set
C
Displays soft switch items.
●
●
:Enable.
:Disable.
A
B
C
D
Set pass
●
●
:Pass.
:Not pass.
About settings other than the items
below, see the operating instruction
of NPM-DGS.
Item Description
Safe mode action
(For 3-nozzle head)
Perform the following for ON setting
・Do not allow superposition of X-axis, Y-axis and Y-axis during pickup or
placement
・Do not allow preliminary lowing during pickup or placement.
・Pickup check is performed by the vacuum sensor before X-axis or Y-axis are
moved during pickup or placement, and if pickup error is detected, the action
stops regardless of pickup error count.
Pattern/Group Mark
Recog.
PCB Recog Offset
Perform PCB mark recognition before recognizing pattern/pattern group when
[ON] is set.
Change this setting from ‘Panel Fiducial before Pattern/Pattern Group Fiducials’
of Software Switch in NPM-DGS.
(The setting cannot be changed on the machine.)
NPM-TT2 EJM1EE-MB-04O-03
4-1-14-2
Ｓｅｔｔｉｎｇ
change
NPM-TT2 EJM1EE-MB-04O-03
A
Data
editing

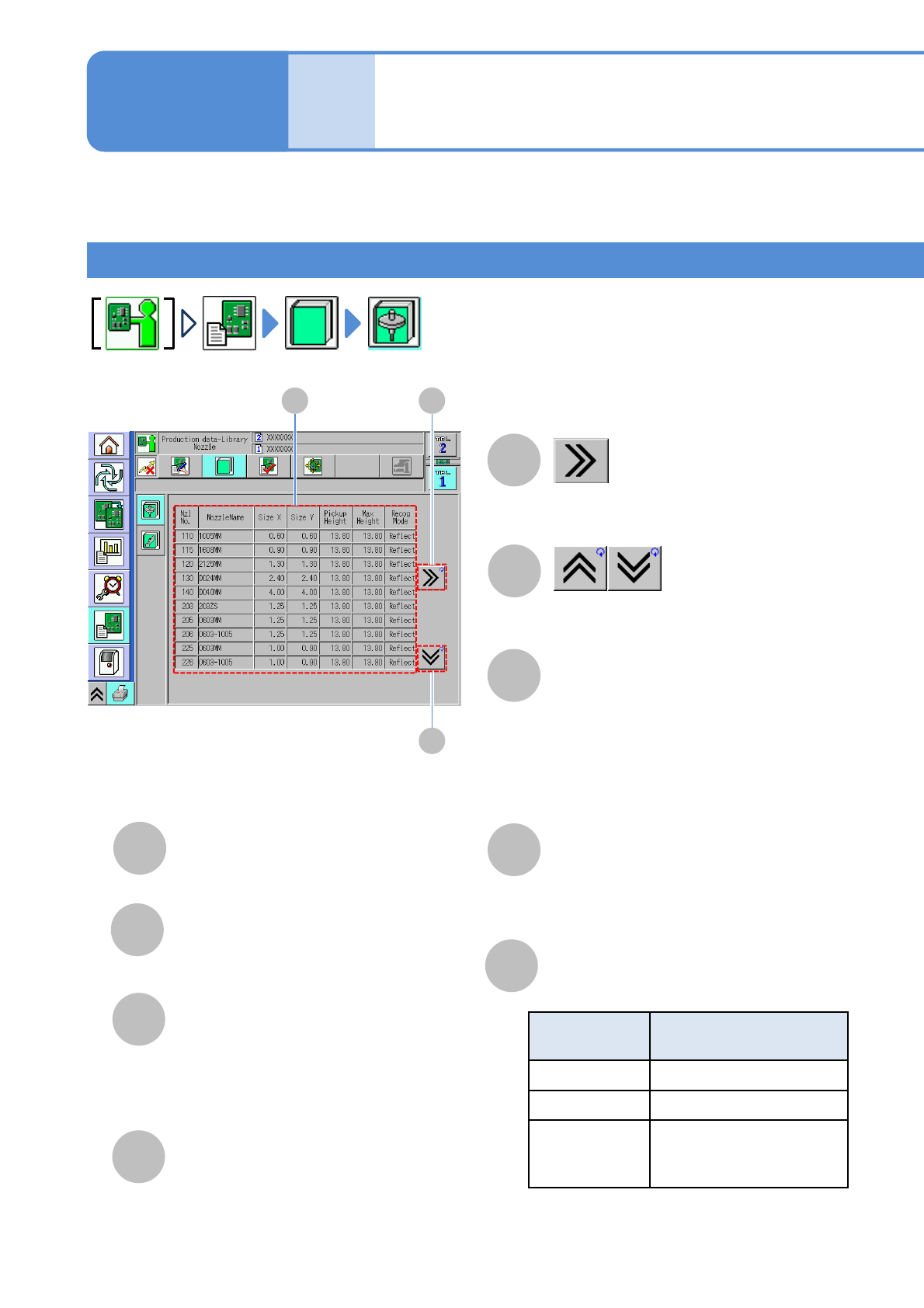

Library check 1
Describes how to check available nozzles or feeder information.
●Edit on NPM-DGS if necessary.
Nozzle library
H
Max Height
F
G
Pickup height
Size X/Size Y
C
E
Nozzle information
(→P.4-1-15-2)
NozzleName
Nozzle total height.
●Unit: mm.
The height from the nozzle top to the
pickup surface.
●Unit: mm.
The dimension in the X-/Y-direction as
seen from the top of the nozzle.
●Unit: mm.
B
Shows the previous or next table.
(Scrolls the table to the right.)
D
NzlNo.
I
Recog Mode
Nozzle recognition method.
Recognition
mode
Nozzle recognition
method
Reflection Reflection recognition
Transparency Transparency recognition
Both
Available for both
reflection and
transparency recognition
Operating procedure
4-1-15
B
C A
4-1-15-1
