NPM- TT2 EJM1EE-MB -04O-03 Ｓｅｔｔｉｎｇ change T eaching Flow Inputting the PCB data Inputting the PCB recognition data Starting the teaching Setting the lamp values Recognition Created on NPM-DGS ← Unnecessary if the automat…
NPM-TT2 EJM1EE-MB-04O-03
Produc-
tion data
teaching
PCB recognition
Production data is corrected by recognizing marks set on the print patterns of a board and calculating the
difference in print pattern position between the board and production data.
Set recognition marks for placement before a placement operation.
●There are three types of recognition modes; [PCB], [Group] and [Pattern]. You can set both recognition
and bad marks by type (a bad mark is used to judge NG mount).
Pattern 1 Pattern 2
Pattern 3 Pattern 4
Pattern 5
Pattern 6
Pattern 9
Pattern 10
Pattern 11
Pattern 12
Pattern 13 Pattern 14
Pattern 15 Pattern 16
Group recognition
mark
Bad group
mark
Group recognition marks
PCB recognition
mark
Bad mark
Pattern 7
Pattern 8
Bad pattern
mark
Pattern recognition marks
PCB recognition teach
1
Group 1
Group
recognition
marks
PCB
Group 2
Operating procedure
4-2-2
PCB recognition
mark
4-2-2-1
NPM-TT2 EJM1EE-MB-04O-03
Ｓｅｔｔｉｎｇ
change
Teaching Flow
Inputting the PCB data
Inputting the PCB recognition data
Starting the teaching
Setting the lamp values
Recognition
Created on NPM-DGS
← Unnecessary if the automatic
lamp setting is selected
Saving data
Recognition Test
Teaching is complete
4-2-2-2
NPM-TT2 EJM1EE-MB-04O-03
Produc-
tion data
teaching
4-2-2-3
●Before the PCB recognition teach, check in NPM-DGS that the soft switch ‘PCBRecog’ (P.4-1-14) of the
created data is set to [ON].
●If a PCB width is not matched, adjust it (→P.2-5-4)

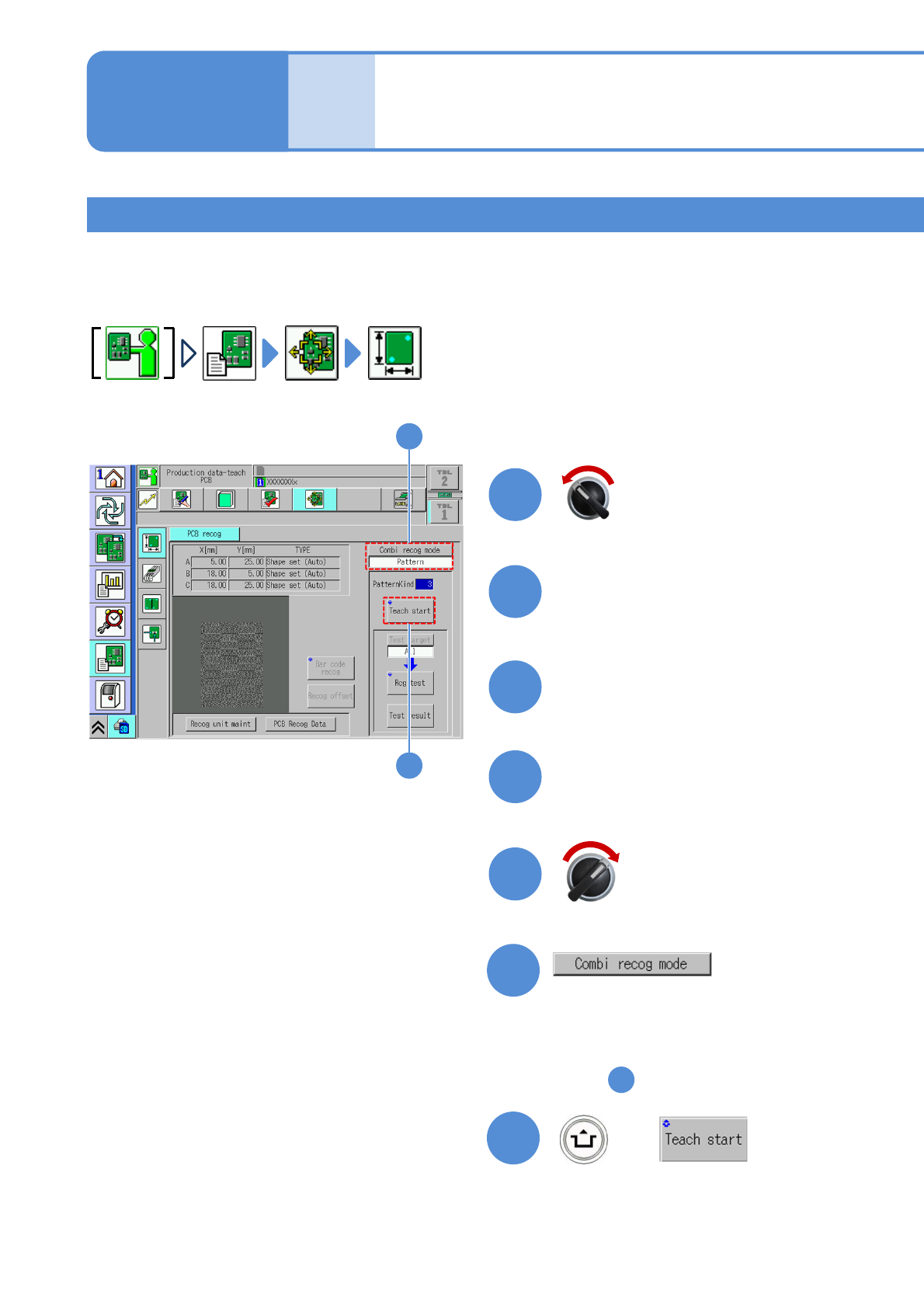

Teaching 1
PCB recognition teach
2
Open the safety cover
1
2
Set a PCB on the PCB entrance
3
4
Close the safety cover
5
Operating procedure
4-2-2
+
6
Servo switch OFF
Servo switch ON
(The PCB is loaded and clamped at the
unloading position. The head camera
moves to the recognition mark position)
7
6
7
●Select recognition mode that you want
to perform teaching.
7
■If it is not displayed
