NPM-TT2 EJM1EE-MB-04O-03

4-2-2-10

Ｓｅｔｔｉｎｇ

change

1415

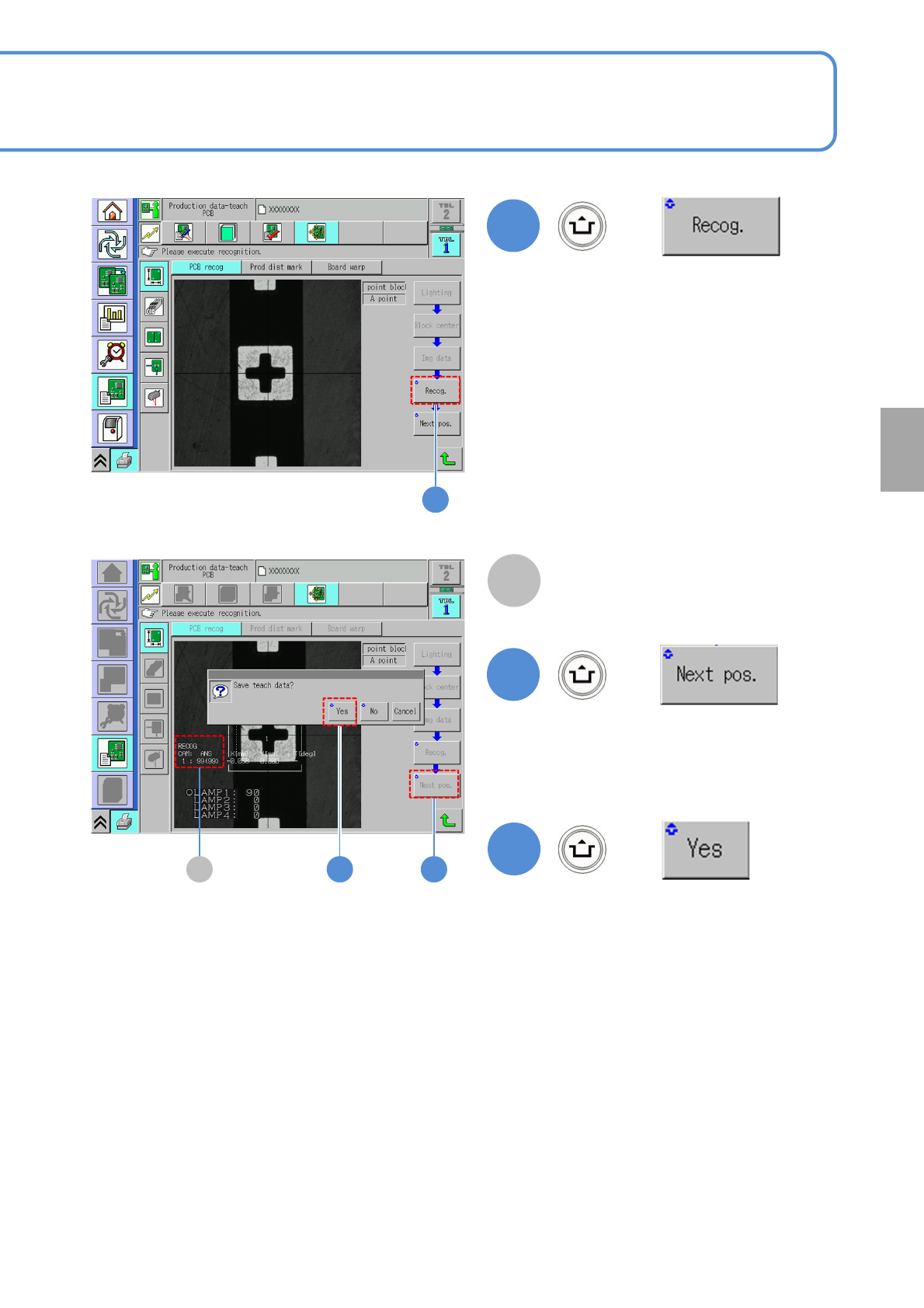

If the ANS value is larger than the

recognition OK rate (line camera –

operation parameter (judgment)),

recognition results in OK.

●Only if there is next mark, teaching is

continuously performed as the same

way.

Save the teach result.

NPM-TT2 EJM1EE-MB-04O-03

Pattern 1 Pattern 2

Pattern 3 Pattern 4

4-2-3-1

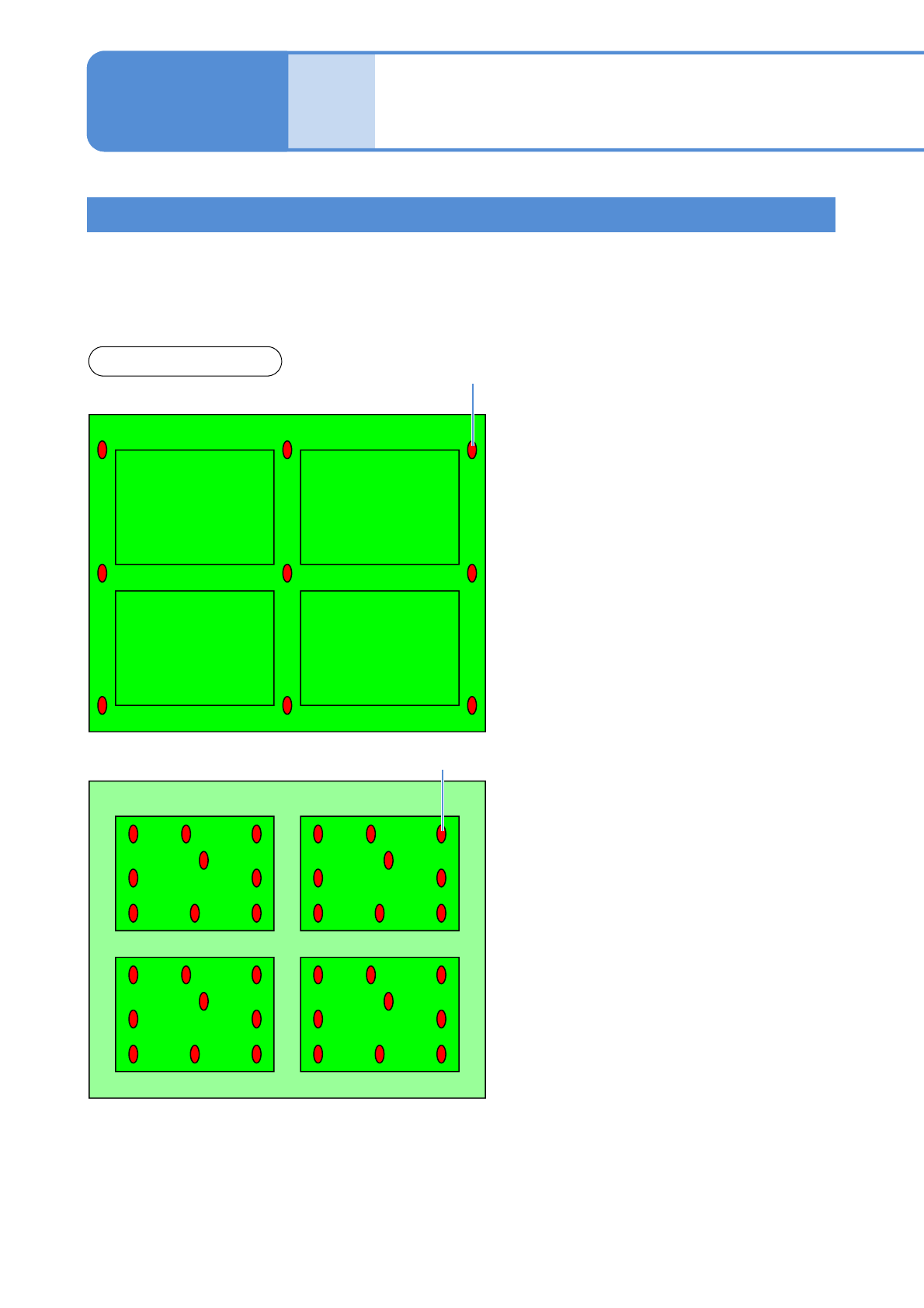

Conceptual drawing

■Warpage mode: PCB

PCB warpage measurement point

■Warpage mode: Pattern

Pattern １

Pattern 2

Pattern 3 Pattern 4

PCB warpage measurement point

PCB warpage measurement points

Produc-

tion data

teaching

PCB warpage measurement

point teach

(option) 1

Operating procedure

4-2-3

The PCB warpage detection function is available to control the height by predicting PCB warpage. This

function measures the height of a few points on the PCB surface by the height sensor, draws the

approximate curve to be assumed by the measurement result and controls the mount height according to

the approximate curve. PCB warpage measurement and correction mode has two patterns; PCB and

Pattern. You must choose which mode is used depending on PCB warpage condition.

●It is necessary to confirm whether to be appropriate or not the measurement points (surface material, area, the

number of points, arrangement) in advance. (→P.6-1-8)

●The changing PCB data is sent from CPM-DGS in advance. (→P.2-3-3)

●PCB warpage measurement point teach can be performed by the PCB data of the PCB warpage target. [PCB

warpage detection] of the soft switch must be turned ON and the PCB warpage measurement point coordinates

must be registered. (→NPM-DGS 4.3.3 Option setting)

●Before performing measurement point teach, [Measurement by the height sensor] and [PCB warpage

Correction] of the option setting must be turned ON. (→P.5-1-1 Option setting)

NPM-TT2 EJM1EE-MB-04O-03

4-2-3-2

Ｓｅｔｔｉｎｇ

change

Entering the PCB warpage measurement points data

Starting teaching

Choosing the measurement points data

Adjusting the position

Measurement test

Saving the data

Completion of teaching

Created by NPM-DGS

Teaching Flow
