NPM-TT2 EJM1EE-MB-04O-03
4-2-3-2
Ｓｅｔｔｉｎｇ
change
Entering the PCB warpage measurement points data
Starting teaching
Choosing the measurement points data
Adjusting the position
Measurement test
Saving the data
Completion of teaching
Created by NPM-DGS
Teaching Flow
NPM-TT2 EJM1EE-MB-04O-03
4-2-3-3
Produc-
tion data
teaching
PCB warpage measurement
point teach
(option) 2

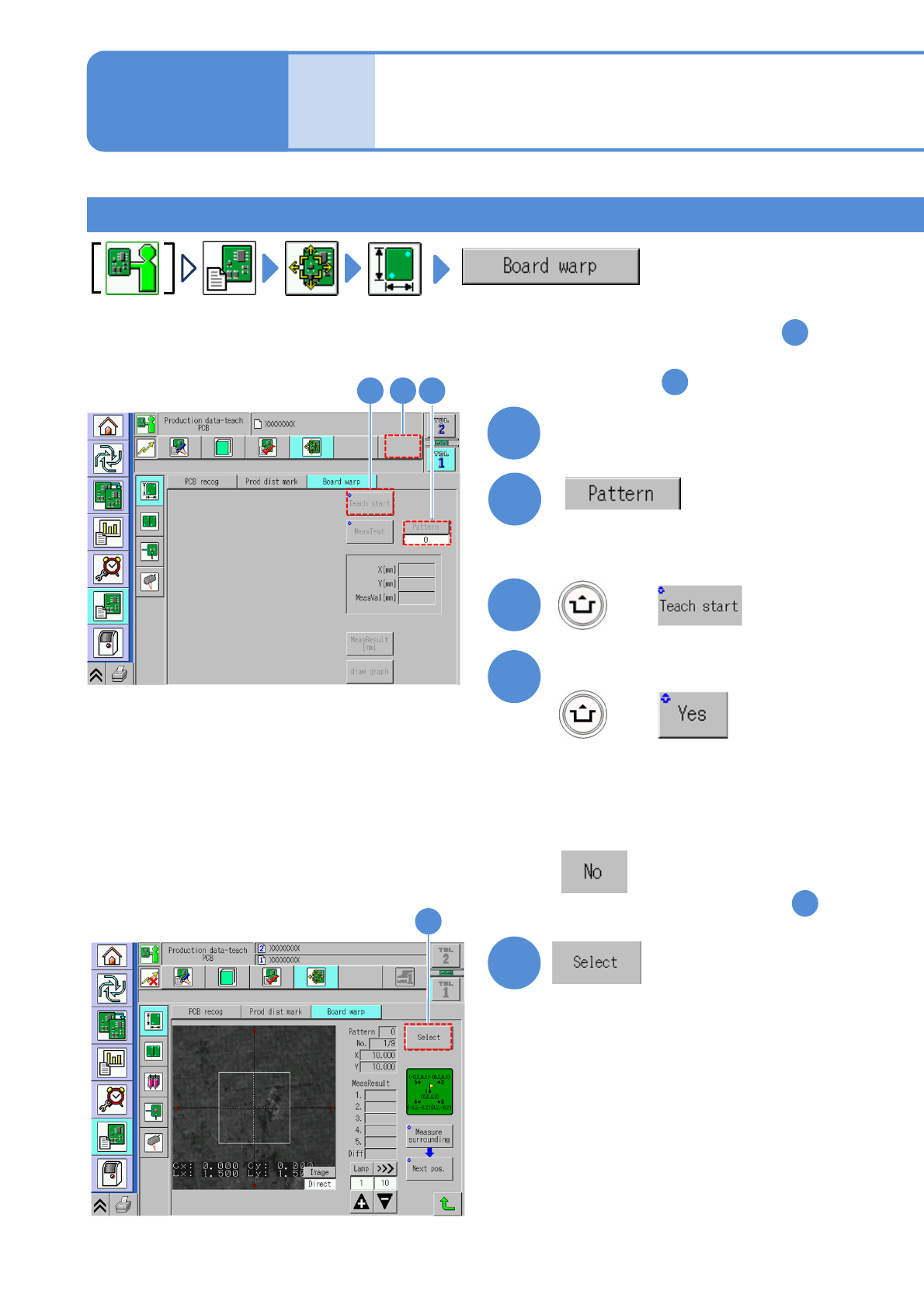

Operating procedure
4-2-3
2
+
Confirm the message
3
1
(Selectable only when the warpage
mode is pattern.)
●Set the pattern number
4
(Confirm the PCB loading message
and place the PCB.)
5
(The PCB warpage measurement
point data is displayed.)
+
■If you do not operate
Select a lane
(The screen remain as it is in )
1
(The PCB is loaded and the
recognition mark is recognized.)
(For dual lane)
Teaching procedure 1
23
5
1
■For measuring per a point and change
the measurement point: To step
3
■For measuring all points and check
the result: To step
11
NPM-TT2 EJM1EE-MB-04O-03
4-2-3-4
Ｓｅｔｔｉｎｇ
change
+
6
6

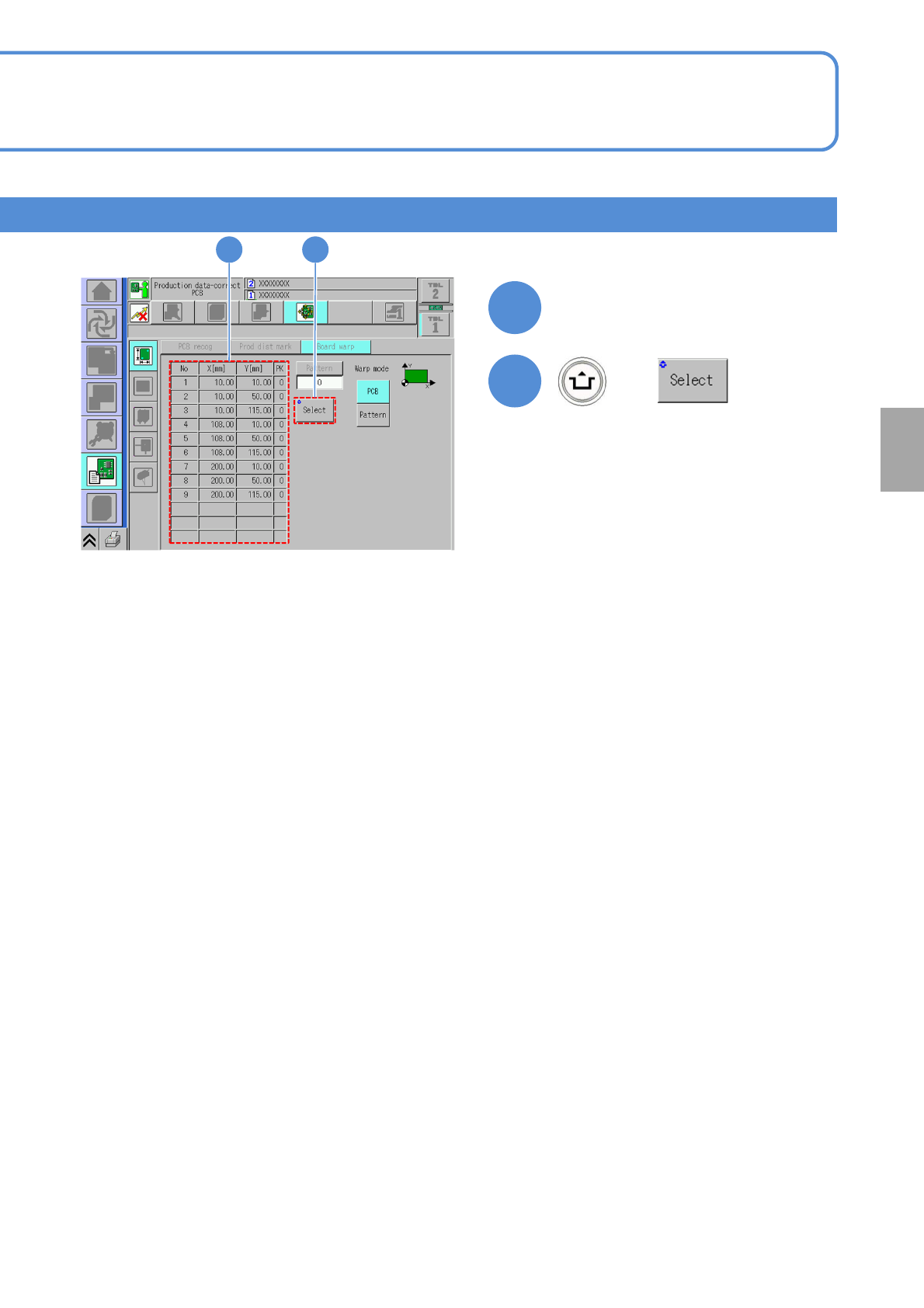

Select the coordinate No. to
measure
7
(The head camera moves to the
coordinates to measure so that you
can visually check the condition of
measurement point.)
7
●The center of the image displayed on
the screen is the measurement point.
●Visually check whether to be
appropriate or not the measurement
points on the PCB surface.
