NPM-TT2 EJM1EE-MB-05O-05
5-1-3-2
System
administration
1 1
D
C
1
Choose a setting type
■To set for each status during
production
■To set for each type during single
stop
■To set for each machine status
■To set for each type during immediate
stop
■To set as standard specifications
(Initialize)
C
D
The parts empty information is displayed.
The window for setting the bottleneck lamp
condition is displayed.
NPM-TT2 EJM1EE-MB-05O-05
Unit
setting
Signal tower setting 2
5-1-3-3
Operating procedure
5-1-3
Confirm the message
■When you do not save the data
Components empty
●You can configure a table lamp for each component shortage status.
3
1
1
2
4
4
2 3
(Returns to the previous screen)
Choose the lamp settings for
each status
■Press the next operation button
■To set as standard specifications
(Initialize)
NPM-TT2 EJM1EE-MB-05O-05
5-1-3-4
System
administration
Bottle neck
1
4
2 3
Confirm the message
3
2
4
(Returns to the previous screen)

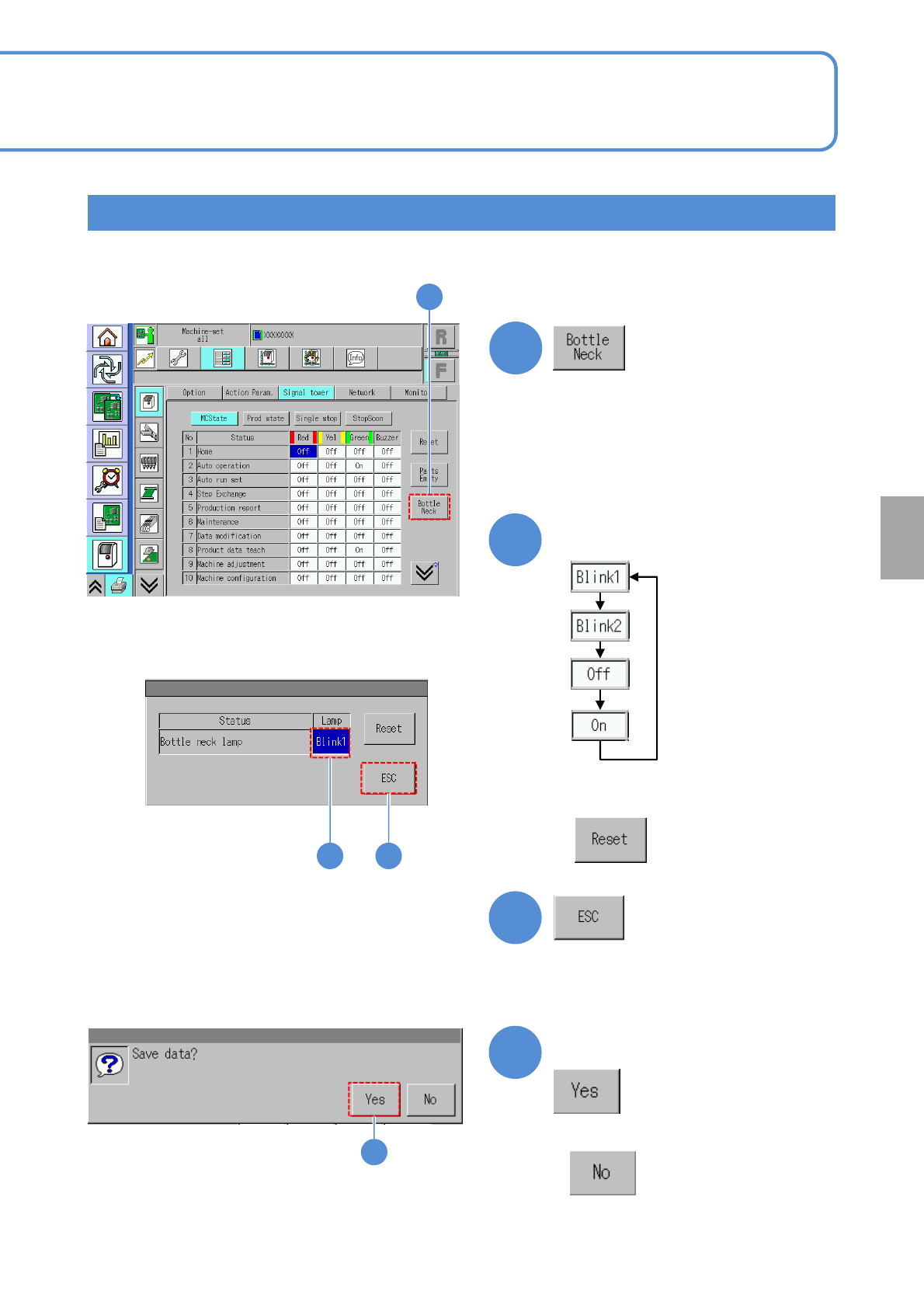

Choose the lamp settings
■Press the next operation button
■When you do not save the data
●You can configure a bottleneck lamp condition of a bottleneck machine in line.
■When you set to “Blink 1” of initial status,
1
