NPM- TT2 EJM1E E-MB-05O-05 5-2-1 -2 System administration
NPM-TT2 EJM1EE-MB-05O-05
Unit
adjust-
ment

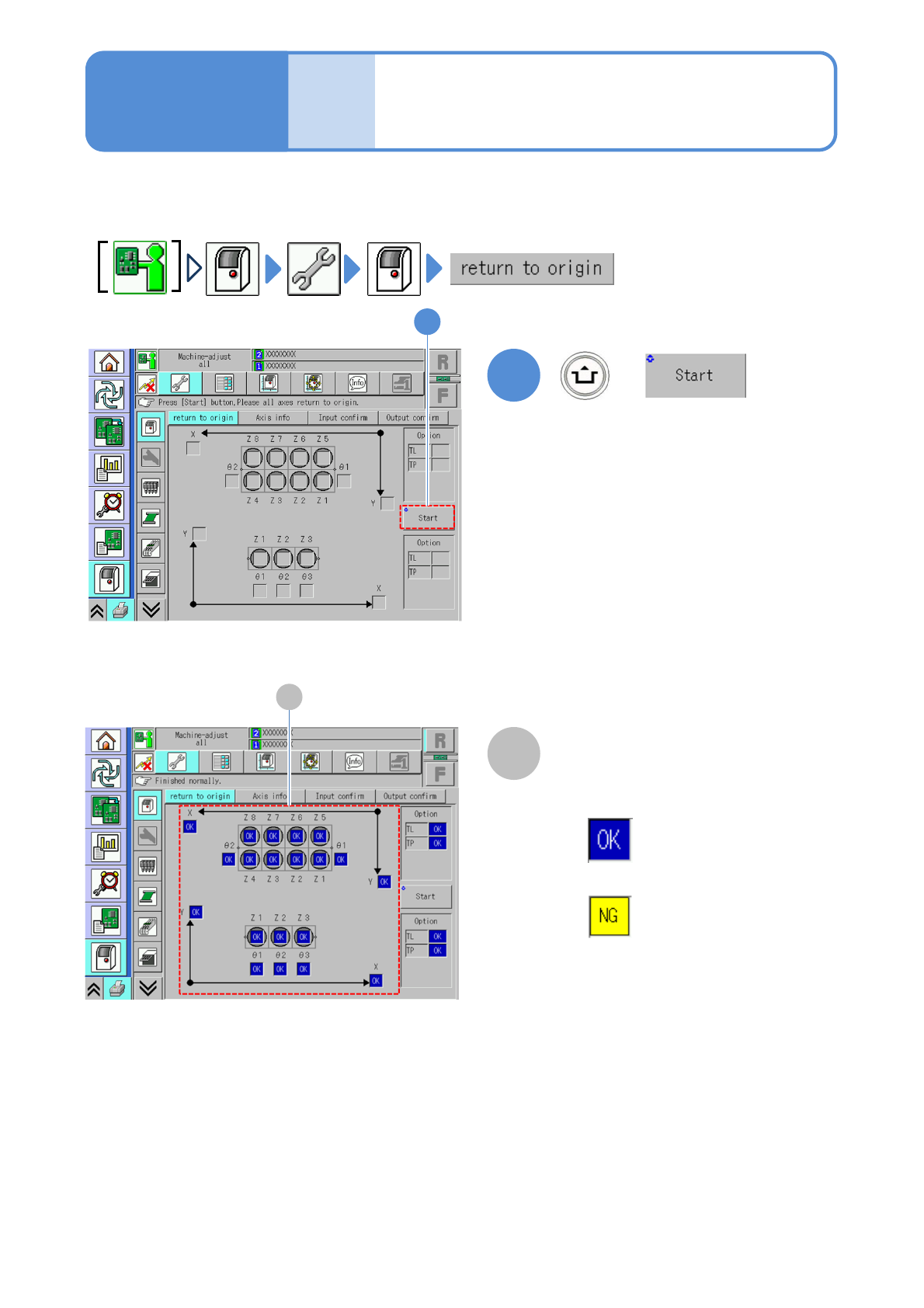

All-axes origin return
1
Returns all axes to their origins
+
1
A
A
Operating procedure
5-2-1
(The origin return process starts and the
result is displayed)
Result of origin return
■Axes succeeded in the origin return
■Axes failed in the origin return
●Please consult us.
5-2-1-1
NPM-TT2 EJM1EE-MB-05O-05
5-2-1-2
System
administration
NPM-TT2 EJM1EE-MB-05O-05
●Perform on both and .
Unit
adjust-
ment

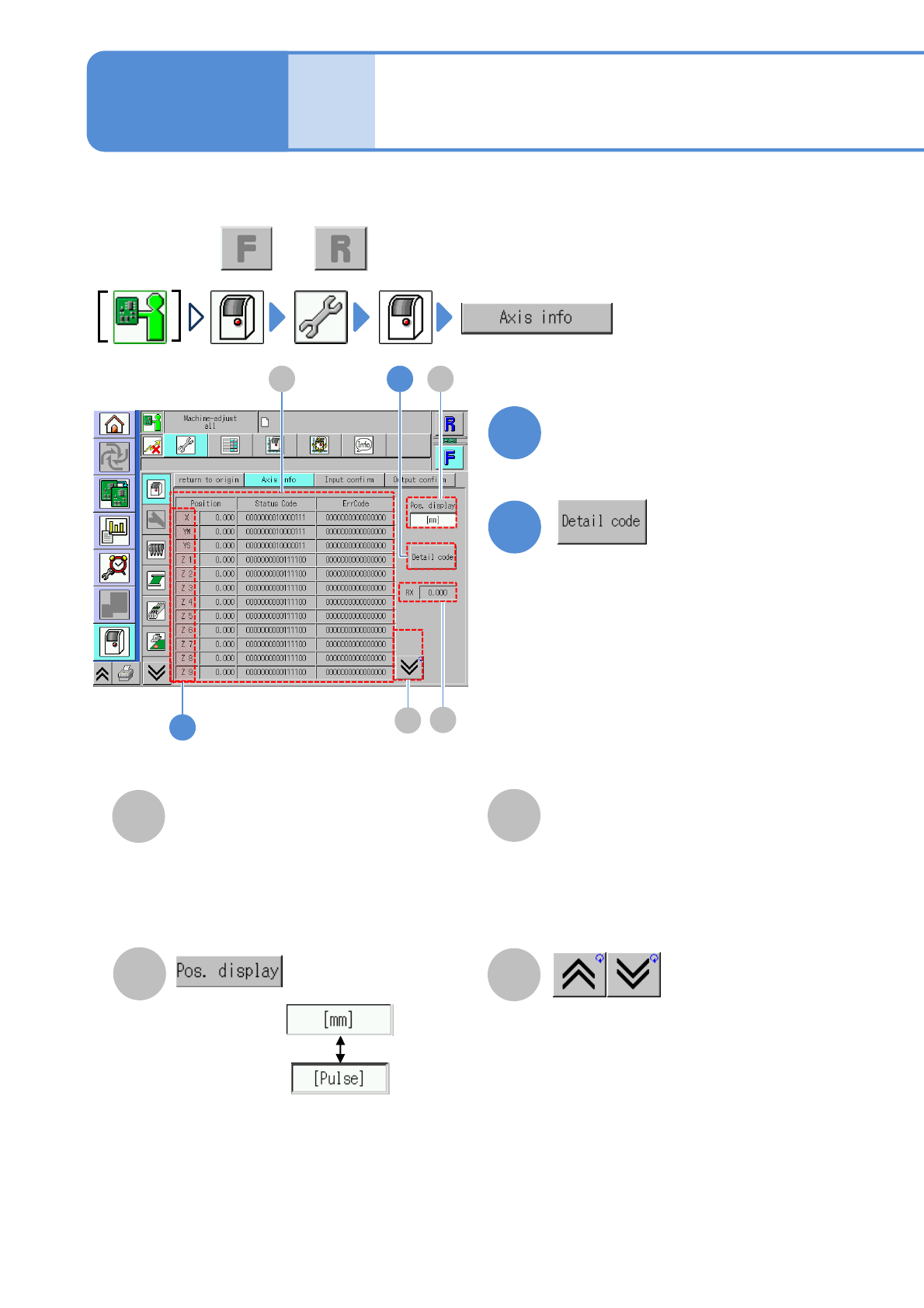

Axis information check
5-2-2-1
B
C
You can check the current positions and status of all the axes controlled by the machine.
B
D
C
D
2
1
2
A
1
A
Operating procedure
5-2-2
Axis status code/error
code
Choose a unit.
RX
Encoder rate value of the line camera is
displayed.
The previous or next table is
displayed.
(Detail information on the status code
or error code is displayed)
●Status code: Axis information is
expressed in the unit of Bit.
●Error code: Error information is
expressed in the unit of Bit.
Choose an axis
The screen of axis information is displayed.
・Position
・Status Code
・Err Code
