NPM- TT2 EJM1E E-MB-05O-05 Unit adjust- ment R eplacing the no zzle of the placement head 1 5-2-5 -1 Operating procedure 5-2-5 Removing nozzles Remove no zzles on th e placement h ead and stored in to the n ozzle ch ange…

NPM-TT2 EJM1EE-MB-05O-05

5-2-4-2

System

administration

NPM-TT2 EJM1EE-MB-05O-05

Unit

adjust-

ment

Replacing the nozzle of

the placement head 1

5-2-5-1

Operating procedure

5-2-5

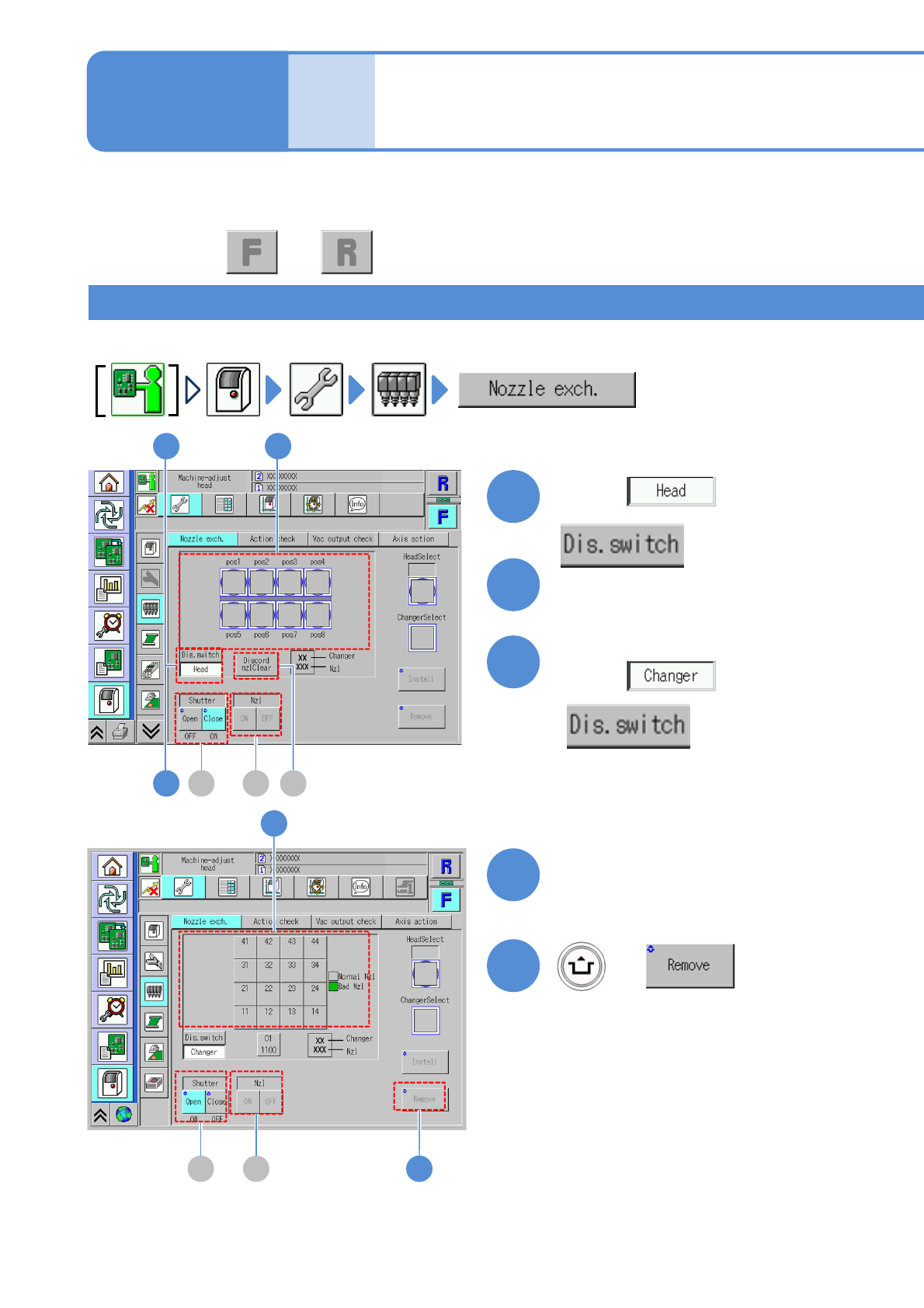

Removing nozzles

Remove nozzles on the placement head and stored into the nozzle changer.

This explains how to house some of the nozzles attached to the placement head in the nozzle changer, or

to attach some of the nozzles housed in the nozzle changer to the placement head.

Choose a nozzle to remove

(The button turns in blue color)

Choose with

Choose the position to

store the nozzle

(The button turns in blue color)

5B C

B C A

1 2

●Perform on both and .

NPM-TT2 EJM1EE-MB-05O-05

5-2-5-2

System

administration

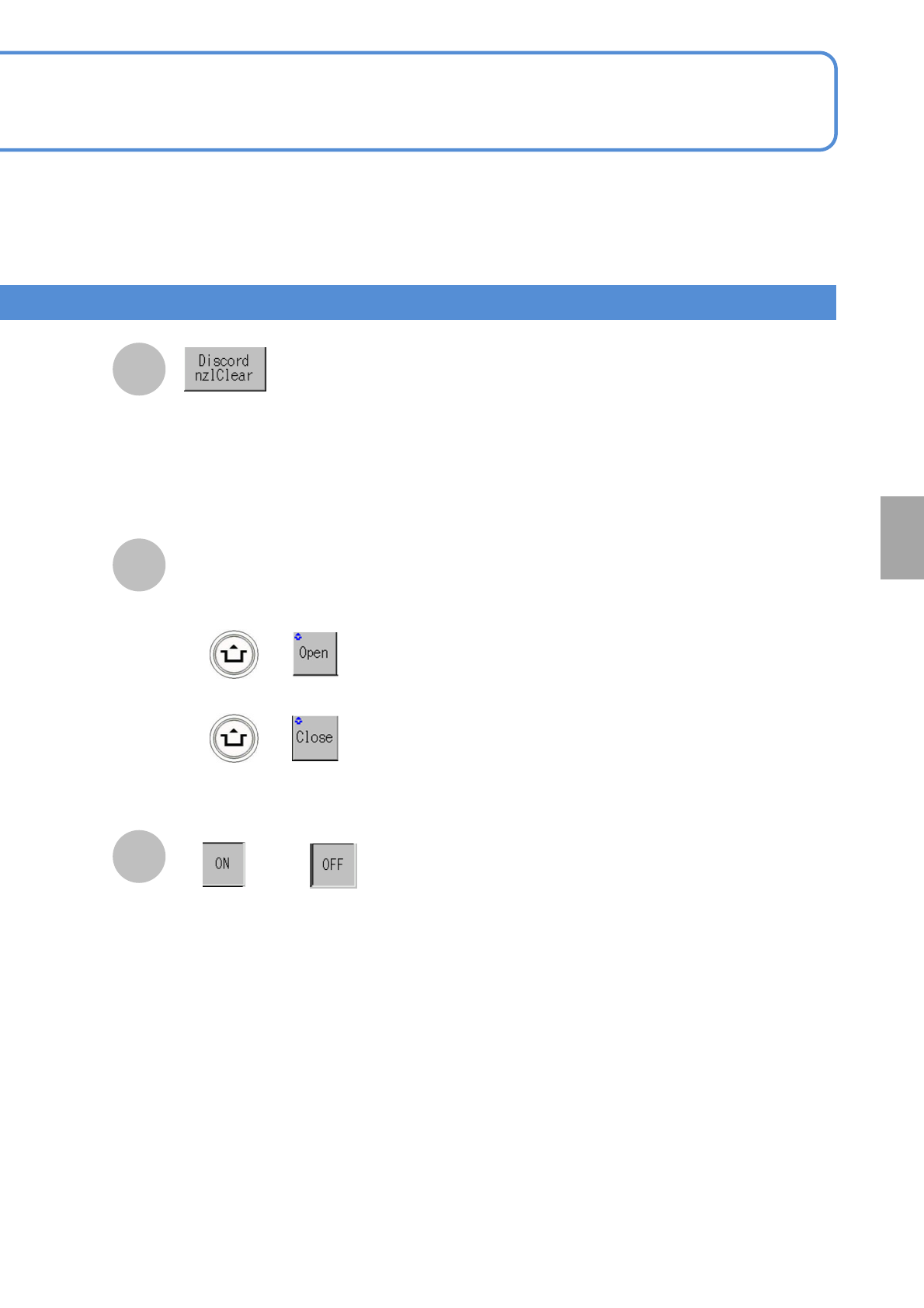

Select the presence or absence of

a nozzle.

Opening or closing of the

nozzle changer shutter

■To open the shutter

■To close the shutter

Set the nozzle positions, displayed in yellow

as discord nozzles, for Discord nzlClear.

●Nozzles, if different from the current ones

that install new production data, are

displayed in yellow.(A nozzle cannot be

attached or removed as it is)
