NPM- TT2 EJM1E E-MB-05O-05 5-2-6 -2 + System administration 4 3 3 4 H ■ If air blow and the vacuum pressure measurement r esults in e rror Confirm the message (The background of the measured value of the correspondin g n…
NPM-TT2 EJM1EE-MB-05O-05
Unit
adjust-
ment

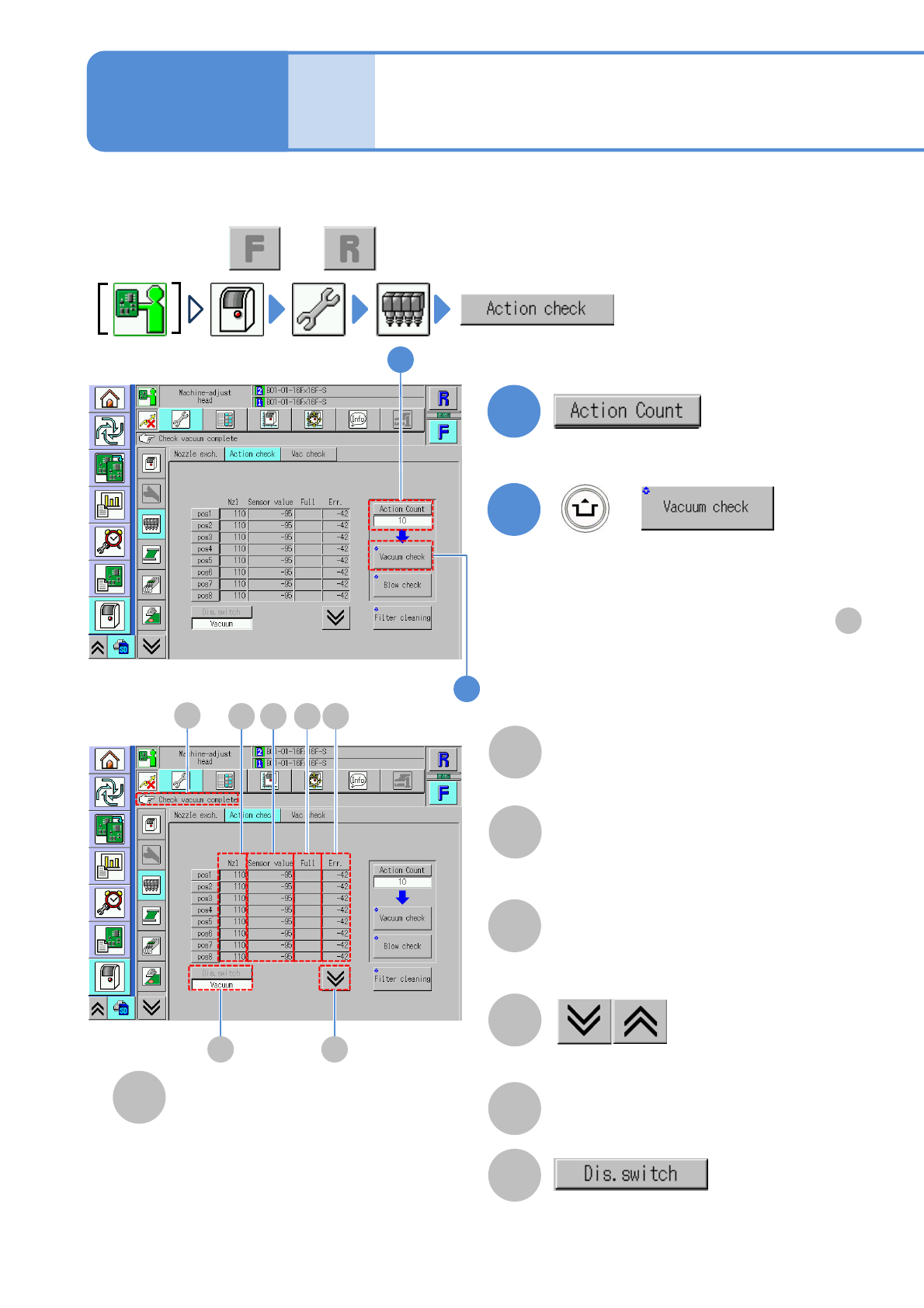

Action check of the
placement head
5-2-6-1
You can collectively check whether the actions of the placement head or nozzles are normal.
Operating procedure
5-2-6
1
+
A
B
C
D
E
F
(The vacuum check result of each nozzle
is displayed)
Nozzle
A number of a nozzle attached to the
placement head.
●”-” is displayed if any nozzle is not
attached.
Sensor value
●If the measured value is abnormal, its
background is shown in yellow.
Full
●Filter clogging detection value. Check
if the measured value is abnormal as
the result of [Filter cleaning].
The previous or next table is displayed.
Err.
●Nozzle clogging detection value. Check if
the measured value is abnormal as the
result of [Vacuum check].
Message display area
●Perform on both and .
C D
E
F
A B
G
1
2
■If vacuum check has completed successfully
[Check vacuum complete] is displayed in .
F
■If vacuum check failed to complete
successfully
The background of the measured value of the
corresponding nozzle is displayed in yellow.
2
G
●Change the action count (1 or 10).
Change the display of the measured
result.
●It is effective when more than two
measured results exist.
NPM-TT2 EJM1EE-MB-05O-05
5-2-6-2
+
System
administration
4
3
3
4
H

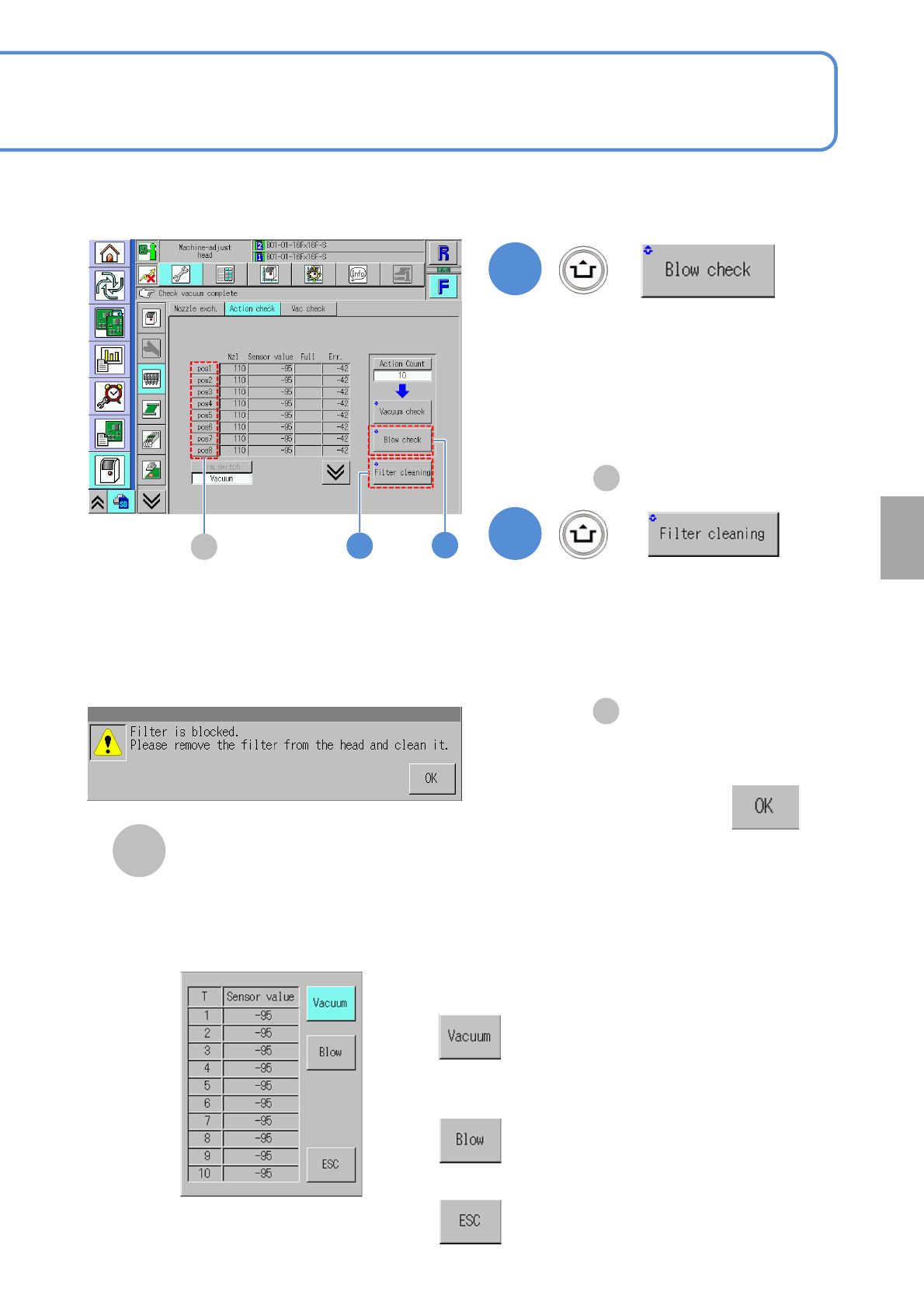

■If air blow and the vacuum pressure
measurement results in error
Confirm the message
(The background of the measured value
of the corresponding nozzle is displayed
in yellow.)
■If air blow and vacuum pressure
measurement completes without error
[Cleaning blow complete] is displayed
in .
F
+
(Air blow and the vacuum pressure of
each head (nozzles are removed) are
measured)
H
(The blow check result for each nozzle is
displayed.)
●For the measured value, only the
sensor value is displayed.
■In case blow check is successfully
completed
[Blow check completed] is shown
in .
F
pos button
It is effective only when ‘10’ is set to
‘Action count’ of Vacuum check or Blow
check is performed. Pressing each pos
button will appear the measured result
window of the selected nozzle position
as below.
■To show the sensor value of
vacuum check
■To show the sensor value of
blow check
■To close the window
NPM-TT2 EJM1EE-MB-05O-05
■With the vacuum pump turned ON, to
turn ON/OFF only the vacuum break
valve of a specified nozzle
(The pressure for the vacuum break is
displayed in the field above)
■With the vacuum pump turned ON, to
turn ON/OFF only the vacuum valve of
a specified nozzle
(The vacuum pressure is displayed in the
field below)
■To turn ON/OFF the vacuum pump
(The vacuum pump is switched ON/OFF)
■To turn ON/OFF the cleaning blow
(The cleaning blow valve is switched
ON/Off)
Unit
adjust-
ment

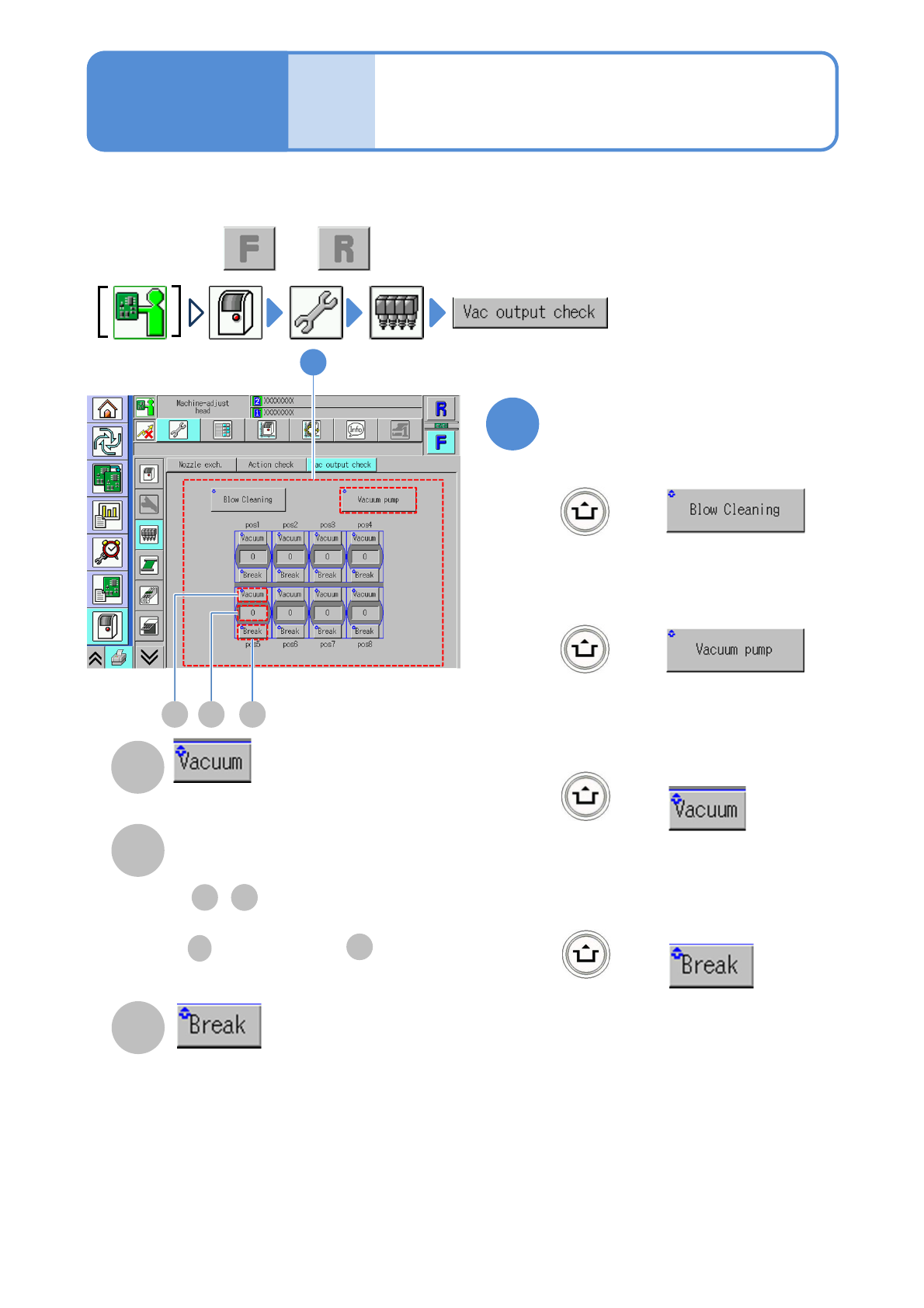

Vacuum output check
(placement head)
5-2-7
You can change the valve and check whether each of the vacuum pumps and air blows operates normal
individually.
1
A
B
C
Operating procedure
5-2-7
Air flow value
Nozzle air flow value.
Check the air flow value during
vacuuming or blowing
Vacuum valve
Vacuum break valve
1
BA C
BC
● , in 5-2-6 is displayed in
terms of 8-bit.
B
B
C
：“Sensor value” ：“Full”
+
+
+
+
●Perform on both and .
