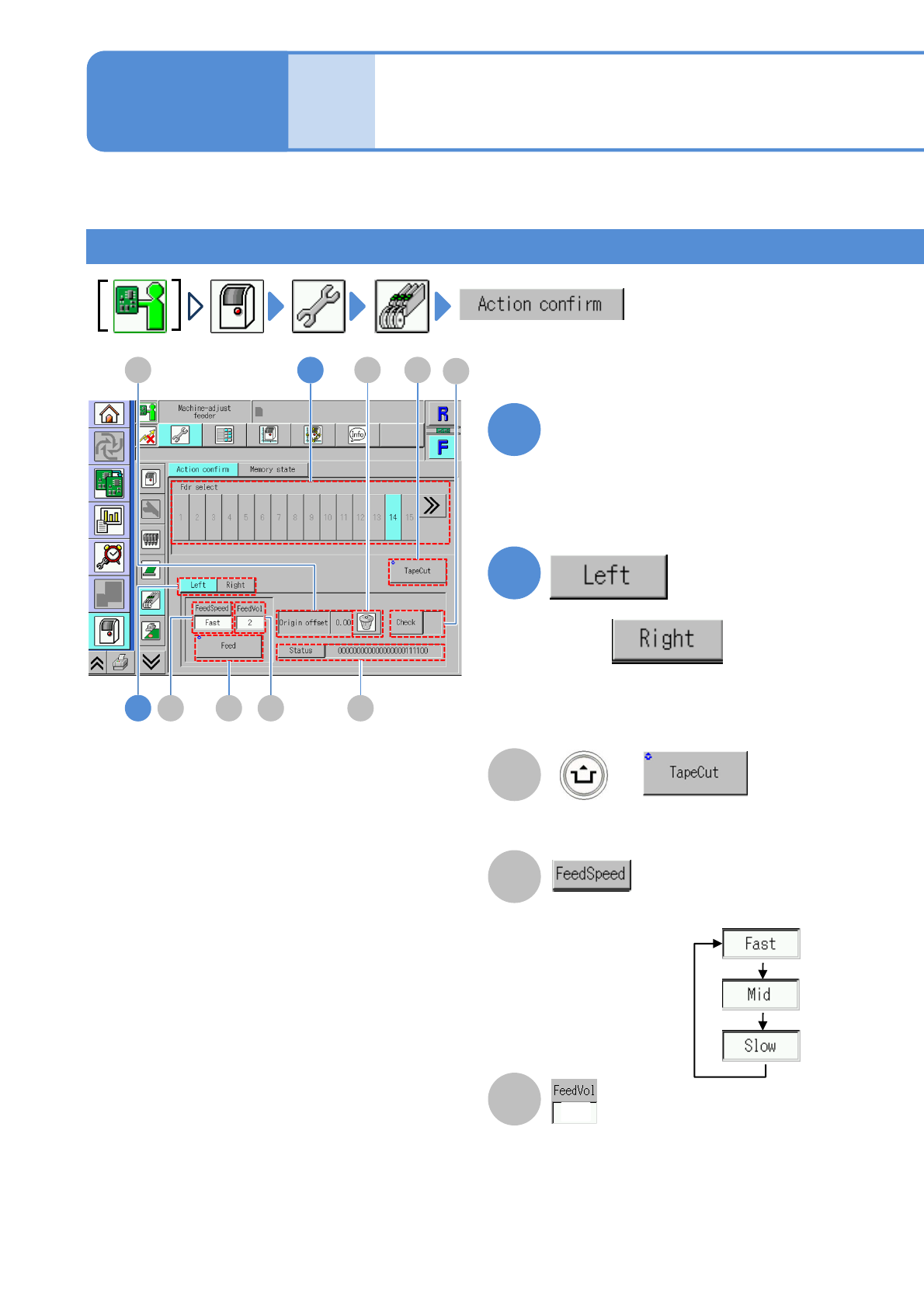

Checking feeder action
You can confirm intelligent feeder action and memory information.
Feeder information
check 1
(intelligent feeder)
+
B CD
B
C
E
2
Operating procedure
5-2-12
Choose a feeder
Tape cut operation.
Choose a feed speed.
Choose feed amount.
●Set range:1 to 40
●Unit :mm
2
or
■Only for the double tape feeder or
the thin type single feeder.
NPM-TT2 EJM1EE-MB-05O-05
5-2-12-2
F
G
+
H
D
E

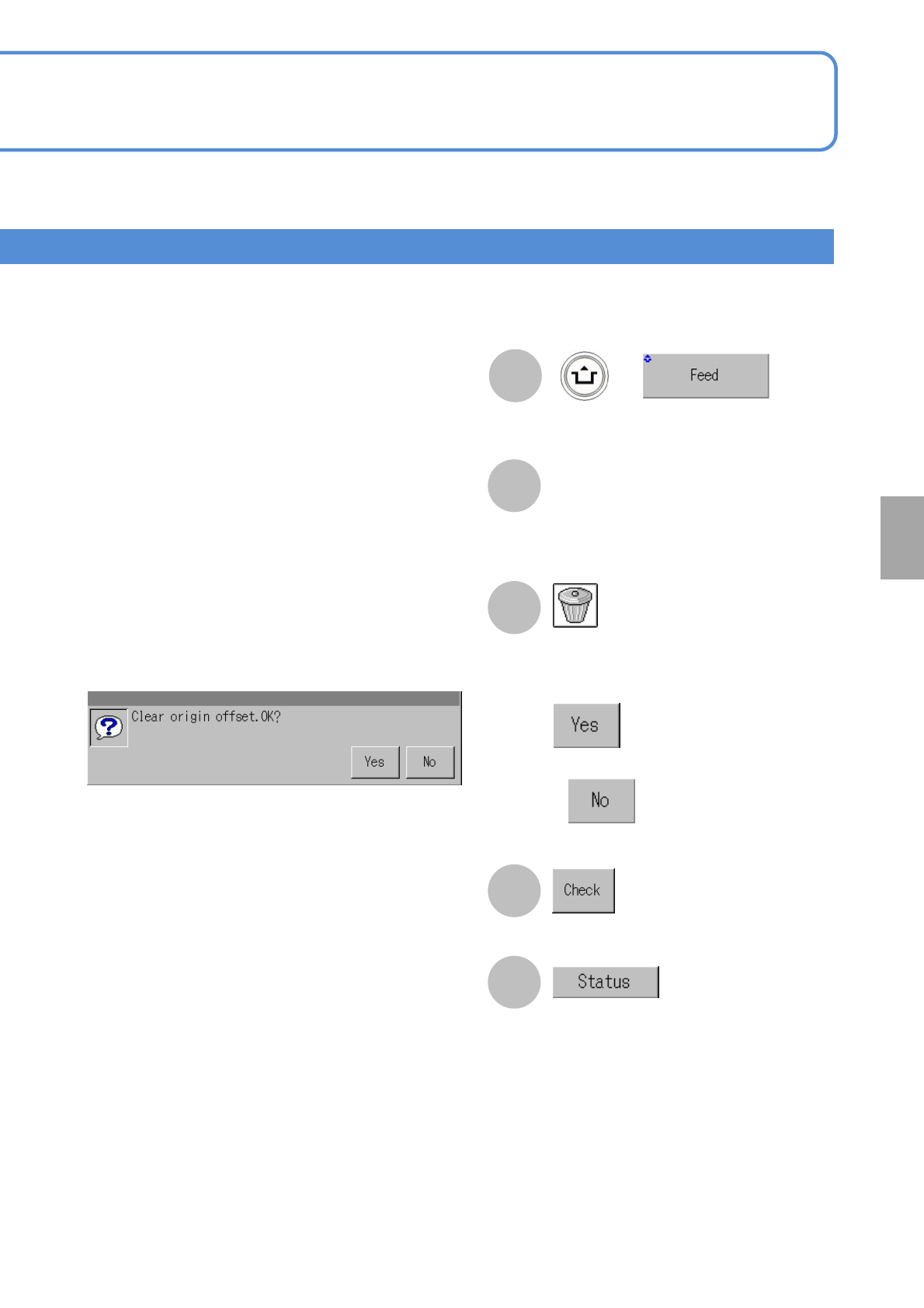

●[0] is displayed as origin offset.
Feeds the feeder being selected.
Joint sensor status is displayed.
Status information is displayed.
Displays the origin offset of the feeder
motor.
Confirm the message
■When you do not clear origin offset
