NPM-TT2 EJM1EE-MB-05O-05
Unit
adjust-
ment
5-2-12-1
A
H
G
F
1
2
A
1
Checking feeder action
You can confirm intelligent feeder action and memory information.
Feeder information
check 1
(intelligent feeder)
+
B CD
B
C
E
2
Operating procedure
5-2-12
Choose a feeder
Tape cut operation.
Choose a feed speed.
Choose feed amount.
●Set range:1 to 40
●Unit :mm
2
or
■Only for the double tape feeder or
the thin type single feeder.
NPM-TT2 EJM1EE-MB-05O-05
5-2-12-2
F
G
+
H
D
E
●[0] is displayed as origin offset.
Feeds the feeder being selected.
Joint sensor status is displayed.
Status information is displayed.
Displays the origin offset of the feeder
motor.
Confirm the message
■When you do not clear origin offset
System
administration
NPM-TT2 EJM1EE-MB-05O-05
5-2-12-3
I
1
I
Rem.
The number of remaining components in
a feeder.
Checking memory status
J
K
L
M
N
O
J K L M N O
Unit
adjust-
ment

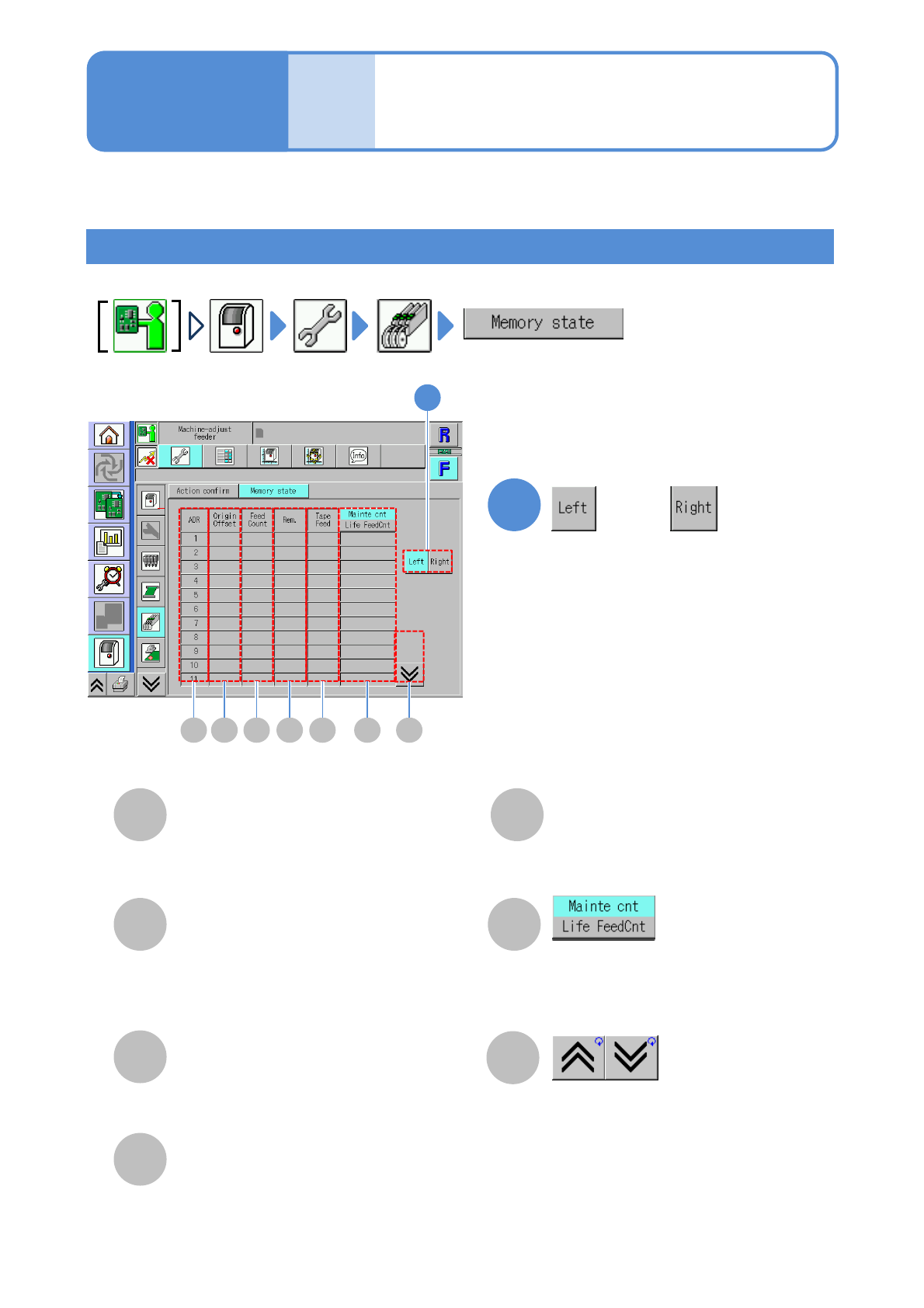

Feeder information
check 2
(intelligent feeder)
Operating procedure
5-2-12
ADR (Address)
Position to install a feeder.
Origin offset
The second origin offset of each feeder.
Tape Feed
The take-up length of a tape inside a
feeder.
●Unit: mm
Feed Count
The amount of feed.
The previous or next table is displayed.
Switches between the maintenance
count of a feeder and the total feed
count.
1
or
■Only for the double tape feeder or
the thin type single feeder.
