NPM- TT2 EJM1E E-MB-05O-05 Unit adjust- ment T r ay feeder action ch e ck 5-2-13 -1 1 A C D B A B D You can check actions of each function in a tray feeder. 2 C 1 2 E Operating procedure 5-2-13 Lifter position Pallet num…
NPM-TT2 EJM1EE-MB-05O-05
5-2-12-4
System
administration
NPM-TT2 EJM1EE-MB-05O-05
Unit
adjust-
ment

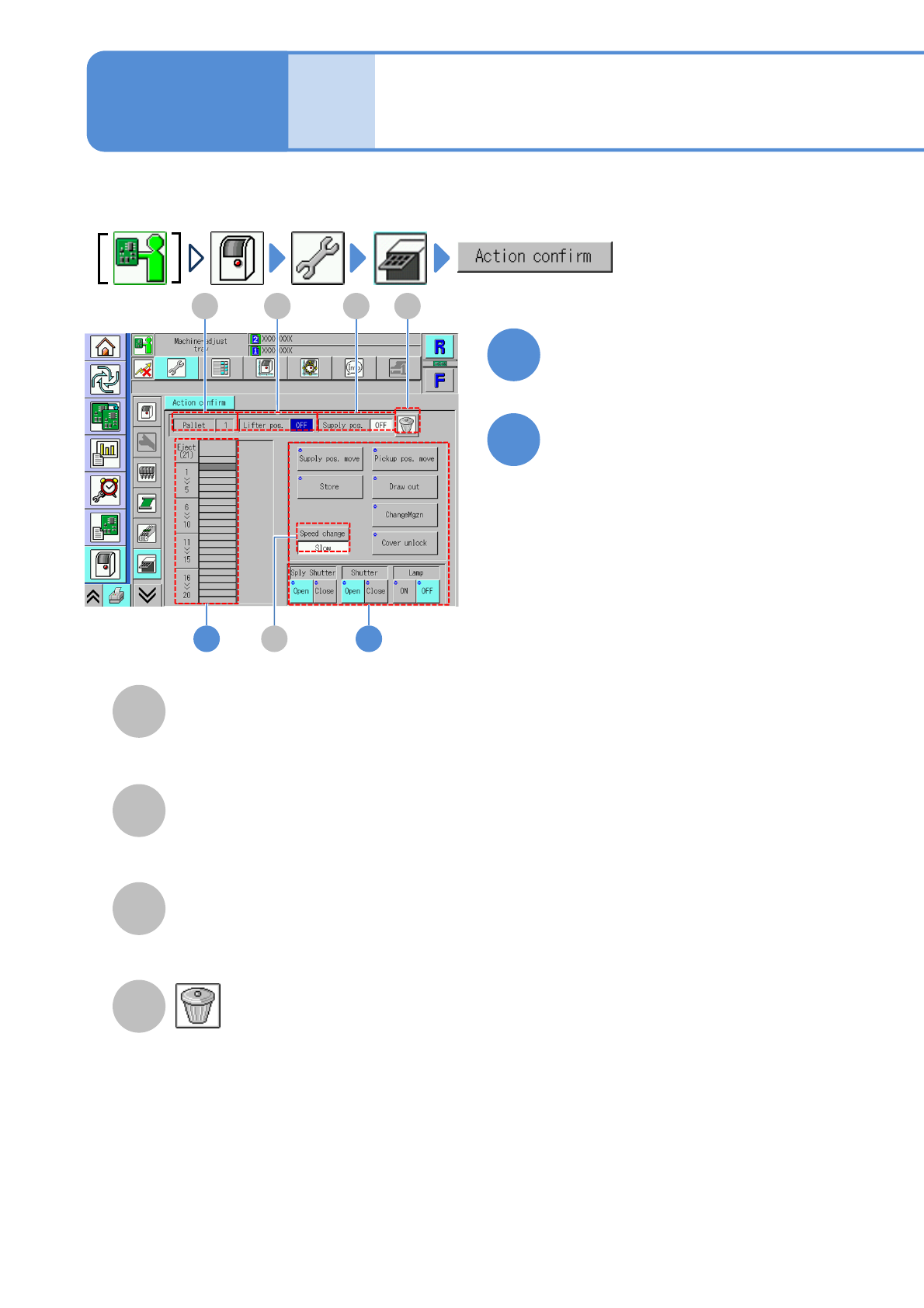

Tray feeder action
check
5-2-13-1
1
A C DB
A
B
D
You can check actions of each function in a tray feeder.
2
C
1
2
E
Operating procedure
5-2-13
Lifter position
Pallet number on Lifter.
If the above button is pressed after
selecting the [Lifter position] or [Supply
position, [None] is shown in the
corresponding field.
Selected pallet
Selected pallet number.
●The ejection pallet is displayed as [21].
Supply position
Pallet number at Supply position.
Choose a pallet
Check action
NPM-TT2 EJM1EE-MB-05O-05
Button Action
A＋
Moves a pallet to the
supply position.
Moves a pallet to the
pickup position.
Stores a pallet to the
magazine.
Draws out a pallet from
the magazine.
Replaces a magazine.
Unlocks a magazine cover.
Opens the supply shutter.
Closes the supply shutter.
Opens the magazine
shutter.
Closes the magazine
shutter.
Turns ON the lamp.
Turns OFF the lamp.
5-2-13-2
E
+
+
●

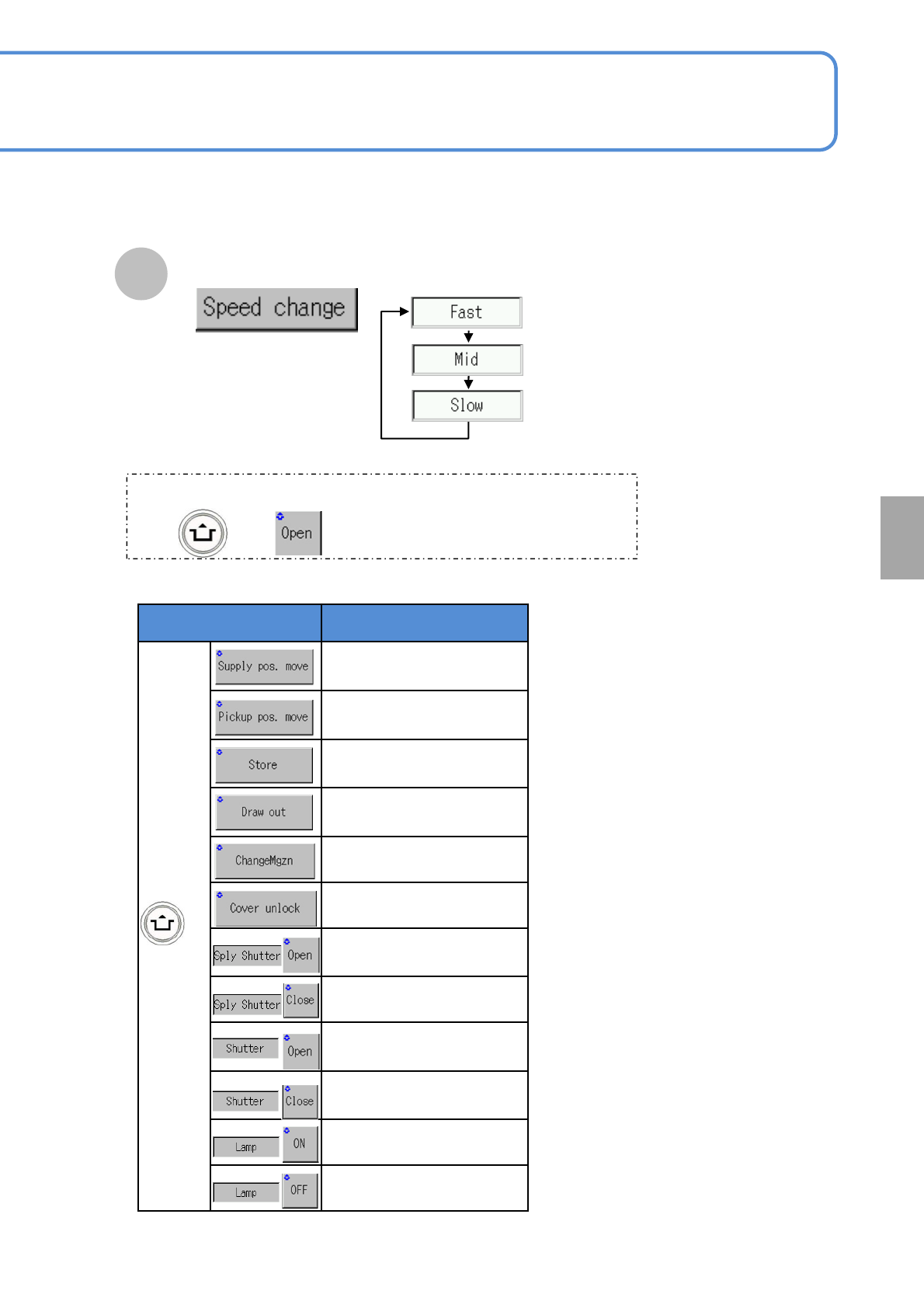

■To change a pallet moving speed
Choose a pallet moving
speed.
■To perform other actions
■How to view the table below (*when opening the supply shutter)
(the supply shutter)
