NPM-TT2 EJM1EE-MB-05O-05
5-3-8
Machine
parame-
ter

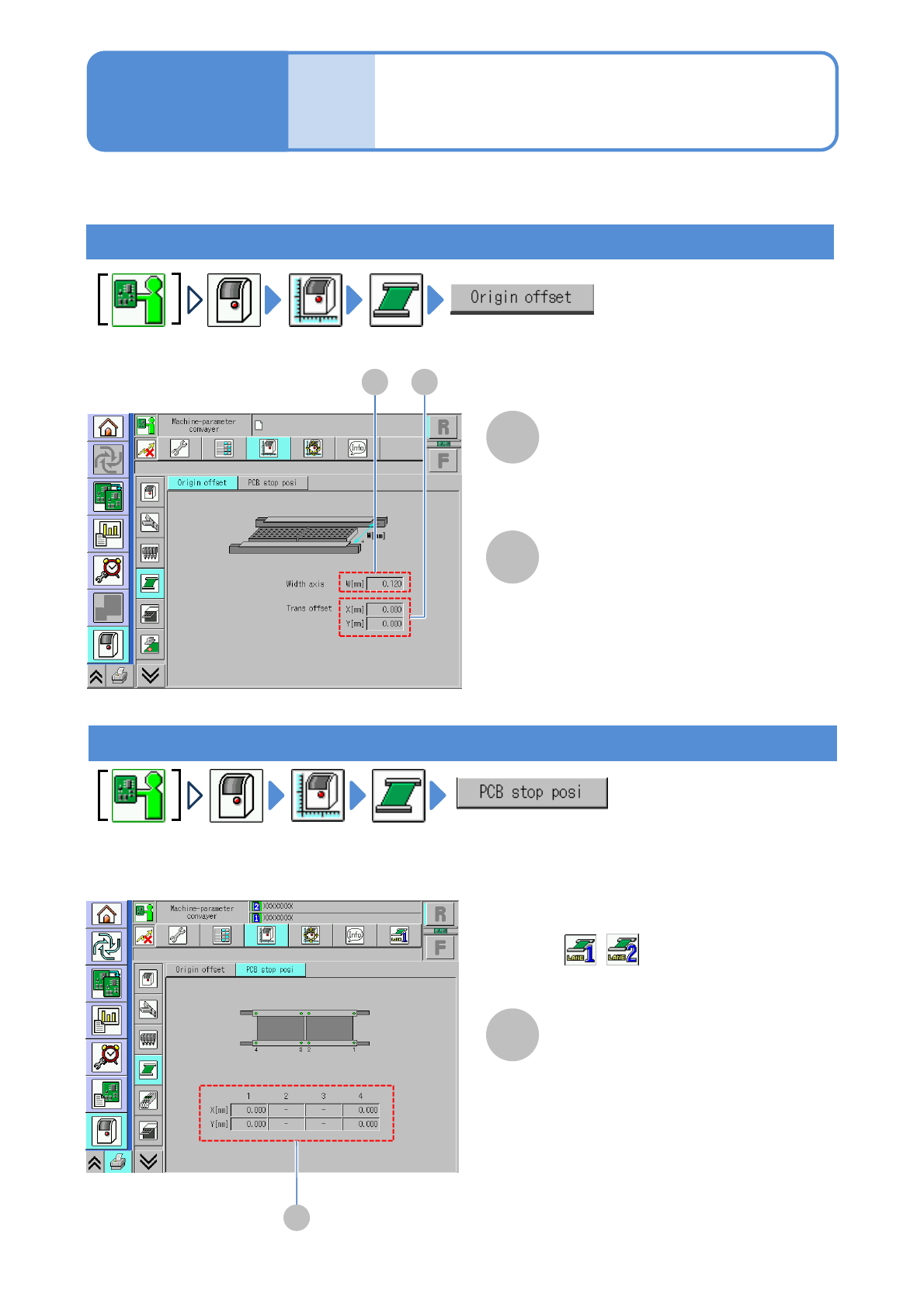

Conveyor origin offset
check
A
A
B
B
Checking origin offset
Checking PCB stop position offset
A
A
You can check conveyor origin offset (calibration result) and PCB stop position offset.
●For dual conveyor, you need to choose a lane in advance.
Operating procedure
5-3-8
Width axis
Conveyor width offset.
Trans offset X[mm]/Y[mm]
Offset to calibrate an error occurring in
conveyor unit assembly.
PCB stop position offset
X[mm]/Y[mm]
■For dual conveyor
(Select a lane in advance)
NPM-TT2 EJM1EE-MB-05O-05
5-3-9
Machine
parame-
ter
Head camera offset
check
設備に設置されているフィーダーのメモリー情報を表示します。
Checking magnification and offset
Checking light luminosity
A
A
A
A
B
B
Light
type
Color Description
Coax Peach
Luminosity offset
of coaxial light.
Hangle Red
Luminosity offset
of high angle light
Mangle Brawn
Luminosity offset
of medium angle
light
Langle Orange
Luminosity offset
of low angle light
Operating procedure
5-3-9
Mgfc. X[mm/pix]/Y[mm/pix]
Magnification of the head camera set to
the recognition device.
●Used in calculating PCB recognition.
Offset X[mm]/Y[mm]/ θ[°]
Offset of position that moves when
recognizing with the recognition camera.
Light luminosity offset
System
administration
NPM-TT2 EJM1EE-MB-05O-05
5-3-10-1
Machine
parame-
ter
Multi-recognition
camera check 1
Operating procedure
5-3-10
設備に設置されているフィーダーのメモリー情報を表示します。
Checking camera magnification/offset
You can check the offset values (calibration result) of the Magnification/Light luminosity/Lamp value of the
multi-recognition recognition camera.
C
A
B
Mgfc.
Magnification of the multi-recognition
camera set to the recognition device.
●Used in calculating component
recognition.
Offset
Offset of position that moves when
recognizing with the recognition camera.
Choose a nozzle corresponding to the
values that you want to display in [Offset].
(Only for the 8-nozzle head)
B
C
A
D
Offset of tilt of the multi-recognition
camera against the X-axis.
D
Sensor angle [ °]
