NPM- TT2 EJM1E E-MB-05O-05 5-3-1 1 Machine parame- ter T r ay origin of fset/ pic kup position c hec k Checking pickup position offset A A Checking origin offset value A B A B You can check the tray feeder for the pickup…

100%1 / 512
NPM-TT2 EJM1EE-MB-05O-05
5-3-10-3
Machine
parame-
ter
Multi-recognition
camera check 2
Operating procedure
5-3-10
A
Light mode
●Transparency: Transparency mode
●1: Reflection 1 mode
●2: Reflection 2 mode
●BGA: Reflection BGA mode
設備に設置されているフィーダーのメモリー情報を表示します。
Multi-recognition camera lamp value
B
Light
C
Standard value
Lamp standard value for each light
mode.
D
Offset
Lamp offset for each light mode.
Display Color Type
Transparency Red
Transparency
lighting
Reflection Brown
Reflection
lighting
Side Peach Side lighting
PIP Orange
PIP lighting
(option)
Enlarged drawing of
H
E
G
F
Side lighting
Transparency lighting
Reflection lighting
H
PIP lighting (option)
A B C D
H
F E
G
E
F
G
NPM-TT2 EJM1EE-MB-05O-05
5-3-11
Machine
parame-
ter
Tray origin offset/
pickup position check
Checking pickup position offset
A
A
Checking origin offset value
A
B
A
B
You can check the tray feeder for the pickup position offset of the tray feeder and the origin offset values of
TP-/TL-axes.
Operating procedure
5-3-11
●TP [mm]
Origin offset of TP-axis of the tray
feeder.
●TL [mm]
Origin offset of TL-axis of the tray
feeder.
Origin offset
Position offset X[mm]Y[mm]
Position offsets of marks A and B in X-
/Y-directions.
Position offset Z[mm]
Position offsets of mark C, D and E in Z-
direction.
System
administration
NPM-TT2 EJM1EE-MB-05O-05
Machine
parame-
ter

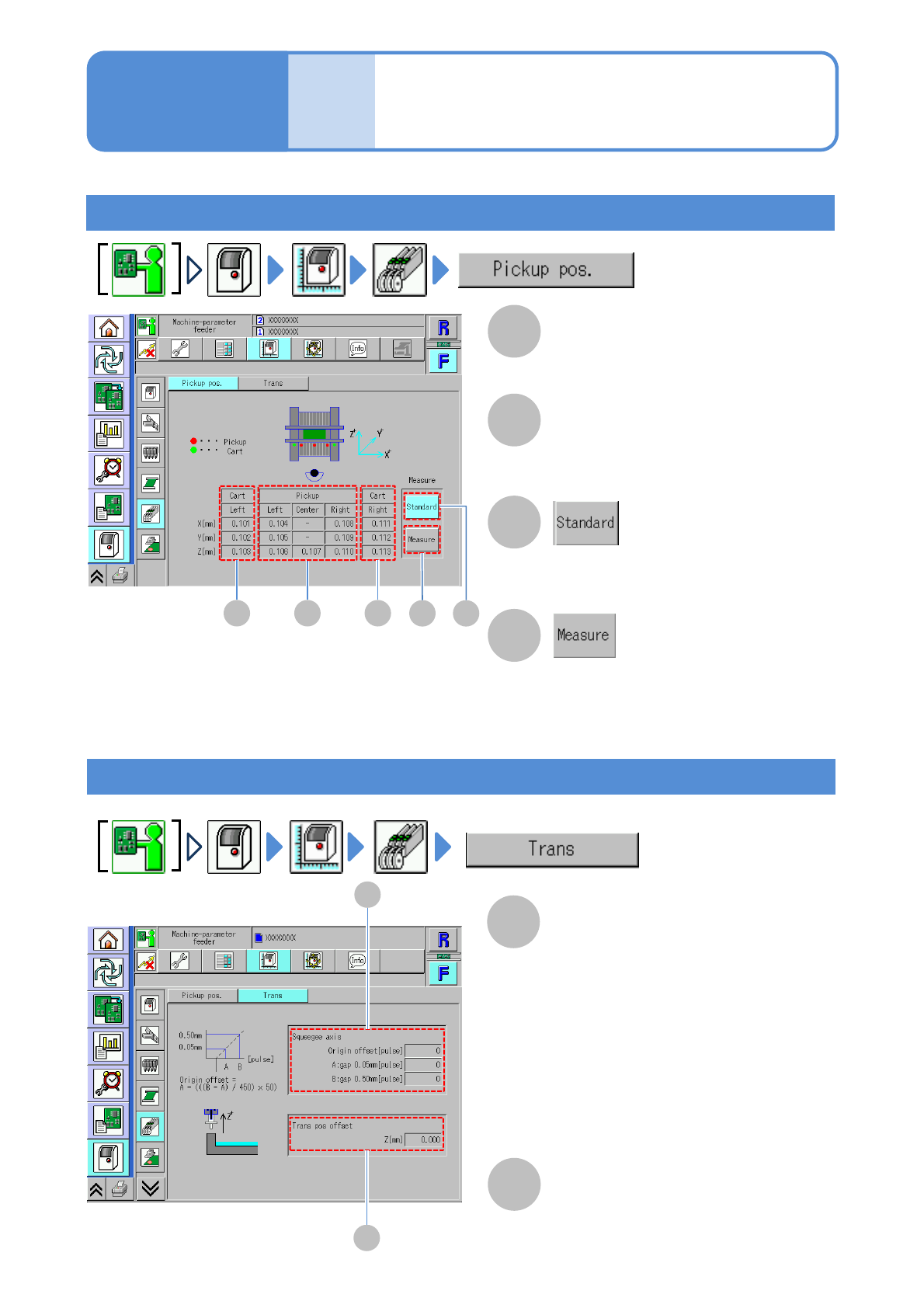

Feeder pickup position/
transcription position offset
check
5-3-12
Operating procedure
5-3-12
Feeder pickup position
A
B
Transcription position offset
A
B
A
B
Cart position offset
X[mm]/Y[mm]/Z[mm]
Position offset of the right/left carts.
Pickup position offset
X[mm]/Y[mm]/Z[mm]
Offset of feeder pickup position.
(X-/Y-/Z-coordinates)
Squeegee-axis offset
Trans pos offset Z[mm]
●Origin offset [pulse]
Origin offset of squeegee-axis.
●A: Gap 0.05mm[pulse]
Offset of the point A on squeegee-axis
(0.05mm position).
●B: Gap 0.50mm[pulse]
Offset of the point B on squeegee-axis
(0.50mm position).
Offset of transcription position in Z-axis
direction.
A B A
CD
C
D
Displays all values measured during
calibration. For the value shown as “－”,
it is measurement non-target data.
Displays the value measured when
pickup action is performed after feeder
cart is re-attached. Displays only the
value of a cart.
