System
administration
Machine
parame-
ter
Operating procedure
5-3-13
B
A
C

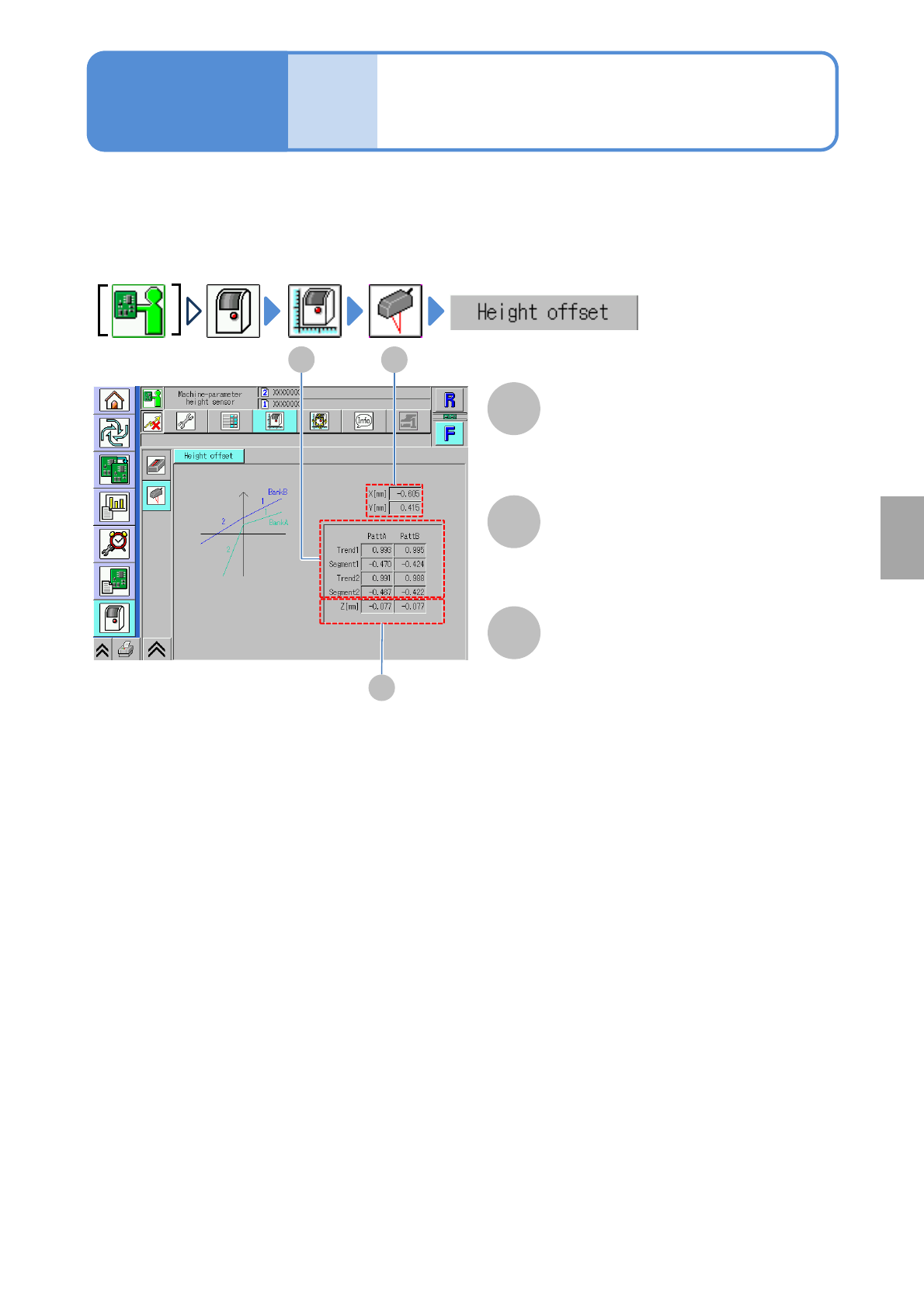

You can check the sensor offset value (calibration result) of the height sensor.
●Bank A, Bank B・・・Measurement range (resolution) of the height sensor can be changed.
On bank A and B, values measured in each range are used.
●For the dispensing head, only bank A is used.
A
B
X[mm]Y[mm]
Offset values of the height sensor
installation position.
C
Z[mm]
Offset values of the height sensor and
the standard nozzle.
Tilt, Section
Correction coefficient values for
calculation of the height sensor.
Height sensor offset
check
