NPM-TT2 EJM1EE-MB-06O-04
Specifi-
cation
Applicable PCB
specifications 2
6-1-4-3
Operating procedure
6-1-4
Item Specification
PCB
recognition
mark

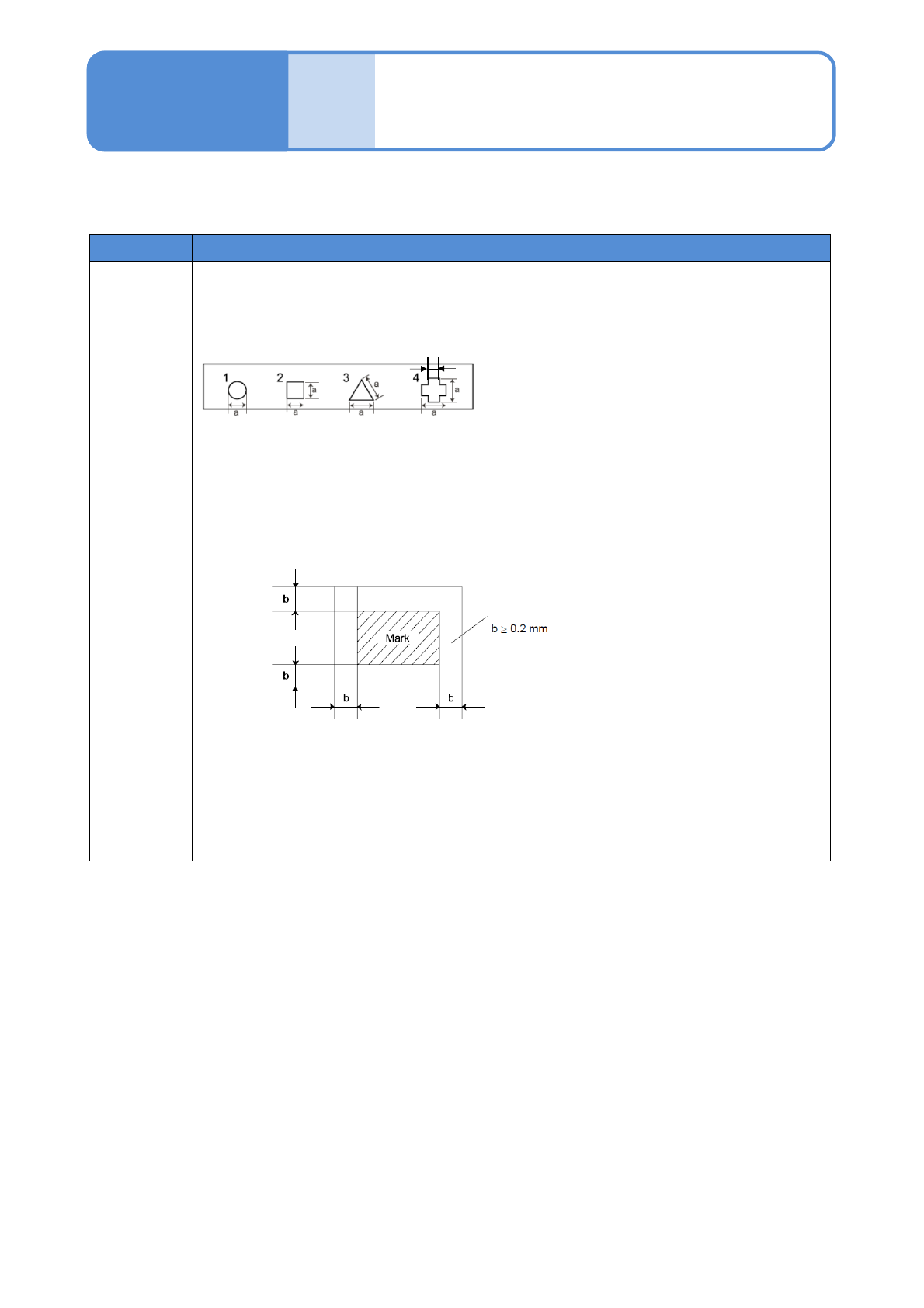

■Examples of mark shape
●PCB recognition implements compensation through the use of the physical relationship
between recognition marks and a circuit pattern.
●A fixed contrast is required between recognition marks and a PCB.
■Recognition mark dimensions and background
●The background of a mark requires the noninterference area - larger than certain
dimensions- outside the mark itself.
●Marks are not always black in color.
■Recognition mark position
●Two PCB recognition marks are required on opposing corners of a PCB.
Triangle on the 3rd figure on the left:
Equilateral triangle
Line width on 4th figure on the left:
0.3 mm or more
0.5 mm ≦ a ≦ 1.6 mm
0.3 mm ≦ c
c
Noninterference area
NPM-TT2 EJM1EE-MB-06O-04
At
a glance
Specifi-
cation
6-1-5-1
Item Specification
Component
Dimensions: Max 150 25 mm (Diagonal side 152.1 mm)
Thickness: Max 30 mm
Mass: Max. 30 g
Tray
■Tray outside dimensions
●Max.
L 230 W 335 H33mm
●Min.
L 85 W 100 H2mm
■Relationship between component pickup surface and position error
●The component pickup surface
should be flat.
■Warp (Clearance)
■Type
●For enough strength and dimensional accuracy, a tray should be injection-molded.
●Other than the above, we check your sample trays and suggest optional trays or
customization on costs.
■Loading the tray feeder pallet (option), the tray feeder magazine (option)
Condition
●Weight of a tray (including components) on a tray feeder pallet : 1 kg or less.
●Weight of a tray feeder magazine (including a tray feeder pallet, a tray, components) : 20
kg or less per magazine.
●Limitation of a tray feeder pallet insertion
・11 mm ＜ tray height ≦ 26 mm ・26 mm ≦ tray height ≦ 33 mm
2to33mm
Component pickup surface Position error
10 10 mm or less 1.0 mm or less
10 10 mm or over 1.5 mm or less
Maximum 0.5 mm
Component tray
Tray
Not Insertable
at the top
Pallet
Magazine
Tray
Not insertable
at the top and
second level
Pallet
Magazine
Tray
Tray
Max. 335 mm
Operating procedure
6-1-5
Clearance
Clearance
Xw ＋ Position error
Yw＋Position
error
Tray setting
reference point
(Tray origin)
Tay
Component
X
Y
Pocket
Component/tray
specifications Intelligent
feeder specifications 1
NPM-TT2 EJM1EE-MB-06O-04
Specifi-
cation
6-1-5-2
Operating procedure
6-1-5
Intelligent feeder
Feeder type
Tape
width
(mm)
Type
Reel
diameter
*1）
Installa-
tion pitch
(mm)
Max.
depth of
boss
(mm)
Maximum
number of
reels being
installed
*6)
Single tray feeder
+13-slot supply unit
coupled
Maximum number of
reels being installed
*2)
Feed pitch (1 pitch = 4 mm)
0.25 0.5 1 2 3 4 5 6 7 8 9 10 11 12 13 14
8 mm
Double T/F
*3)
8
Paper
Embossed
Small 21
3
120 52
●
1mm
●●
Large 21 60 26
8 mm
Double T/F
*3)
(for 0402)
8
Paper
Embossed
Small 21
3
120 52
●●
Large 21 60 26
8 mm
Single T/F
8
Paper
Embossed
Small 21
360 26
●
1mm
●●
Large 21
8 mm
Single T/F
(for 0402)
8
Paper
Embossed
Small 21
360 26
●●
Large 21
4 mm
Thin type single
T/F
*9)
4 Embossed Small 10.5 0.5 120 52
●
1mm
8 mm
Thin type single
T/F
*9)
(from 0402)
8
Paper
Embossed
Small 10.5
3
120 52
●
1mm
●●
Large 10.5 60 26
12 mm
16 mm
Shared T/F
12 Embossed
Small 21 15 60
26
●●●●
Large 21 15 60
16 Embossed Large 21 15
60
*7)
24 mm
32 mm
Shared T/F
24 Embossed
Large
42 15 28
12
●●●●●●●●
32 Embossed
Large
42 15 28
44 mm
56 mm
Shared T/F
44 Embossed
Large
63
15
18
8
●●●●●●●●●●●●●
21
56 Embossed
Large
63
15
18
21
72 mm T/F 72 Embossed
Large
84
15 14
6
●●●●●●●●●●●●●
21
88mm T/F
*4)
88 Embossed
Large
105 21 12 4
●●●●●●●●●●●●●
104 mm
T/F
*4)
104 Embossed
Large
126 21 8 4
●●●●●●●●●●●●●
32 mm
Adhesive T/F
*5)
32 Adhesive
Large
63 2.8 18 8 3 (12 mm)
*1)
Small reel: φ178 mm, Large reel: φ 178 mm to φ 382 mm
*2) Maximum number of reels being installed when the single tray feeder is coupled with the 13-slot
supply unit.
*3) Two small reels can be set.
Small and large reels cannot be set in the same slot of the reel container.
*4) Only for a joint detection sensor equipped.
*5) No joint detection sensor equipped.
*6) Maximum number of reels being installed when the feeder carts (option) are coupled to both two
stages.
*7) Maximum number of reels being installed may be reduced depending on the reel width.
*8) T/F : tape feeder
*9) The thin type single feeder can be used in NPM series and AM100.
When the thin type single feeder is installed, “Attachment for thin type single feeder” is required for
each slot.
A
small and large reels cannot be set in the same slot of the reel storage unit.
●Common to CM101, CM212, CM232, CM400 series, CM602, DT401, NPM series and AM100.
Component/tray
specifications Intelligent
feeder specifications 2
