NPM- TT2 EJM1EE-SF-01N-05 1-4 -6 Rear side ■ Laser class label affixed on the unit Confirmation

NPM-TT2 EJM1EE-SF-01N-05

Precautions 3

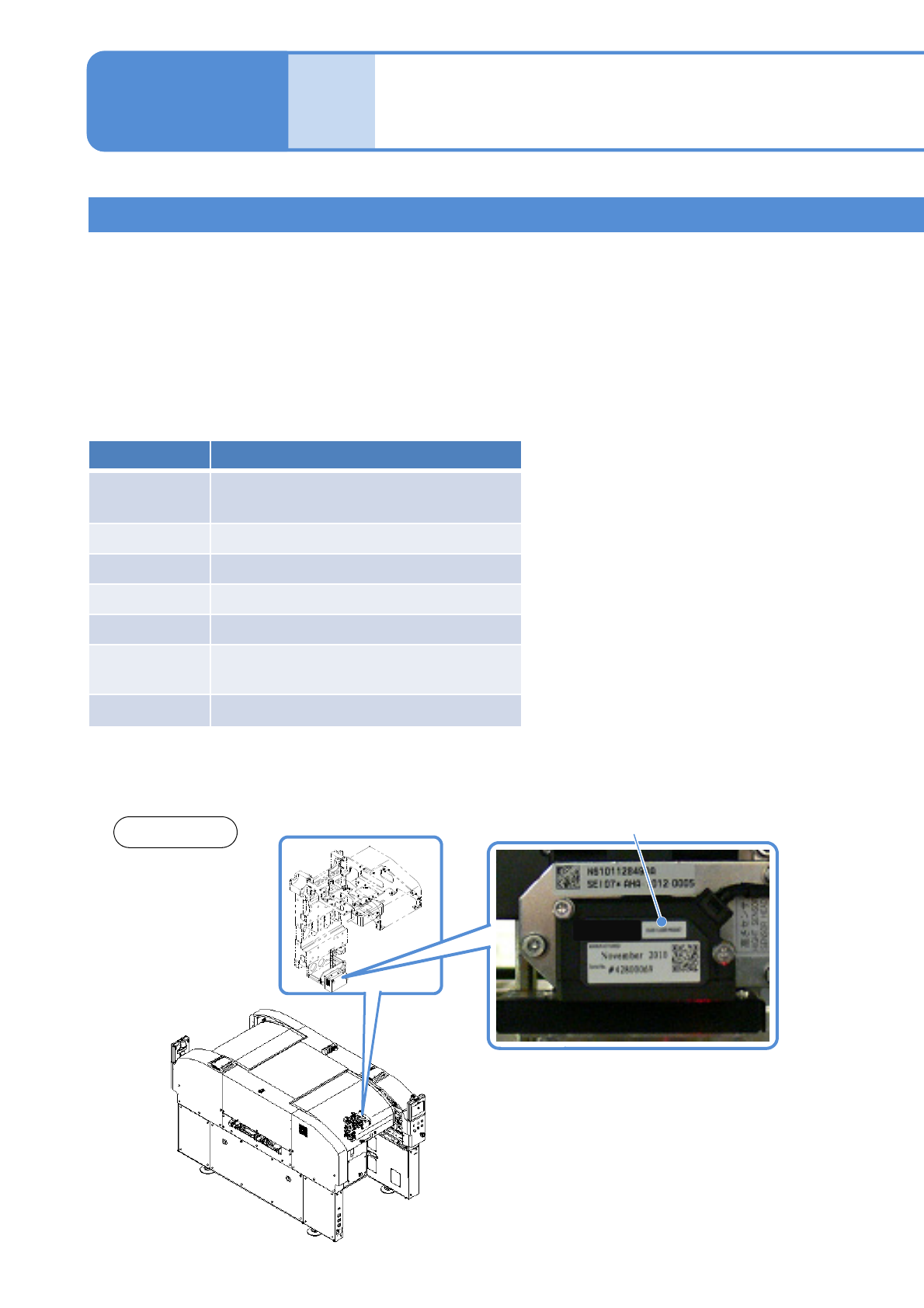

Handling of the height sensor

Item Laser specifications

Manufacturer

Panasonic Smart Factory Solutions

Co., Ltd.

Model number

N610166559AA

Wavelength

655 nm

Output

220 μW

Class

Class 1

Installation

position

See below

Regulation IEC60825-1 2007

1-4-5

1-4

Front side

●The height sensor complies with the class 1 (IEC60825-1) level of the laser safety standard, so it is

basically safe under the normal use. Do not directly look into during maintenance or operation.

■Never look it into directly.

■Height sensor specifications

●The height sensor can be installed to the X-unit in the front and rear of the machine.

Output of laser elements is maximum of 220 μW. The sensor head does not have mechanism to stop

emission of the laser beam while disassembled. If disassembled, you may be exposed by laser radiation.

Never disassemble the sensor head.

■ Laser class label affixed on the unit

CLASS 1 LASER RPODUCT

NPM-TT2 EJM1EE-SF-01N-05

1-4-6

Rear side

■ Laser class label affixed on the unit

Confirmation

NPM-TT2 EJM1EE-SF-01N-05

1-4-7

1-4

Precautions 4

■Do not hold the handles of loaded feeders or the feeder table when

carrying the feeder cart. Doing so can deform the feeders’ handles or

the table mounting bracket.

●Raise the handle bar and make sure that its guide pipe fits tightly into place.

●Use the dedicated handle bar when you move the feeder cart.

Handle bar

Feeder tableFeeder

Make sure to observe the following precautions before handling the

feeder cart to ensure its safe and proper use.

Guide pipe

Handling of the feeder cart

* The picture shown below may differ from the actual unit.
