5 Cleaning

5.2 Removing the parts to be cleaned

82 User Manual SIPLACE Linear Dipping Unit 2 X 05/2020

5.2 Removing the parts to be cleaned

NOTICE

Observe the exact order

It is important to perform the steps for removal of the parts to be cleaned in the sequence

described here.

► In the station software, select the Setup

view(1) and then the Locations area (2).

► Select the Table (3) on which the LDU is

set up.

► Select the icon of the LDU(1).

► Click on the Settings... button (2).

► Select the Cleaning tab.

Releasing the flux tank

Prerequisites: Park plate and dipping plate are fitted.

5 Cleaning

5.2 Removing the parts to be cleaned

User Manual SIPLACE Linear Dipping Unit 2 X 05/2020 83

► Click on the Unhook flux tank button.

(1) The LDU moves the squeegee over the dip-

ping plate.

(2) The lifting axis is lowered and the flux tank is

released.

(3) The LDU moves the squeegee slightly back

over the park plate.

► Make sure that the flux tank is completely

released.

Removing the flux tank and the dipping plate

Prerequisites: The park plate and the dipping plate are fitted.

► Click on the Remove dip plate button.

(1) The LDU moves the squeegee back over the

park plate and the dipping plate with the flux

tank is lifted.

(2) Rotate the flux tank on the dipping plate by

approx. 90°.

(3) Remove the dipping plate together with the

flux tank.

5 Cleaning

5.2 Removing the parts to be cleaned

84 User Manual SIPLACE Linear Dipping Unit 2 X 05/2020

NOTICE

Avoid leakage of flux

When removing the flux tank and the dipping plate leave the flux tank on the dipping plate

so that remaining flux cannot leak out of the flux tank and contaminate the LDU. The remo-

val is easier when you rotate the flux tank on the dipping plate by approx. 90° without lifting

it.

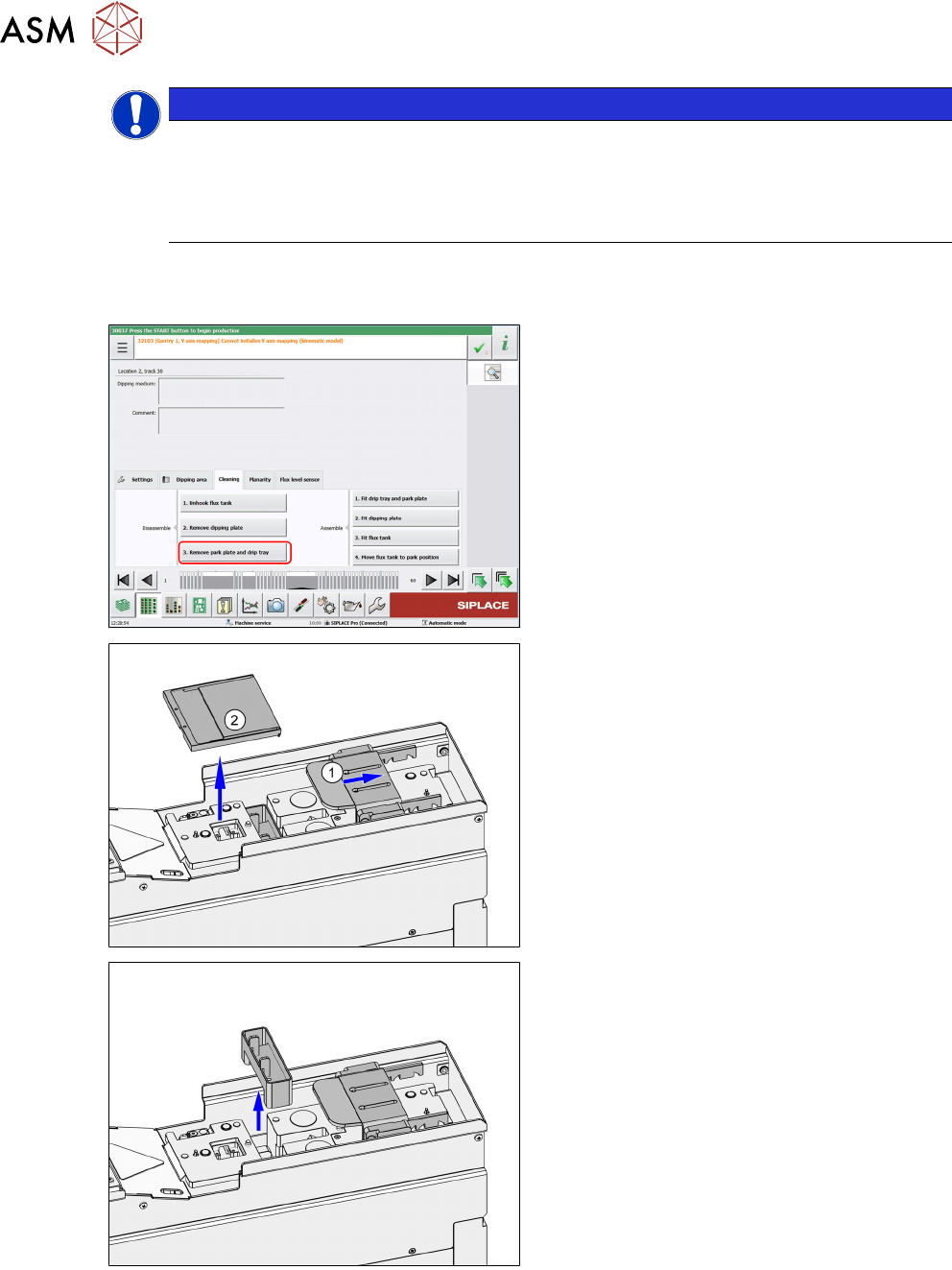

Removing the park plate and the drip tray

Prerequisites: The park plate and drip tray are fitted. The dipping plate is removed.

► Click on the Remove drip tray and park

plate button.

(1) The LDU moves the lifting axis backwards

and the squeegee to the front.

(2) Remove the park plate.

► Remove the drip tray.
