5 Cleaning
5.3 Cleaning the dipping components
User Manual SIPLACE Linear Dipping Unit 2 X 05/2020 85
5.3 Cleaning the dipping components
CAUTION
Scratching of parts
The parts to be cleaned are sensitive and scratch easily.
► Do not use any spatulas or scrapers made of metal.
► Do not use sharp-edged tools.
Rough cleaning
► Remove any excess flux. Use a wooden or plastic spatula or scraper and cleansing tissues.
Fine cleaning
► Place the parts in a tub.
► Clean the parts thoroughly with a brush and cleaning agent.
► Take the parts out of the tub.
► Dry the parts with lint-free cleansing tissues.

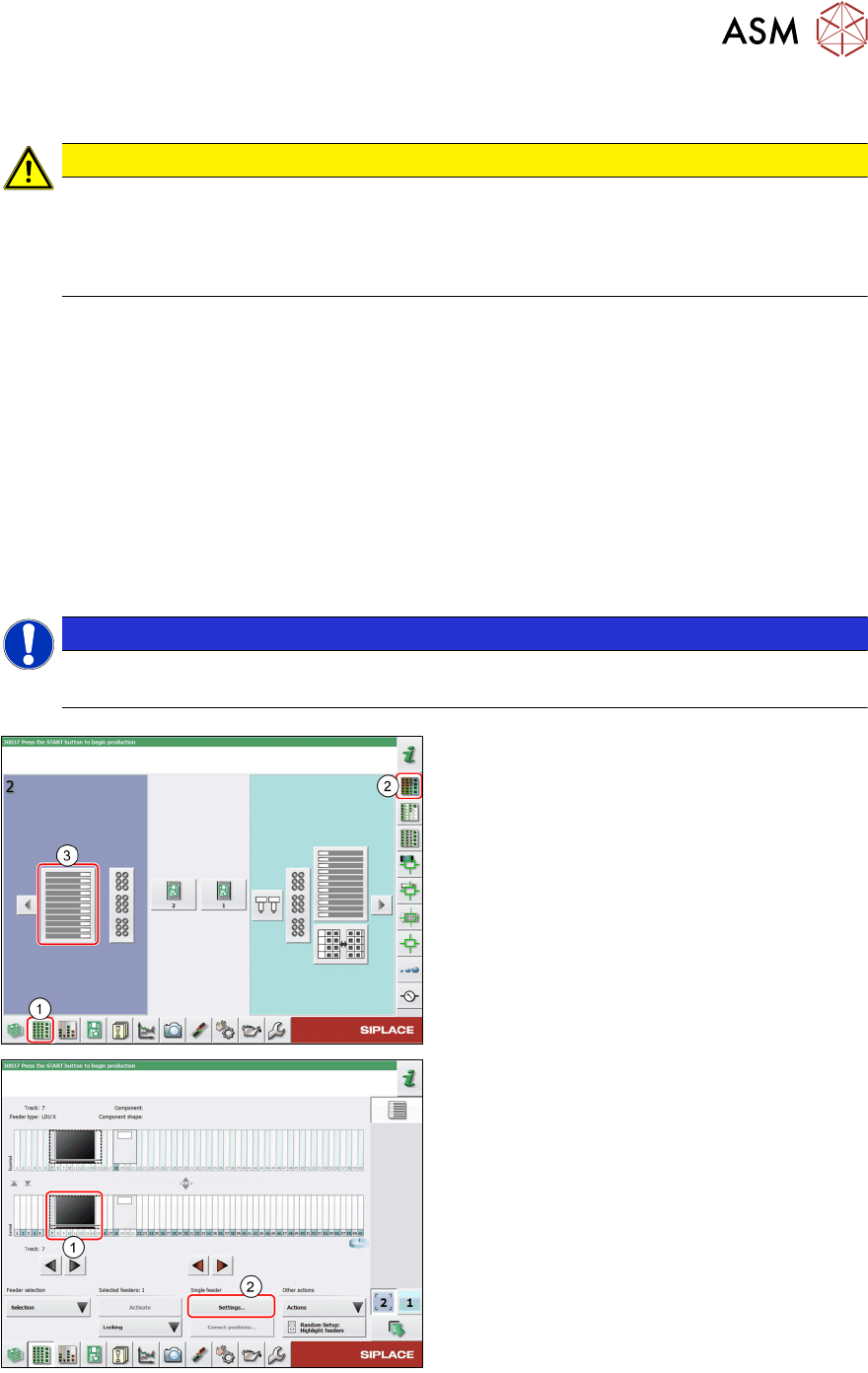

5.4 Refitting the cleaned parts
NOTICE
Observe the exact order
It is important to perform the steps for fitting the parts in the order described here.
► In the station software, select the Setup
view(1) and then the Locations area (2).
► Select the Table (3) on which the LDU is
set up.
► Select the icon of the LDU(1).
► Click on the Settings... button (2).
5 Cleaning
5.4 Refitting the cleaned parts
86 User Manual SIPLACE Linear Dipping Unit 2 X 05/2020
► Select the Cleaning tab.
Fitting the drip tray and the park plate
Prerequisites: The park plate and the drip tray are not yet fitted.
► Click on the Fit drip tray and park plate
button.
(1) The LDU moves the squeegee axis to the
front over the lifting axis.
► (2) Fit the drip tray.
► Fit the park plate.
5 Cleaning
5.4 Refitting the cleaned parts
User Manual SIPLACE Linear Dipping Unit 2 X 05/2020 87
Fitting the dipping plate
Prerequisites: The drip tray and the park plate are fitted. The dipping plate is not yet fitted.
► Click on the Fit dip plate button.
(1) The LDU moves the squeegee back over the
park plate and moves the lifting axis up.
► (2) Fit the dipping plate in the orientation
shown.
Fitting the flux tank
Prerequisites: The park plate and the dipping plate are fitted.
► Click on the Fit flux tank button.
