DEK TQ Vitesco
Machine Standard Configuration
Technical Data
Process
Standard
Print Method
Paste Dispenser or Solder Jar Dispenser
Dual Access Cover for parallel paste replenishment
Paste Roll Height Monitor (PRHM)
Data Capture
Standard
Software & Communications
Verification
Traceability
SMART Factory Integration
Standard
Software & Communications
IPC-Hermes -9852
Closed-loop-to-SPI
9
DEK TQ Vitesco
Machine Productivity Options
Technical Data
Process
Optional
Substrate Support
Venturi Vacuum
Flexible High Flow Vacuum (HFV)
Vac Tooling Capability
Grid Lock Ready
HD Grid-Lok flexible tooling system
Stencil Support
Stencil Height Adapter (required if Stencil is below
25mm )
Environment
Temperature Control Unit
Software & Communications
Optional
Software & Communications
Remote SMART Factory (RSF)
Statistical Process Control (SPC)
On board, reported via operator interface (QC-CALC)
Data Capture
Optional
Software & Communications
Handheld barcode reader
Remote barcode reader
Camera barcode reader
SMART Factory Integration
Optional
Software & Communications
ASM OIB
IPC CFX
Connection to ASM Process Expert
ASM Offline Printer Programming
10
DEK TQ Vitesco

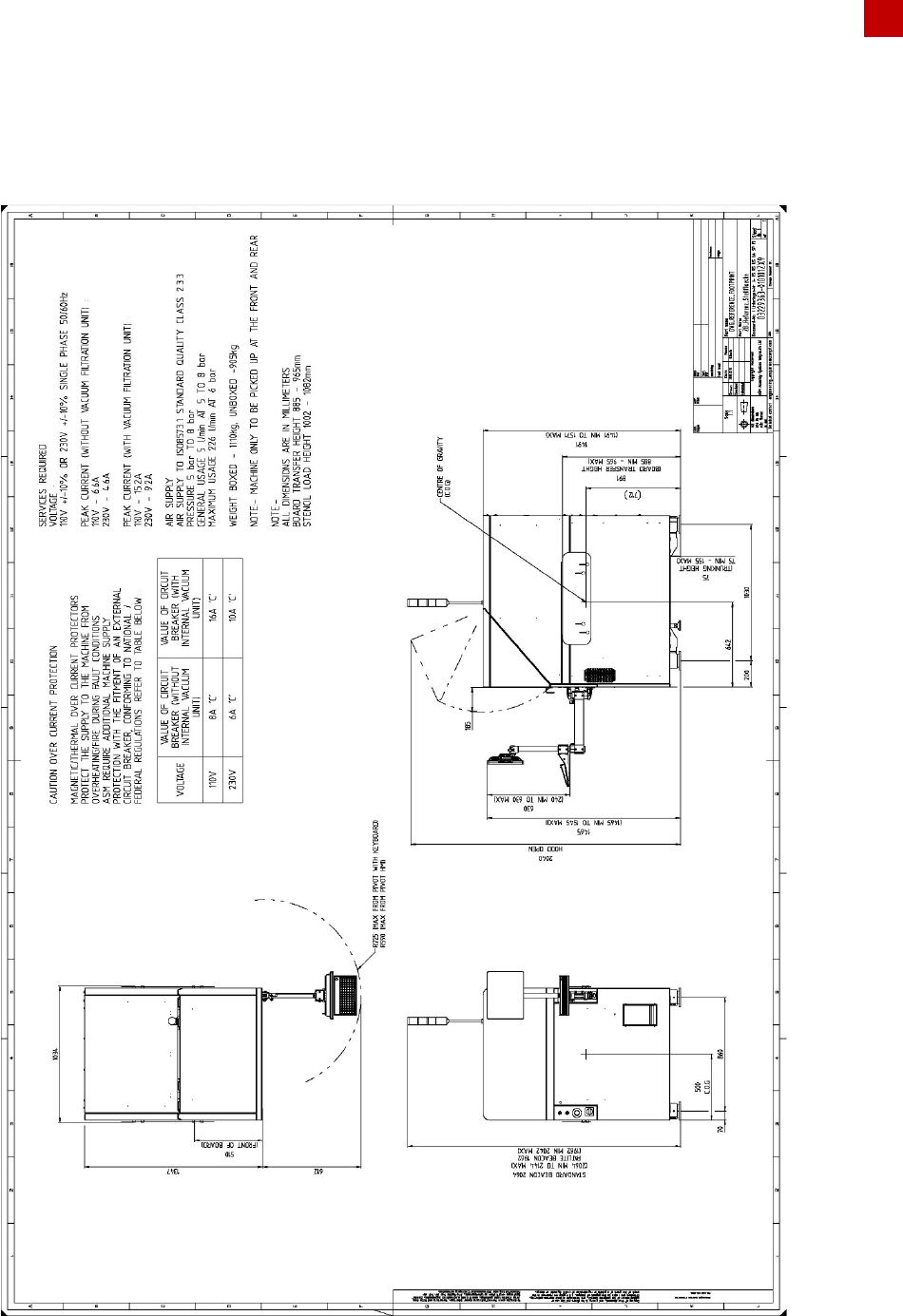

Machine Footprint
