Parts List (Mechanical Parts) - 第110页
PART NAME REMARKS Q'TY 7 挿入ﾕﾆｯﾄ駆動部 INSERTION U NIT DRIVING SE CT. ｲﾗｽﾄ No. REF No. PART No. 部 品 品 番 個数 備 考 R 1 R 2 1 1087123000 INSERTION UN IT DRIVING UNIT ｿｳﾆｭｳﾕﾆｯﾄｸﾄﾞｳ ﾌﾞ 1 001 108712300101 HOUSING ﾊｳｼﾞﾝｸﾞ 1 002 …

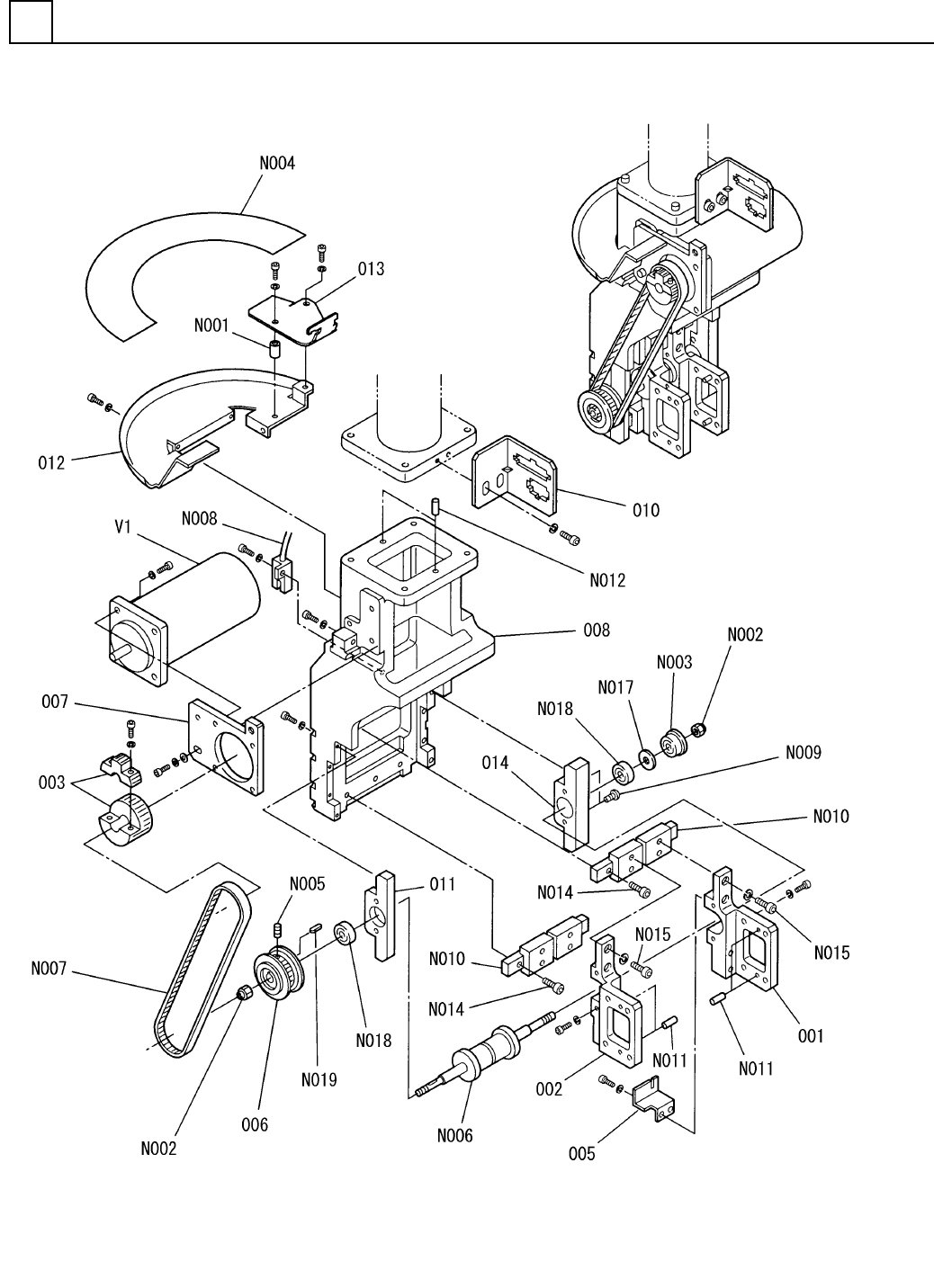

挿入ﾕﾆｯﾄ駆動部
INSERTION UNIT DRIVING SECT.
7
F10871-23-000-AF_02
M91
PART NAME
REMARKS
Q'TY
7
挿入ﾕﾆｯﾄ駆動部
INSERTION UNIT DRIVING SECT.
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品 番 個数 備 考
R
1
R
2
1 1087123000
INSERTION UNIT DRIVING UNIT ｿｳﾆｭｳﾕﾆｯﾄｸﾄﾞｳ ﾌﾞ
1
001 108712300101
HOUSING ﾊｳｼﾞﾝｸﾞ
1
002 108712300201
HOUSING ﾊｳｼﾞﾝｸﾞ
1003 108712300302
PULLEY ﾌﾟｰﾘｰ
1005 1087123005
DOG FOR SENSOR ﾄﾞｸﾞ
1
006 108712300602
PULLEY ﾌﾟｰﾘｰ
1
007 108712300702
PLATE ﾌﾟﾚｰﾄ
1008 N210062742AA
FRAME ﾌﾚｰﾑ
1010 N210047002AA
BRACKET ﾌﾞﾗｹｯﾄ
1
011 108712301102
BRACKET ﾌﾞﾗｹｯﾄ
1012 108712301202
PLATE ﾌﾟﾚｰﾄ
1013 N210047001AA
BRACKET ﾌﾞﾗｹｯﾄ
1
014 108712301401
BRACKET ﾌﾞﾗｹｯﾄ
NCLM5-8-10
1
N001
N560NCLM-259
COLLAR ｶﾗｰ
M5,SUS301,2-TYPE,SS400
2
N002
N510004700AA
LOCK-NUT ﾛｯｸﾅｯﾄ
F605ZZ
1
N003
KXF0AL7AA00
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
HMW-TAP-WER NO4
1
N004
N986HMWT-179
ADHESIVE TAPE ﾈﾝﾁｬｸﾃｰﾌﾟ
M3X6,STEEL,P.C
1
N005
XXE3C6FP
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ
MBF0602RL-2.7RRGT+107L
1
N006
N510019399AA
BALL SCREW ﾎﾞｰﾙﾈｼﾞ
315 3GT-6
1
N007
N6413153GT6
BELT(TIMING) ﾍﾞﾙﾄ(ﾀｲﾐﾝｸﾞ)
P914SA1
1
N008
N310P914SA1
SENSOR ｾﾝｻ
M3X6-4.8 A2J (Trivalen
2
N009
N510018253AA
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
2RSR7MUUC1S+65LPMS
2
N010
N5132RSR-A63
LINEAR MOTION UNIT ﾘﾆｱﾓｰｼｮﾝﾕﾆｯﾄ
3X8,A-TYPE
4
N011
N986YYYY-508
PARALLEL PIN ﾍｲｺｳﾋﾟﾝ
4X10,A-TYPE
2
N012
N986YYYY-509
PARALLEL PIN ﾍｲｺｳﾋﾟﾝ
M2X8-10.9 A2J (Trivale
6
N014
N510017261AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M2X4-10.9 A2J (Trivale
8
N015
N510017257AA
BOLT ﾎﾞﾙﾄ
CIMRB10-14-0.05
1
N017
N986C1MR-T56
RING ﾘﾝｸﾞ
605ZZ
2
N018
N510003188AA
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
2X2X6,PARALLEL,B.S.R
1
N019
XPA2L2F6
SUNK KEY ｼｽﾞﾐｷｰ
MSM5AZAJA S
1V 1 308712300201
MOTOR ﾓｰﾀ
M92
F10871-23-000-AF_02

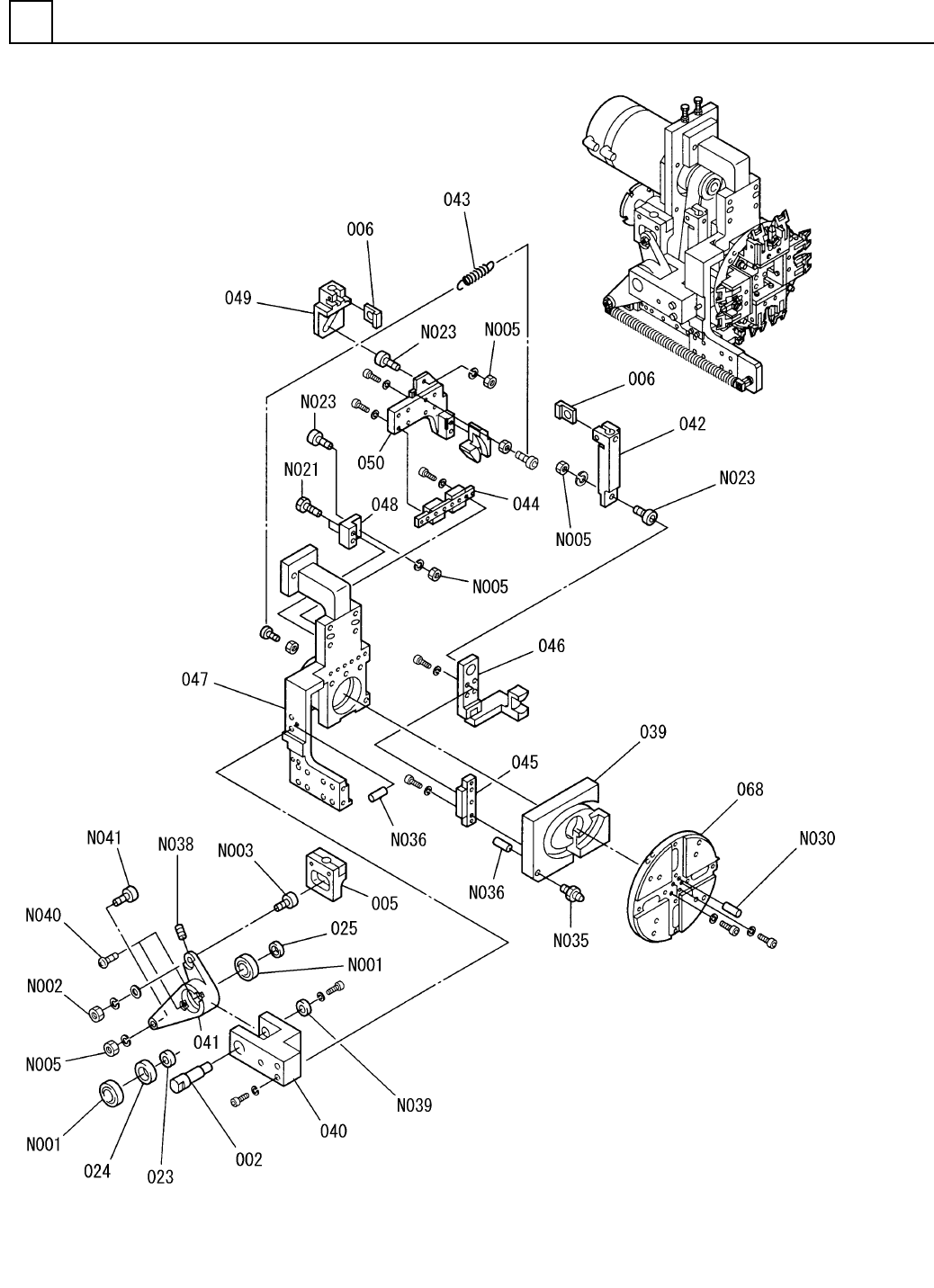

移載ﾁｬｯｸ部(1)
TRANSFER CHUCK SECT.(1)
8
F10871-11-000-AE_02-1
M93
