Parts List (Mechanical Parts) - 第133页
自己補正装 置部 SELF CORREC TION SECT. 12 F10871-24-000-AB_0 1 M115
PART NAME
REMARKS
Q'TY
11
ﾃ-ﾌﾟｶｯﾀ部(3)
TAPE CUTTER SECT.(3)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品 番 個数 備 考
R
1
R
2
1001 1017714029
PLATE ﾌﾟﾚｰﾄ
1
003 1041318003
COLLAR ｶﾗｰ
1
004 1041318004
SPRING ﾊﾞﾈ
1005 1017714039
COLLAR ｶﾗｰ
1010 104131801403
BLOCK(R) ﾌﾞﾛｯｸ(R)
1
011 108711801101
SHAFT ｼｬﾌﾄ
1
013 1017714044
PIN ﾋﾟﾝ
1014 1083818014
JOINT ｼﾞｮｲﾝﾄ
1015 1017714035
PIN ﾋﾟﾝ
1
019 108711801902
SLIDER ｽﾗｲﾀﾞ
1021 104131803204
LEVER ﾚﾊﾞｰ
1022 102460903701
PIN ﾋﾟﾝ
1
024 104131803505
CUTTER ｶｯﾀｰ
1
025 1041318036
SHAFT ｼｬﾌﾄ
1026 108711802601
RAIL(GUIDE) ﾚｰﾙ(ｶﾞｲﾄﾞ)
1027 1046918051
ROD ﾛｯﾄﾞ
1
028 1041318040
PIN ﾋﾟﾝ
1
029 104131804101
PIN ﾋﾟﾝ
1033 104131804701
ADJUSTER ｱｼﾞｬｽﾀ
1034 108381803401
LEVER ﾚﾊﾞｰ
POS12L
1
N001
N534P0S12L
ROD END ﾛｯﾄﾞｴﾝﾄﾞ
CDQ2A40-5DM-A73S
1
N002
N401CDQ2-A18
CYLINDER ｼﾘﾝﾀﾞ
KQ2L06-01S
2
N003
N431KQ2L-216
FITTING ﾂｷﾞﾃ
NT-04
1
N004
N401NT04
NUT ﾅｯﾄ
M12,1-TYPE,STEEL,P.C (
2
N008
XNHN12DFPL
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
NART10R-040010
1
N009
N531NART-016
ROLLER FOLLOWER ﾛｰﾗﾌｫﾛｱ
NAST12
1
N013
N532NAST12
ROLLER FOLLOWER ﾛｰﾗﾌｫﾛｱ
A-M6F
3
N014
N560A6FBN
GREASE NIPPLE ｸﾞﾘｰｽﾆｯﾌﾟﾙ
NA5902
2
N015
XLJNNA5902
NEEDLE ROLLER BEARING ﾆｰﾄﾞﾙﾛｰﾗﾍﾞｱﾘﾝｸﾞ
R4X1
2
N017
N473R41
ORIFICE RING ｵﾘﾌｨｽﾘﾝｸﾞ
D-A73
2V 1 N401DA73
SENSOR ｾﾝｻ
M114
F10871-18-000-AJ_01-3
自己補正装置部
SELF CORRECTION SECT.
12
F10871-24-000-AB_01
M115
PART NAME
REMARKS
Q'TY

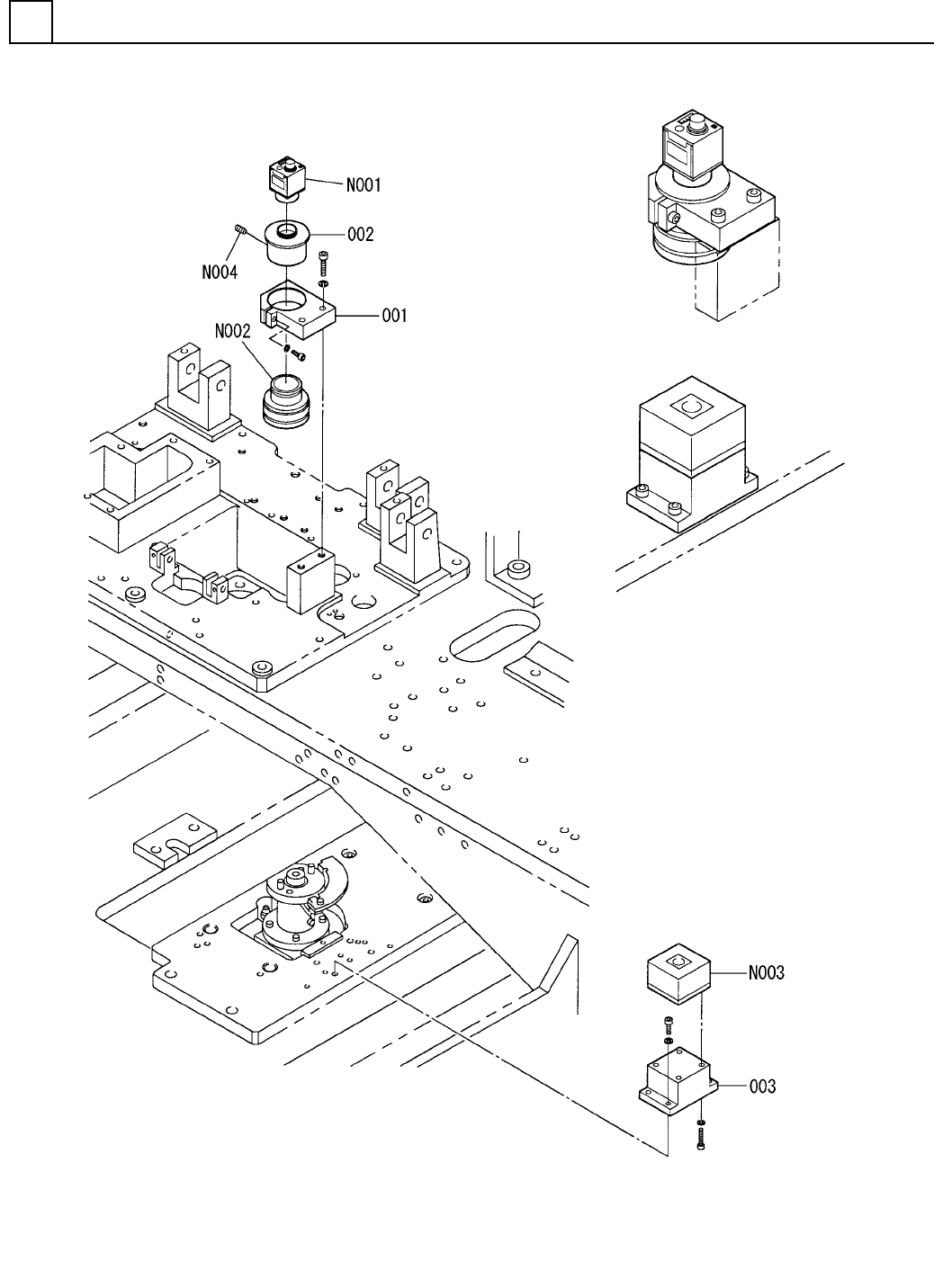

12
自己補正装置部
SELF CORRECTION SECT.
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品 番 個数 備 考
R
1
R
2
1 1087124000
SELF CORRECTION UNIT ｼﾞｺ ﾎｾｲｿｳﾁﾕﾆｯﾄ
1
001 108712400103
BRACKET ﾌﾞﾗｹｯﾄ
1
002 102462300401
SPACER ｽﾍﾟｰｻ
1003 101771601402
PLATE ﾌﾟﾚｰﾄ
CS8630i-03
1
N001
N510023803AA
CAMERA ｶﾒﾗ
40mm F4N
1
N002
N94140F4N
LENS ﾚﾝｽﾞ
P937AL S
1
N003
N310P937AL
PROJECTOR ﾄｳｺｳｷ
M3X4,STEEL,P.C
1
N004
XXE3D4FP
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ
M116
F10871-24-000-AB_01
