部品供給部 (2) FEEDER CARR IAGE SECT.(2) 18 F10871-07-100_01-2 M139

100%1 / 369
　　　
　　　　　　　　　 PART NAME
　　　　 REMARKS　
Q'TY
18
部品供給部(1)
FEEDER CARRIAGE SECT.(1)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品　 番 個数 備 考
R
1
R
2
1 1087107100
SUPPLY UNIT ｷｮｳｷｭｳﾕﾆｯﾄ
1
103 1087107103
CROSS BEAM ｸﾛｽﾋﾞｰﾑ
2
104 1087107104
LINEAR MOTION UNIT ﾘﾆｱﾓｰｼｮﾝﾕﾆｯﾄ
1105 104690700501
BRACKET ﾌﾞﾗｹｯﾄ
2106 1046907006
HOLDER ﾎﾙﾀﾞ
1
107 1087107107
BALL SCREW ﾎﾞｰﾙﾈｼﾞ
2
123 108710702901
PLATE ﾌﾟﾚｰﾄ
1124 108710703001
PLATE ﾌﾟﾚｰﾄ
1126 108710703503
PLATE ﾌﾟﾚｰﾄ
2
128 1046907046
STOPPER ｽﾄｯﾊﾟｰ
1140 1087107140
BRACKET ﾌﾞﾗｹｯﾄ
M10X90-12.9 SCHP
1
N001
N510004048AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
SCE201-40X62
2
N002
N645SCE2-022
COUPLING ｶｯﾌﾟﾘﾝｸﾞ
AT0-20-1-I/R S
1
N012
N300AT02011R
SWITCH ｽｲｯﾁ
V-M20
3
N013
KXF0DG3AA00
CABLE ｹｰﾌﾞﾙ
PANADAC921SA1
2
N014
N310P921SA1
SENSOR ｾﾝｻ
PANADAC921S1
1
N015
N310P921S1
SENSOR ｾﾝｻ
AT0-11-S-I/R S
2
N016
N300AT011S1R
SWITCH ｽｲｯﾁ
MFA250LE4NSJ S
1V 1 308380701202
MOTOR ﾓｰﾀ
M138
F10871-07-100_01-1

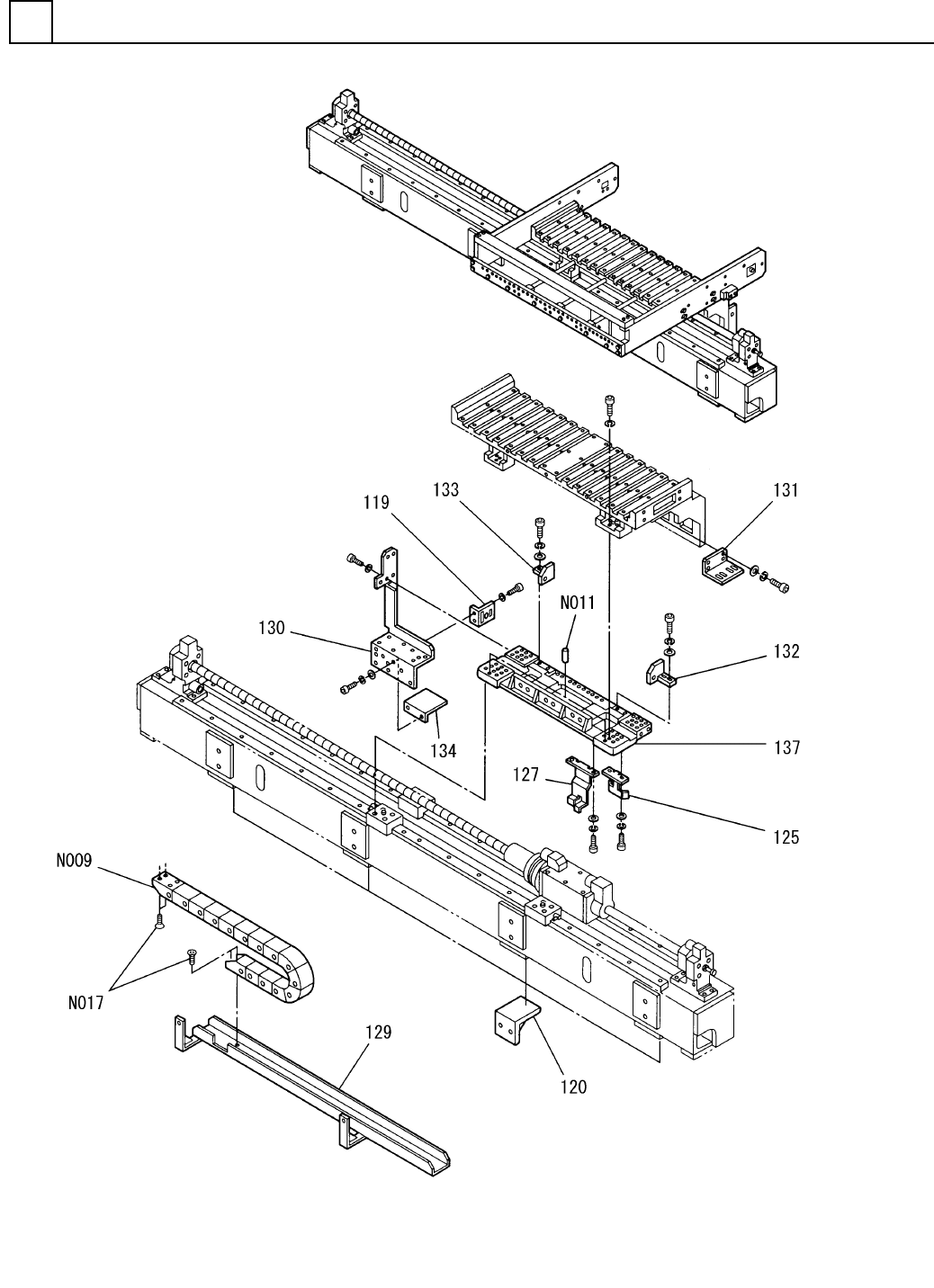

部品供給部(2)
FEEDER CARRIAGE SECT.(2)
18
F10871-07-100_01-2
M139
　　　
　　　　　　　　　 PART NAME
　　　　 REMARKS　
Q'TY
18
部品供給部(2)
FEEDER CARRIAGE SECT.(2)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品　 番 個数 備 考
R
1
R
2
1119 1087107025
BRACKET ﾌﾞﾗｹｯﾄ
4
120 104690703104
BRACKET ﾌﾞﾗｹｯﾄ
1
125 108710703201
DOG FOR SENSOR ﾄﾞｸﾞ
1127 108710703602
DOG FOR SENSOR ﾄﾞｸﾞ
1129 1087107129
BRACKET ﾌﾞﾗｹｯﾄ
1
130 108710704202
BRACKET ﾌﾞﾗｹｯﾄ
1
131 108710704301
BRACKET ﾌﾞﾗｹｯﾄ
1132 104690705201
BRACKET ﾌﾞﾗｹｯﾄ
1133 104690705301
BRACKET ﾌﾞﾗｹｯﾄ
1
134 1046907054
COVER ｶﾊﾞｰ
1137 104690705703
PLATE ﾌﾟﾚｰﾄ
250-03-055-0-32-2030.1
1
N009
N9862500-T61
FLEXIBLE DUCT ﾌﾚｷｼﾌﾞﾙﾀﾞｸﾄ
5X20,m6A,STEEL
2
N011
XPJ5A20FW
PARALLEL PIN ﾍｲｺｳﾋﾟﾝ
M6X12-10.9 A2J (Trival
4
N017
N510017645AA
BOLT ﾎﾞﾙﾄ
M140
F10871-07-100_01-2
