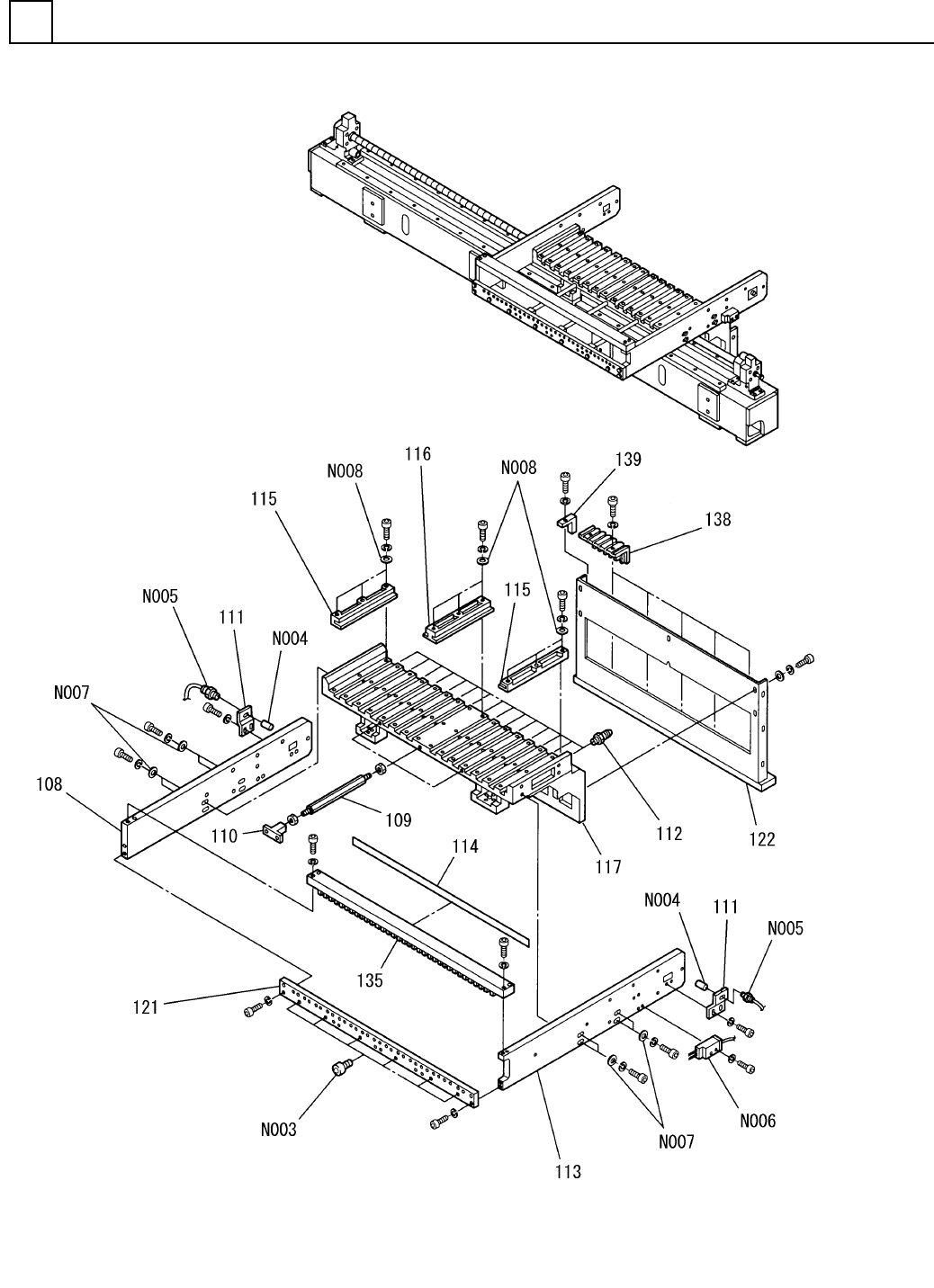

部品供給部(3)
FEEDER CARRIAGE SECT.(3)
18
F10871-07-100_01-3
M141
　　　
　　　　　　　　　 PART NAME
　　　　 REMARKS　
Q'TY
18
部品供給部(3)
FEEDER CARRIAGE SECT.(3)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品　 番 個数 備 考
R
1
R
2
1108 104690700803
BRACKET ﾌﾞﾗｹｯﾄ
3
109 102070708701
ROD ﾛｯﾄﾞ
3
110 104690701001
BRACKET ﾌﾞﾗｹｯﾄ
2111 1046907012
PLATE ﾌﾟﾚｰﾄ
15112 1083807012
PIN ﾋﾟﾝ
1
113 1087107013
BRACKET ﾌﾞﾗｹｯﾄ
1
114 1020707084
LABEL ﾗﾍﾞﾙ
2115 102070710101
RAIL(GUIDE) ﾚｰﾙ(ｶﾞｲﾄﾞ)
14116 102070710001
RAIL(GUIDE) ﾚｰﾙ(ｶﾞｲﾄﾞ)
1
117 1083807022
FRAME (R) ﾌﾚｰﾑ(R)
1121 104690703201
PLATE ﾌﾟﾚｰﾄ
1122 104690703405
BRACKET ﾌﾞﾗｹｯﾄ
1
135 1046907055
BLOCK ﾌﾞﾛｯｸ
5
138 1046907060
GUIDE ｶﾞｲﾄﾞ
1139 1046907061
BRACKET ﾌﾞﾗｹｯﾄ
CF4-A
6
N003
N531CF4A
CAM FOLLOWER ｶﾑﾌｫﾛｱ
FP1-A01
1
N004
N310FP1A01
ATTACHMENT ｱﾀｯﾁﾒﾝﾄ
EP1-321
1
N005
N310EP1321
OPTICAL FIBER CABLE UNIT ﾌｧｲﾊﾞｰﾕﾆｯﾄ
PK7-CR-E1
1
N006
N310PK7CRE1
AMPLIFIER FOR SENSOR ｱﾝﾌﾟﾕﾆｯﾄ
8 10H A2J (Trivalent)
8
N007
N510018482AA
ROUND PLAIN WASHER ｺｶﾞﾀﾏﾙﾋﾗｻﾞｶﾞﾈ
5 10H A2J (Trivalent)
48
N008
N510018480AA
ROUND PLAIN WASHER ｺｶﾞﾀﾏﾙﾋﾗｻﾞｶﾞﾈ
M142
F10871-07-100_01-3
