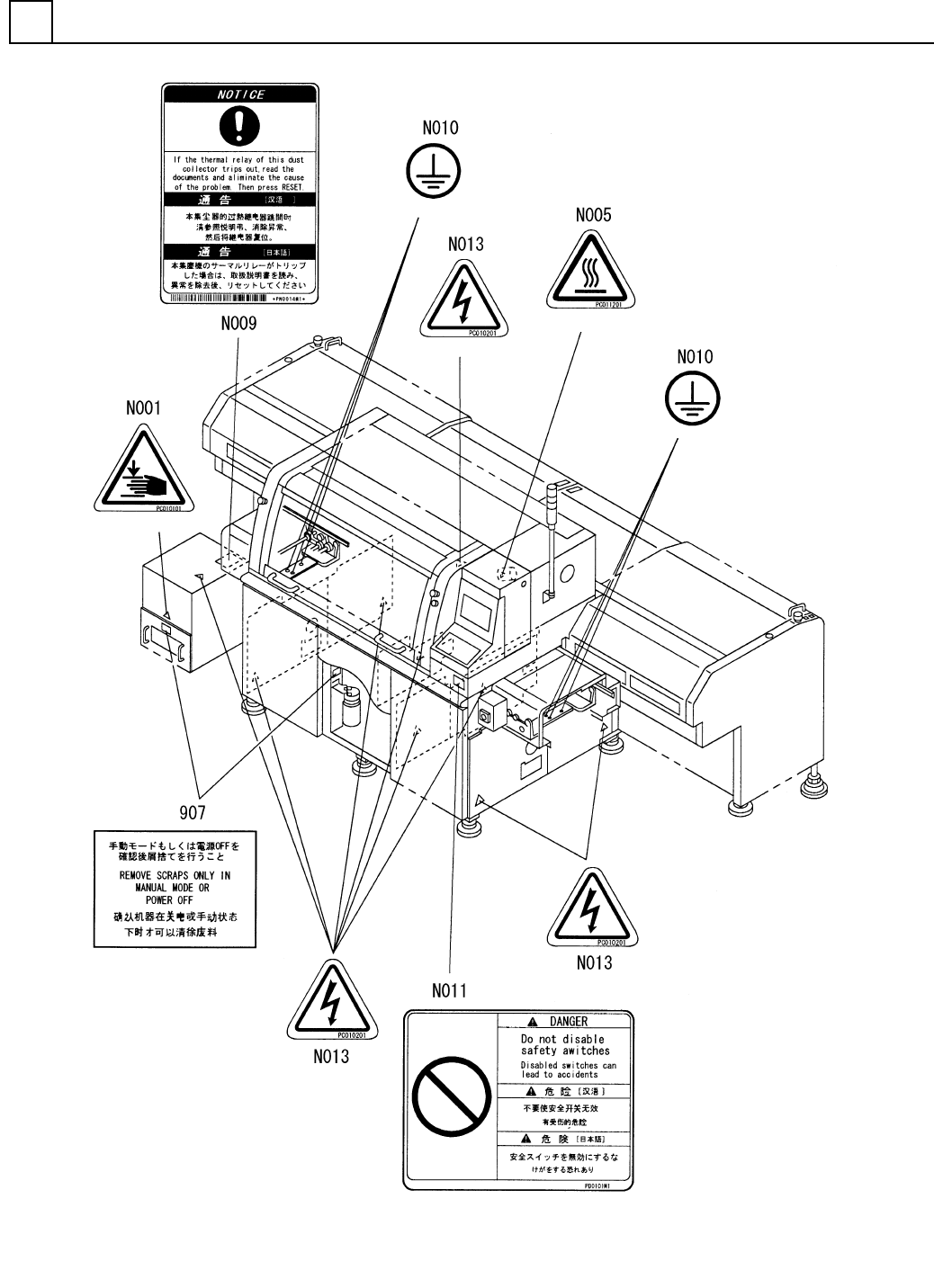

PART NAME REMARKS Q'TY 19 ｱｼﾞｬｽﾄﾎﾞﾙﾄ部 ADJUST BOLT SECT. ｲﾗｽﾄ No. REF No. PART No. 部 品 品 番 個数 備 考 R 1 R 2 1 1043889510 ADJUSTING BO LT ｱｼﾞｬｽﾄﾎﾞﾙﾄ 1 511 104388950102 STAND ｽﾀﾝﾄﾞ 1 512 104388951201 BOLT ﾎﾞﾙﾄ 1 513 1043…

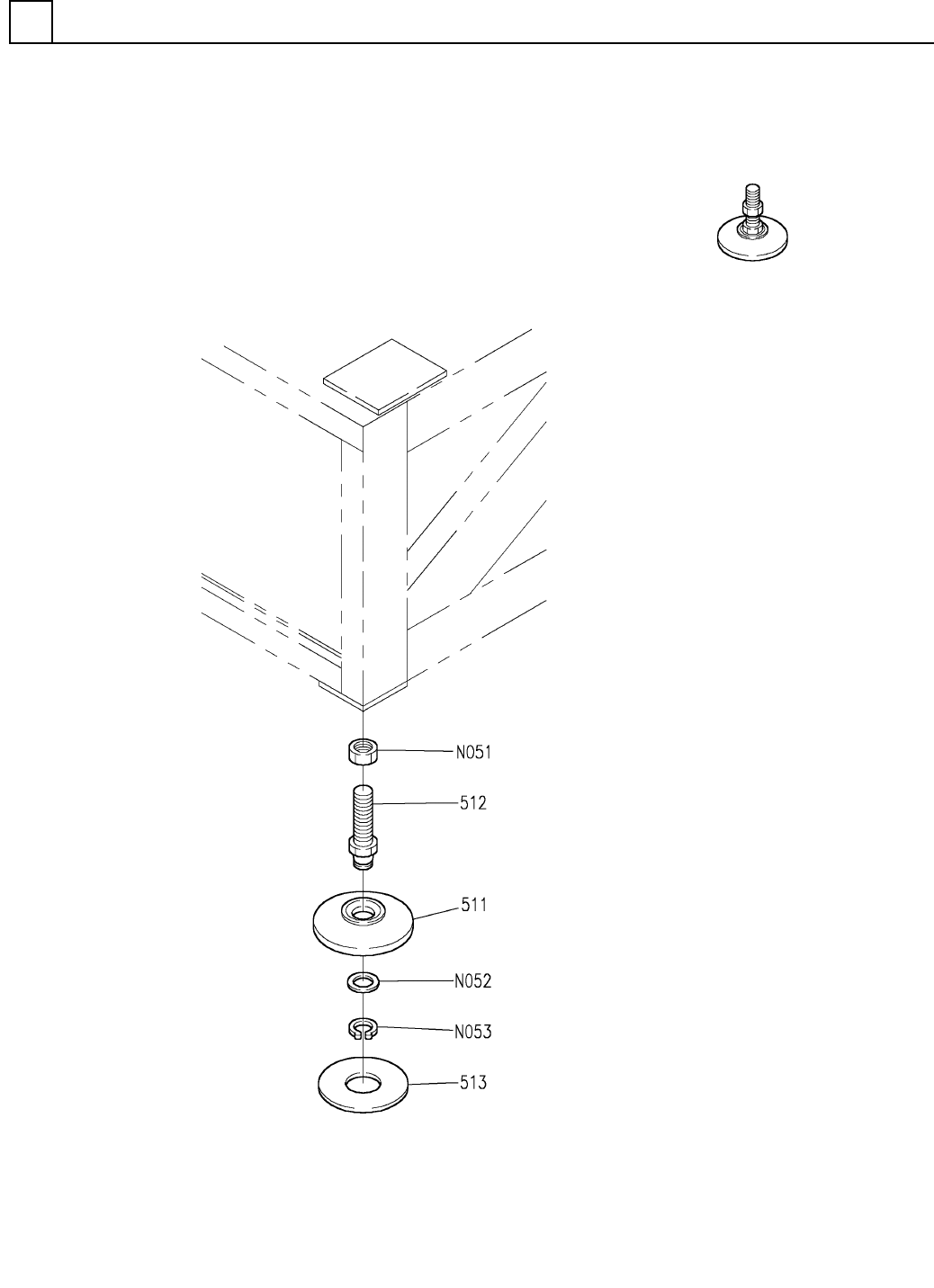

ｱｼﾞｬｽﾄﾎﾞﾙﾄ部
ADJUST BOLT SECT.
19
F10438-89-510-AA_B
M143
PART NAME
REMARKS
Q'TY
19
ｱｼﾞｬｽﾄﾎﾞﾙﾄ部
ADJUST BOLT SECT.
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品 番 個数 備 考
R
1
R
2
1 1043889510
ADJUSTING BOLT ｱｼﾞｬｽﾄﾎﾞﾙﾄ
1
511 104388950102
STAND ｽﾀﾝﾄﾞ
1
512 104388951201
BOLT ﾎﾞﾙﾄ
1513 104388950301
RUBBER ﾗﾊﾞｰ
M30,3-TYPE,STEEL,P.C
1
N051
XNH30FFP
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
USR32
1
N052
N986USR32
SPACER ｽﾍﾟｰｻ
30,STEEL,P.C
1
N053
XUB30FP
RETAINING RING C-TYPE, SHAF C ｶﾞﾀｼﾞｸﾖｳﾄﾒﾜ
