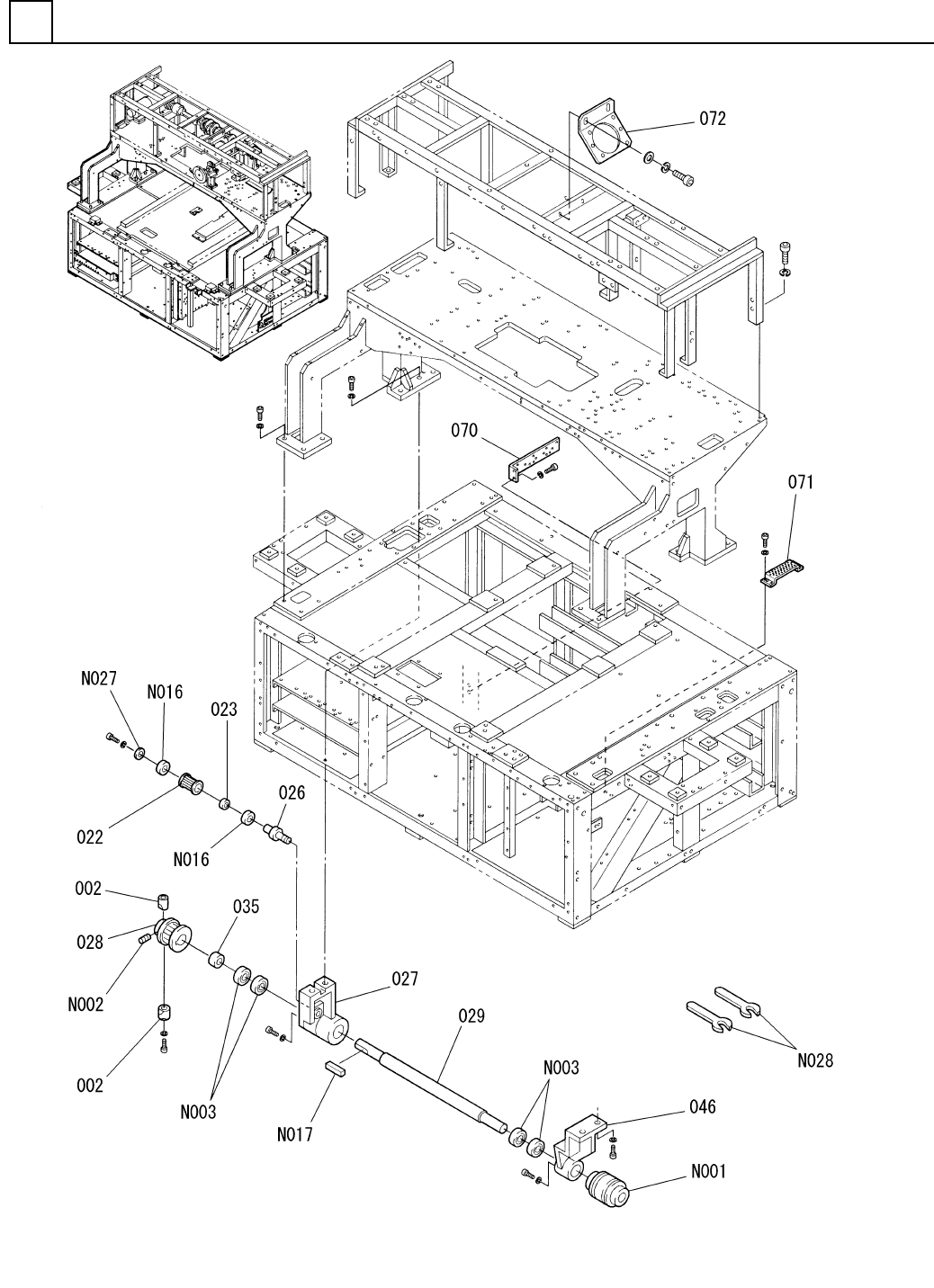

Parts List (Mechanical Parts) - 第22页
PART NAME REMARKS Q'TY 1 本体部(2) MAIN BODY S ECT.(2) ｲﾗｽﾄ No. REF No. PART No. 部 品 品 番 個数 備 考 R 1 R 2 1 022 104130103101 PULLEY ﾌﾟｰﾘｰ 1 023 102460801001 COLLAR ｶﾗｰ 1 024 104130103402 PIN ﾋﾟﾝ 1 025 102070101302 BRACKE…
本体部(2)
MAIN BODY SECT.(2)
1
F10871-01-000-AJ_01-2
M3
PART NAME
REMARKS
Q'TY
1
本体部(2)
MAIN BODY SECT.(2)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品 番 個数 備 考
R
1
R
2
1022 104130103101
PULLEY ﾌﾟｰﾘｰ
1
023 102460801001
COLLAR ｶﾗｰ
1
024 104130103402
PIN ﾋﾟﾝ
1025 102070101302
BRACKET ﾌﾞﾗｹｯﾄ
1033 108710103302
UPPER FRAME ﾌﾚｰﾑ(ｱｯﾊﾟｰ)
1
034 1087101034
BRACKET ﾌﾞﾗｹｯﾄ
2
040 108710104004
COVER ｶﾊﾞｰ
2041 1087101041
BRACKET ﾌﾞﾗｹｯﾄ
2042 104130106102
PIN ﾋﾟﾝ
2
043 104130106201
COLLAR ｶﾗｰ
1047 1087101047
BRACKET ﾌﾞﾗｹｯﾄ
1051 1041301078
BRACKET ﾌﾞﾗｹｯﾄ
1
056 1087101056
BRACKET ﾌﾞﾗｹｯﾄ
1
067 1046951695
COVER ｶﾊﾞｰ
1068 108710106802
SPACER ｽﾍﾟｰｻ
6904ZZ
2
N016
XLC6904ZZ
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
VEL-7055
2
N020
N648VFL7055
PULLEY ﾌﾟｰﾘｰ
6X25,m6A,STEEL
9
N021
XPJ6A25FW
PARALLEL PIN ﾍｲｺｳﾋﾟﾝ
M6X60-10.9 A2J (Trival
1
N022
N510022585AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
SRW20
1
N027
N560SRW20
WASHER ｻﾞｶﾞﾈ
M4
F10871-01-000-AJ_01-2
本体部(3)
MAIN BODY SECT.(3)
1
F10871-01-000-AJ_01-3
M5
