Parts List (Mechanical Parts) - 第31页
ｶﾊﾞ-部(3) COVER SECT. (3) 2 F10871-02-000-AJ_0 4-3 M13
PART NAME
REMARKS
Q'TY
2
ｶﾊﾞ-部(2)
COVER SECT.(2)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品 番 個数 備 考
R
1
R
2
1009 108710200901
SIDE COVER (R) ｻｲﾄﾞｶﾊﾞｰ(R)
1
011 1087102011
SIDE COVER (R) ｻｲﾄﾞｶﾊﾞｰ(R)
1
015 1087102015
BRACKET ﾌﾞﾗｹｯﾄ
1018 108710201801
COVER ｶﾊﾞｰ
1020 108710202002
COVER ｶﾊﾞｰ
1
022 108710202201
COVER ｶﾊﾞｰ
1
042 108710204202
COVER ｶﾊﾞｰ
1043 108350204201
COVER ｶﾊﾞｰ
1046 108710204601
COVER(L) ｶﾊﾞｰ(L)
1
048 108710204801
SIDE COVER ｻｲﾄﾞｶﾊﾞｰ
1049 108380205702
COVER ｶﾊﾞｰ
1050 108710205003
COVER(R) ｶﾊﾞｰ(R)
1
055 1083802081
PLATE ﾌﾟﾚｰﾄ
2
057 1083502043
BRACKET ﾌﾞﾗｹｯﾄ
4715KL-05W-B20-P00
1
N005
N2384715-093
FAN WITH MOTOR ﾌｧﾝﾓｰﾀ
5 External toothed Ste
17
N010
N510018765AA
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
4 External toothed Ste
16
N011
N510018762AA
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
M4-6H-4T A2J (Trivalen
8
N014
N510017855AA
NUT ﾅｯﾄ
M4X10-4.8 A2J (Trivale
26
N019
N510018257AA
SCREW ﾈｼﾞ
PG-47-02(8130)
2
N027
N238PG47-091
COVER(FAN) ｶﾊﾞｰ(ﾌｧﾝ)
M4X12-4.8 A2J (Trivale
8
N028
N510018259AA
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
JB-AM5X8
17
N035
N986JBAM58
BOLT ﾎﾞﾙﾄ
M5X12
17
N036
N986YYYY-814
CAP ｷｬｯﾌﾟ
C-30-SG-24A,WHITE
1
N038
N980C30S-065
GROMMET ｸﾞﾛﾒｯﾄ
M12
F10871-02-000-AJ_04-2
ｶﾊﾞ-部(3)
COVER SECT.(3)
2
F10871-02-000-AJ_04-3
M13
PART NAME
REMARKS
Q'TY
2
ｶﾊﾞ-部(3)
COVER SECT.(3)

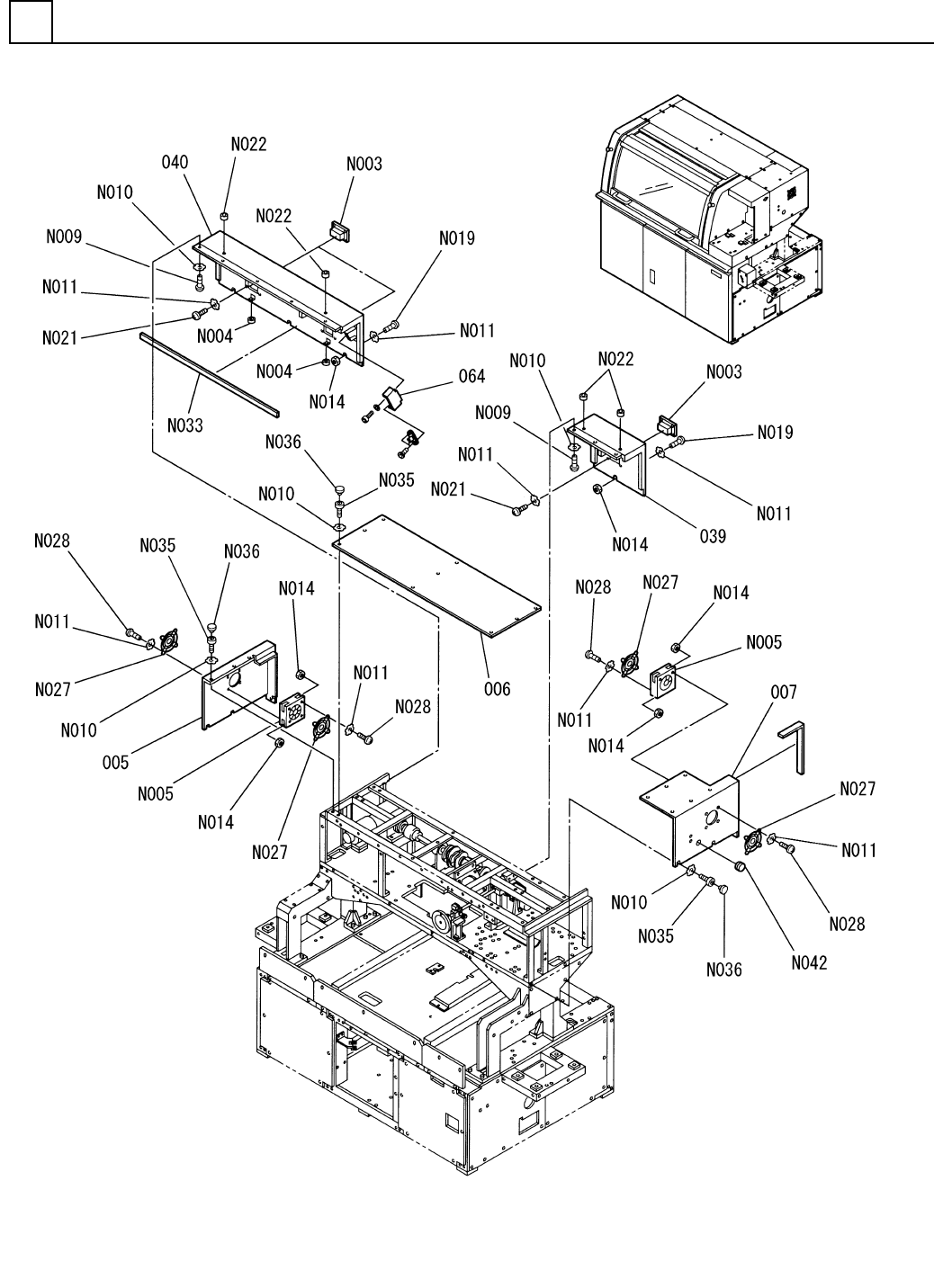

ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品 番 個数 備 考
R
1
R
2
1005 108710200502
SIDE COVER (L) ｻｲﾄﾞｶﾊﾞｰ(L)
1
006 1087102006
TOP COVER ﾄｯﾌﾟｶﾊﾞｰ
1
007 108710200702
SIDE COVER (R) ｻｲﾄﾞｶﾊﾞｰ(R)
1039 1087102039
REAR COVER ｶﾊﾞｰ(REAR)
1040 108710204002
REAR COVER ｶﾊﾞｰ(REAR)
1
064 1087102064
BRACKET ﾌﾞﾗｹｯﾄ
A-1191-2-B
3
N003
N980A11912B
DRAWER PULL ﾄｯﾃ
C-30-CS-4
2
N004
KXF01E2AA00
RUBBER ｺﾞﾑ
4715KL-05W-B20-P00
2
N005
N2384715-093
FAN WITH MOTOR ﾌｧﾝﾓｰﾀ
M5X6-4.8 A2J (Trivalen
8
N009
N510018300AA
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
5 External toothed Ste
38
N010
N510018765AA
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
4 External toothed Ste
28
N011
N510018762AA
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
M4-6H-4T A2J (Trivalen
16
N014
N510017855AA
NUT ﾅｯﾄ
M4X10-4.8 A2J (Trivale
4
N019
N510018257AA
SCREW ﾈｼﾞ
M4X6-4.8 A2J (Trivalen
12
N021
N510018279AA
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
C-30-CS-5
4
N022
KXF01E3AA00
RUBBER ｺﾞﾑ
PG-47-02(8130)
4
N027
N238PG47-091
COVER(FAN) ｶﾊﾞｰ(ﾌｧﾝ)
M4X12-4.8 A2J (Trivale
16
N028
N510018259AA
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
E02S130040JST
1
N033
N510024567AA
GASKET ｶﾞｽｹｯﾄ
JB-AM5X8
23
N035
N986JBAM58
BOLT ﾎﾞﾙﾄ
M5X12
23
N036
N986YYYY-814
CAP ｷｬｯﾌﾟ
C-30-BW-25-2,WHITE
1
N042
N980C30B-120
GROMMET ｸﾞﾛﾒｯﾄ
M14
F10871-02-000-AJ_04-3
