Parts List (Mechanical Parts) - 第58页
PART NAME REMARKS Q'TY 2 ｶﾊﾞｰ部(Z軸ｶﾊﾞｰ部1) COVER SECT. (Z-AXIS COVER SECT.-1) ｲﾗｽﾄ No. REF No. PART No. 部 品 品 番 個数 備 考 R 1 R 2 1 1087102700 COVER UNIT ｶﾊﾞｰﾕﾆｯﾄ 1 703 1087102305 PLATE ﾌﾟﾚｰﾄ 1 704 108710230601 COVER ｶﾊﾞ…

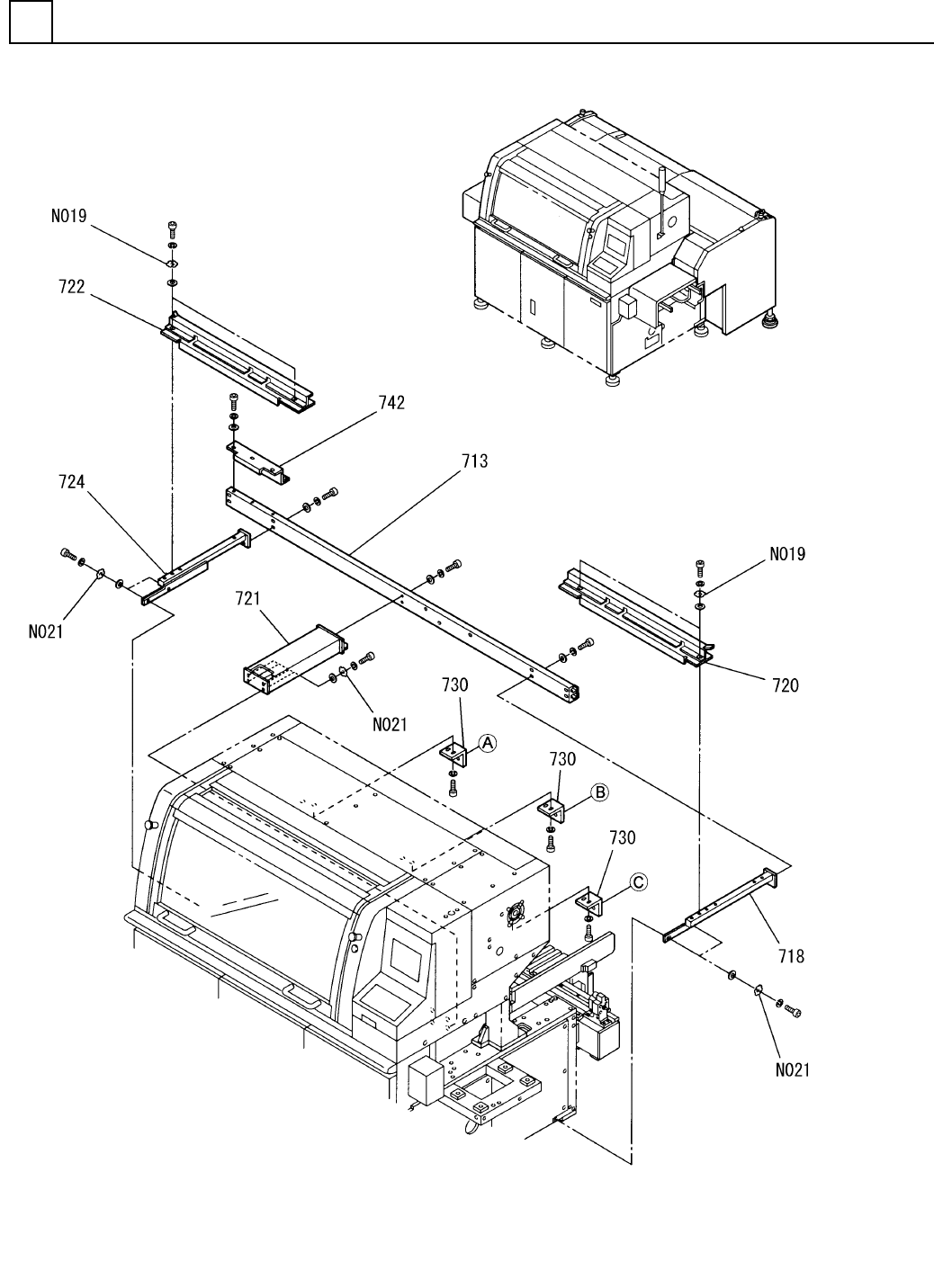

ｶﾊﾞｰ部(Z軸ｶﾊﾞｰ部1)
COVER SECT.(Z-AXIS COVER SECT.-1)
2
F10871-02-700_03-1
M39
PART NAME
REMARKS
Q'TY
2
ｶﾊﾞｰ部(Z軸ｶﾊﾞｰ部1)
COVER SECT.(Z-AXIS COVER SECT.-1)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品 番 個数 備 考
R
1
R
2
1 1087102700
COVER UNIT ｶﾊﾞｰﾕﾆｯﾄ
1
703 1087102305
PLATE ﾌﾟﾚｰﾄ
1
704 108710230601
COVER ｶﾊﾞｰ
1705 1087102307
COVER ｶﾊﾞｰ
1712 1087102713
RAIL ﾚｰﾙ
1
728 108710233403
BRACKET ﾌﾞﾗｹｯﾄ
4
733 108710233901
PLATE ﾌﾟﾚｰﾄ
2734 108710234001
PLATE ﾌﾟﾚｰﾄ
2735 1087102736
BLOCK ﾌﾞﾛｯｸ
1
740 3086239031
LABEL ﾗﾍﾞﾙ
M3X6-4.8 A2J (Trivalen
10
N001
N510018253AA
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
3 External toothed Ste
10
N002
N510018760AA
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
XW1E-BV402MFR-TK2377 S
1
N006
N510011524AA
SWITCH ｽｲｯﾁ
D4NS-1BF S
1
N011
N510015338AA
SWITCH ｽｲｯﾁ
ST13.5
1
N013
KXF06F4AA00
JOINT ｼﾞｮｲﾝﾄ
C-30-SG9A(WHITE)
4
N016
N980C30SG9AW
GROMMET ｸﾞﾛﾒｯﾄ
5 External toothed Ste
3
N019
N510018765AA
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
M40
F10871-02-700_03-1
ｶﾊﾞｰ部(Z軸ｶﾊﾞｰ部2)
COVER SECT.(Z-AXIS COVER SECT.-2)
2
F10871-02-700_03-2
M41
