ﾛｰﾀﾞ･ｱﾝﾛｰﾀﾞ 部(共通 部<ﾛｰﾀﾞ部>) LOADER & UN LOADER SECT.(COMMO N SECT.<LOADER SE CT.>) 4 F10871-05-300-AD-2 M63

100%1 / 369
　　　
　　　　　　　　　 PART NAME
　　　　 REMARKS　
Q'TY
4
ﾛｰﾀﾞ･ｱﾝﾛｰﾀﾞ部(共通部<ﾛｰﾀﾞ部>)
LOADER & UNLOADER SECT.(COMMON SECT.<LOADER SECT.>)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品　 番 個数 備 考
R
1
R
2
1 1087105300
LOADER & UNLOADER UNIT ﾛｰﾀﾞｱﾝﾛｰﾀﾞﾕﾆｯﾄ
1
308 109970510804
FRAME ﾌﾚｰﾑ
1
318 1099705118
PULLEY ﾌﾟｰﾘｰ
2320 109970512002
LEVER ﾚﾊﾞｰ
1326 1087105326
PLATE ﾌﾟﾚ-ﾄ
1
329 1087105329
LINK ﾘﾝｸ
2
337 1099705137
PIN ﾋﾟﾝ
1339 1087105339
BUSHING ﾌﾞｯｼﾝｸﾞ
2340 109970514001
COLLAR ｶﾗｰ
1
342 108710534201
COLLAR ｶﾗｰ
6001ZZ
2N 6 XLC6001ZZ
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
M4X8,+,STEEL,Z.C.T
12N11 XST4+8FY
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
MOPC3917
1
N13 MOPC3917
CAP FOR CAPACITOR ｺﾝﾃﾞﾝｻｷｬｯﾌﾟ
M4GA12.5F
1
N14 M4GA12.5F
GEAR HEAD ｷﾞﾔｰﾍｯﾄﾞ
M4X8,STEEL,P.C
3N15 XXE4C8FP
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ
80F-0805
4N16 N52080F0805
BUSHING ﾌﾞｯｼﾝｸﾞ
FUN-008-SS
2
N18 XNRNFUN008SS
LOCK-NUT ﾛｯｸﾅｯﾄ
P919
2
N20 N310P919
SENSOR ｾﾝｻ
T10
2N21 N986T10
WASHER ｻﾞｶﾞﾈ
M3X50,STEEL,P.C
2N22 XVE3B50FP
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
1AP34N
1
N23 N5541AP34N
O-RING O ﾘﾝｸﾞ
M3,1-TYPE,STEEL,Z.C.T
2
N25 XNG3AFY
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M5X12,STEEL,Z.C.T
2N26 XVE5B12FY
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X18,STEEL,Z.C.T
8N27 XVE4B18FY
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M6X12,STEEL,Z.C.T
4
N29 XVE6B12FY
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X20,STEEL,Z.C.T
3N30 XVE5B20FY
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X8,STEEL,Z.C.T
2N31 XVE4B8FY
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4,1-TYPE,STEEL,P.C
2
N32 XNG4AFP
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M4X6,STEEL,P.C
3
N33 XXE4C6FP
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ
MB019000
2N34 N648MB019000
PULLEY(TENSION) ﾌﾟｰﾘｰ(ﾃﾝｼｮﾝ)
NKPM5-B
1N35 N986NKPM5B
KNOB ﾉﾌﾞ
M4RA1G4L S
1
V 3 308380500702
MOTOR ﾓｰﾀ
M62
F10871-05-300-AD-1
ﾛｰﾀﾞ･ｱﾝﾛｰﾀﾞ部(共通部<ﾛｰﾀﾞ部>)
LOADER & UNLOADER SECT.(COMMON SECT.<LOADER SECT.>)
4
F10871-05-300-AD-2
M63
　　　
　　　　　　　　　 PART NAME
　　　　 REMARKS　
Q'TY
4

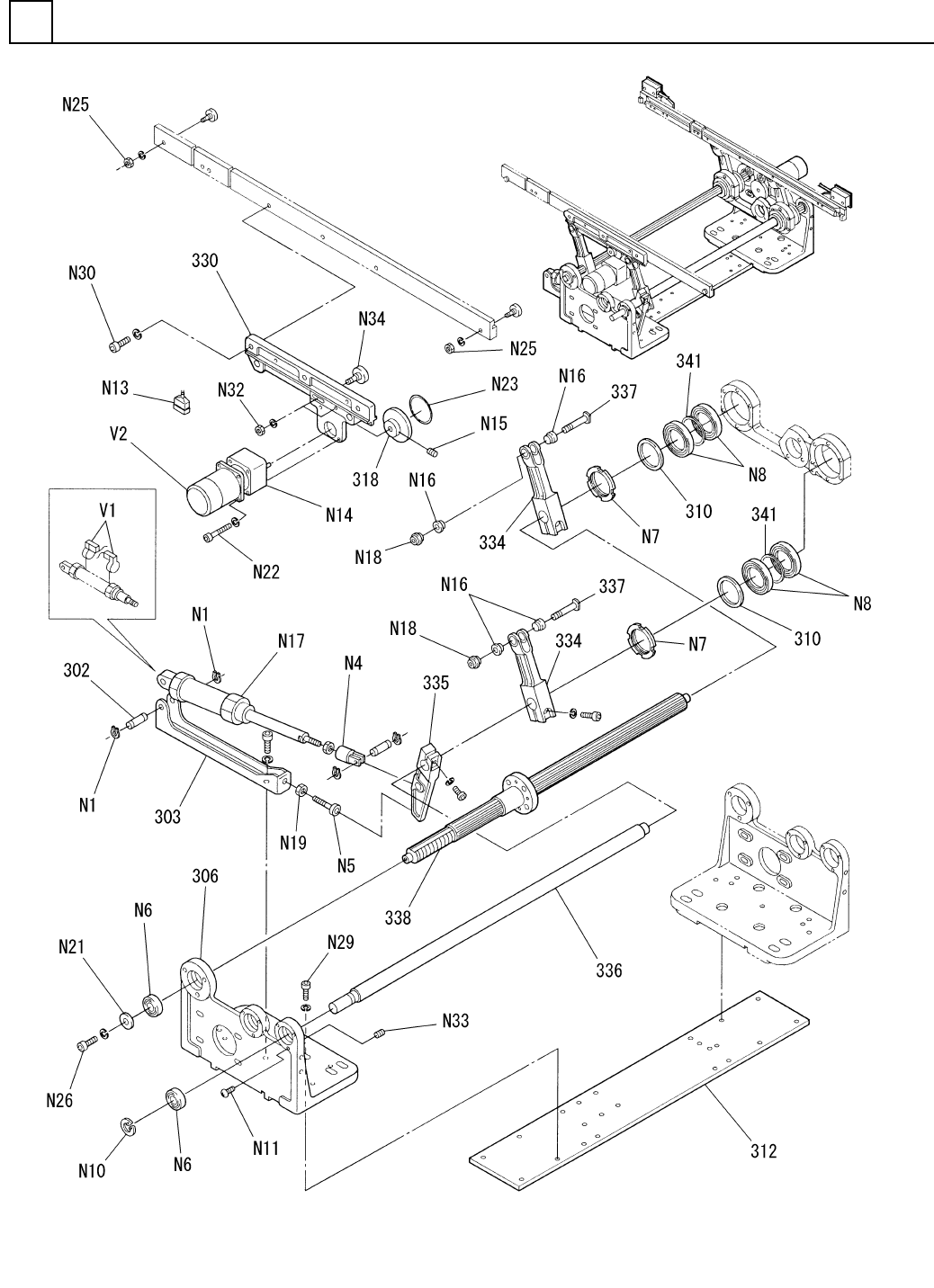

ﾛｰﾀﾞ･ｱﾝﾛｰﾀﾞ部(共通部<ﾛｰﾀﾞ部>)
LOADER & UNLOADER SECT.(COMMON SECT.<LOADER SECT.>)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品　 番 個数 備 考
R
1
R
2
1302 1099705002
PIN ﾋﾟﾝ
1
303 1099705103
BRACKET ﾌﾞﾗｹｯﾄ
1
306 109970510604
FRAME ﾌﾚｰﾑ
2310 1099705110
PLATE ﾌﾟﾚｰﾄ
1312 109970531203
PLATE ﾌﾟﾚｰﾄ
1
318 1099705118
PULLEY ﾌﾟｰﾘｰ
1
330 1087105330
LINK ﾘﾝｸ
2334 109970513402
LEVER ﾚﾊﾞｰ
1335 109970513502
LEVER ﾚﾊﾞｰ
1
336 109970533601
SHAFT ｼｬﾌﾄ
2337 1099705137
PIN ﾋﾟﾝ
1338 108710533801
SPLINE ｽﾌﾟﾗｲﾝ
2
341 1099705141
SPACER ｽﾍﾟｰｻ
10,STEEL,P.C
2
N 1 XUB10FP
RETAINING RING C-TYPE C ｶﾞﾀｼﾞｸﾖｳﾄﾒﾜ
CM30-18-56075-G1(Y-560
1N 4 N401CM30-244
KNUCKLE JOINT ﾅｯｸﾙｼﾞｮｲﾝﾄ
G2305
1N 5 N986G2305
BOLT ﾎﾞﾙﾄ
6001ZZ
2
N 6 XLC6001ZZ
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
FU07SS
2
N 7 XNRNFU07SS
LOCK-NUT ﾛｯｸﾅｯﾄ
4N 8 N510003302AA
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
12,STEEL,P.C
1N10 XUB12FP
RETAINING RING C-TYPE C ｶﾞﾀｼﾞｸﾖｳﾄﾒﾜ
M4X8,+,STEEL,Z.C.T
12
N11 XST4+8FY
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
MOPC3917
1
N13 MOPC3917
CAP FOR CAPACITOR ｺﾝﾃﾞﾝｻｷｬｯﾌﾟ
M4GA12.5F
1N14 M4GA12.5F
GEAR HEAD ｷﾞﾔｰﾍｯﾄﾞ
M4X8,STEEL,P.C
3N15 XXE4C8FP
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ
80F-0805
4
N16 N52080F0805
BUSHING ﾌﾞｯｼﾝｸﾞ
CDBM2E32H-D7069-40
1N17 N401CDBM-592
CYLINDER ｼﾘﾝﾀﾞ
FUN-008-SS
2N18 XNRNFUN008SS
LOCK-NUT ﾛｯｸﾅｯﾄ
M8,1-TYPE,STEEL,Z.C.T
1
N19 XNG8DFY
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
T10
1
N21 N986T10
WASHER ｻﾞｶﾞﾈ
M3X50,STEEL,P.C
2N22 XVE3B50FP
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
1AP34N
1N23 N5541AP34N
O-RING O ﾘﾝｸﾞ
M3,1-TYPE,STEEL,Z.C.T
2
N25 XNG3AFY
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M5X12,STEEL,Z.C.T
1
N26 XVE5B12FY
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M6X12,STEEL,Z.C.T
4N29 XVE6B12FY
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M5X20,STEEL,Z.C.T
3N30 XVE5B20FY
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4,1-TYPE,STEEL,P.C
2
N32 XNG4AFP
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M4X6,STEEL,P.C
3
N33 XXE4C6FP
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ
MB019000
2N34 N648MB019000
PULLEY(TENSION) ﾌﾟｰﾘｰ(ﾃﾝｼｮﾝ)
D-C73
2V 1 N401DC73
SENSOR ｾﾝｻ
M4RA1G4L S
1
V 2 308380500602
MOTOR ﾓｰﾀ
M64
F10871-05-300-AD-2
