Parts List (Mechanical Parts) - 第88页
PART NAME REMARKS Q'TY 4 ﾛｰﾀﾞ･ｱﾝﾛｰﾀﾞ 部(ﾛｰﾀﾞｱｰﾑ連動部) LOADER & UN LOADER SECT.(LOADE R ARM SWING SECT. ) ｲﾗｽﾄ No. REF No. PART No. 部 品 品 番 個数 備 考 R 1 R 2 1 1087116000 LOADER ARM S WING UNIT ﾛｰﾀﾞｱｰﾑﾚﾝﾄﾞｳﾕﾆ ｯﾄ 1 1 10…

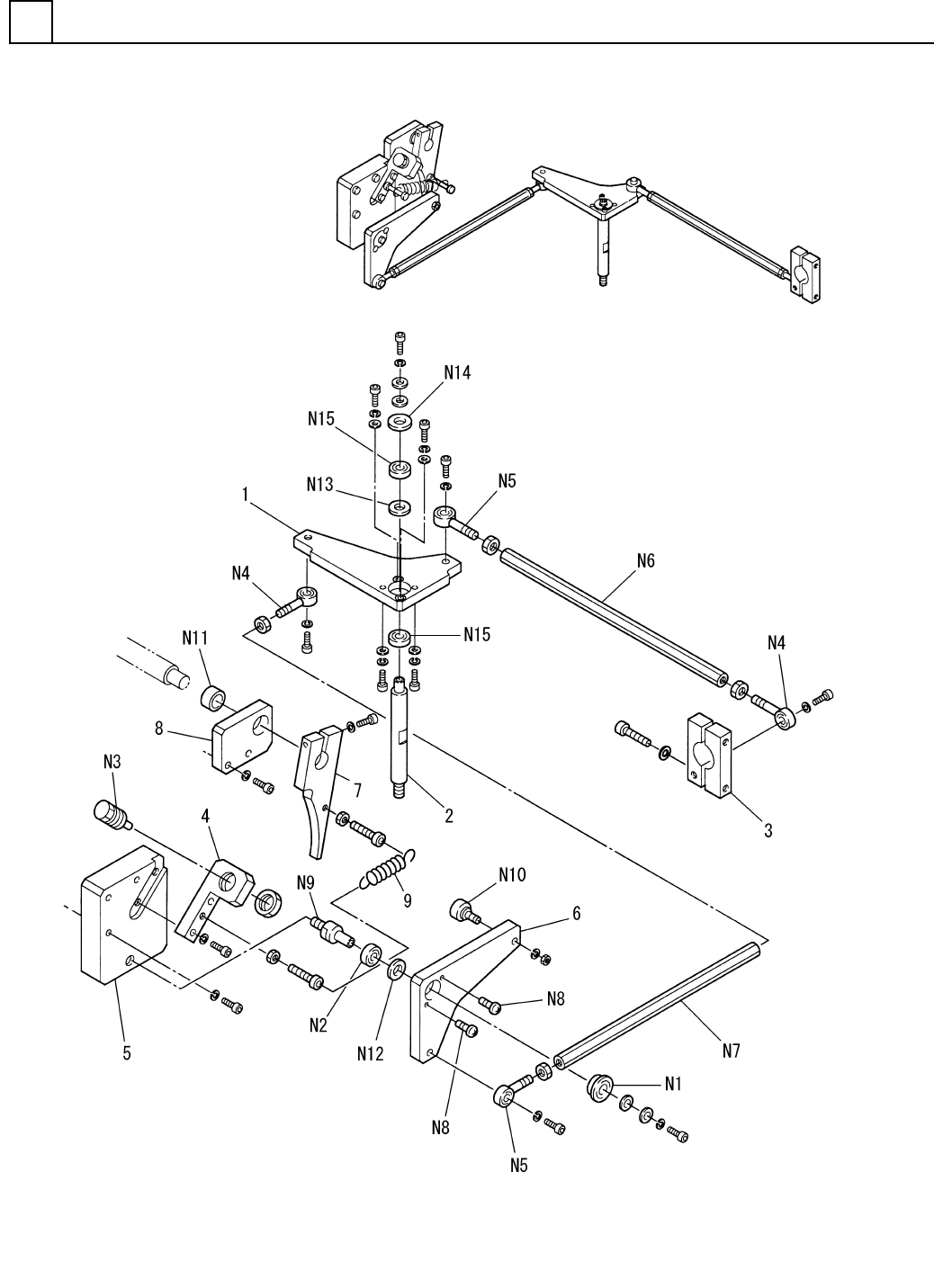

ﾛｰﾀﾞ･ｱﾝﾛｰﾀﾞ部(ﾛｰﾀﾞｱｰﾑ連動部)
LOADER & UNLOADER SECT.(LOADER ARM SWING SECT.)
4
F10871-16-000-AD_A
M69
PART NAME
REMARKS
Q'TY
4
ﾛｰﾀﾞ･ｱﾝﾛｰﾀﾞ部(ﾛｰﾀﾞｱｰﾑ連動部)
LOADER & UNLOADER SECT.(LOADER ARM SWING SECT.)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品 番 個数 備 考
R
1
R
2
1 1087116000
LOADER ARM SWING UNIT ﾛｰﾀﾞｱｰﾑﾚﾝﾄﾞｳﾕﾆｯﾄ
1
1 108711600103
LEVER ﾚﾊﾞｰ
1
2 108711600203
PIN ﾋﾟﾝ
13 108711600301
LEVER ﾚﾊﾞｰ
14 108711600402
BRACKET ﾌﾞﾗｹｯﾄ
1
5 108711600502
BRACKET ﾌﾞﾗｹｯﾄ
1
6 108711600601
LEVER ﾚﾊﾞｰ
17 1087116007
LEVER ﾚﾊﾞｰ
18 108711600801
BRACKET ﾌﾞﾗｹｯﾄ
1
9 1087116009
SPRING ﾊﾞﾈ
F688AZZ1
1N 1 XLCNF688AZZ1
BEARING ﾍﾞｱﾘﾝｸﾞ
688AZZ1
1N 2 KXF0E2FJA00
BEARING ﾍﾞｱﾘﾝｸﾞ
RBQ1604
1
N 3 N437RBQ1604
SHOCK-ABSORBER ｼｮｯｸｱﾌﾞｿｰﾊﾞｰ
N0S4T
2
N 4 N533N0S4T
ROD END ﾛｯﾄﾞｴﾝﾄﾞ
NOS4TL
2N 5 N533N0S4TL
ROD END ﾛｯﾄﾞｴﾝﾄﾞ
LBMFN4-206
1N 6 N533LBMF-032
ROD ﾛｯﾄﾞ
LBMFN4-184
1
N 7 N533LBMF-033
ROD ﾛｯﾄﾞ
M3X6,+,STEEL,Z.C.T
2
N 8 XST3+6FY
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
FXBB8-12-F9-MA4
1N 9 N986FXBB-T57
PIN ﾋﾟﾝ
CF6R-A
1N10 N531CF6RA
CAM FOLLOWER ｶﾑﾌｫﾛｱ
MB1410DU
1
N11 N520MB1410DU
BUSHING ﾌﾞｯｼﾝｸﾞ
CIMRB12-16-0.05
1
N12 N986C1MR-T79
RING ﾘﾝｸﾞ
CIMRB20-24-0.05
1N13 N986C1MR-U87
RING ﾘﾝｸﾞ
WSSB20-5-3
1N14 N560WSSB2053
WASHER ｻﾞｶﾞﾈ
6802ZZ
2
N15 XLCN6802ZZ
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
M70
F10871-16-000-AD_A

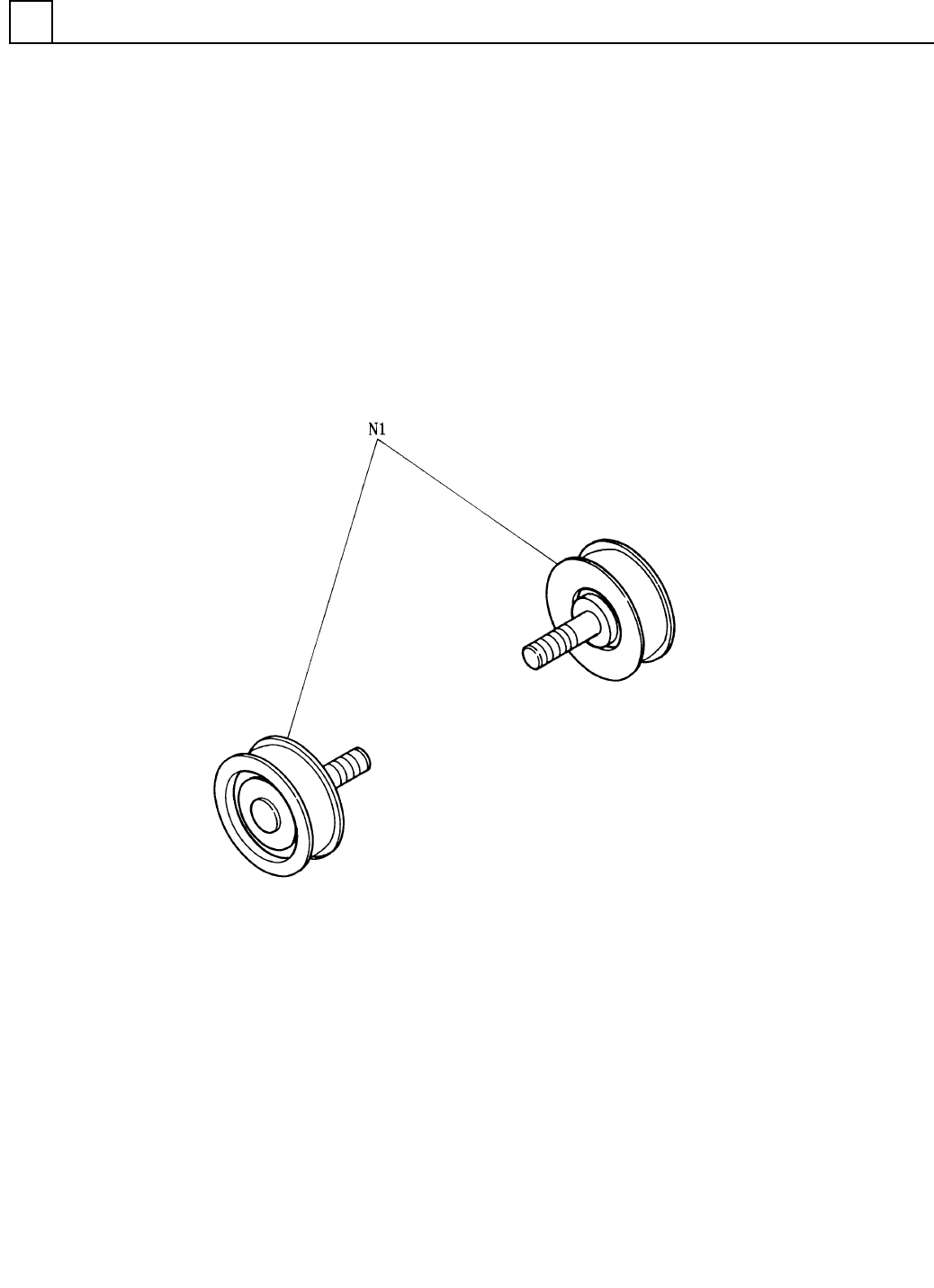

ﾛｰﾀﾞ･ｱﾝﾛｰﾀﾞ部（ﾌﾟｰﾘ部）
LOADER & UNLOADER SECT.(PULLEY SECT.)
4
F10997-05-950
M71
