Test Research, Inc.
20 TR7600 SIII Series User Guide – Camera Calibration
7) Put the center of the cross line at the center of the upper white hole.
8) Press [To Center] and two white square holes should have overlapped in most areas.
9) Click [Close] to complete this calibration.
Figure 26: Center Alignment Calibration Steps
Test Research, Inc.
TR7600 SIII Series User Guide – Camera Calibration 21
2.4 Height Calibration
Note: Generally, this calibration is not required. Please check with TRI FAEs before
performing this calibration. Without professional assistance, calibration that failed
may cause issues which are difficult to resolve.

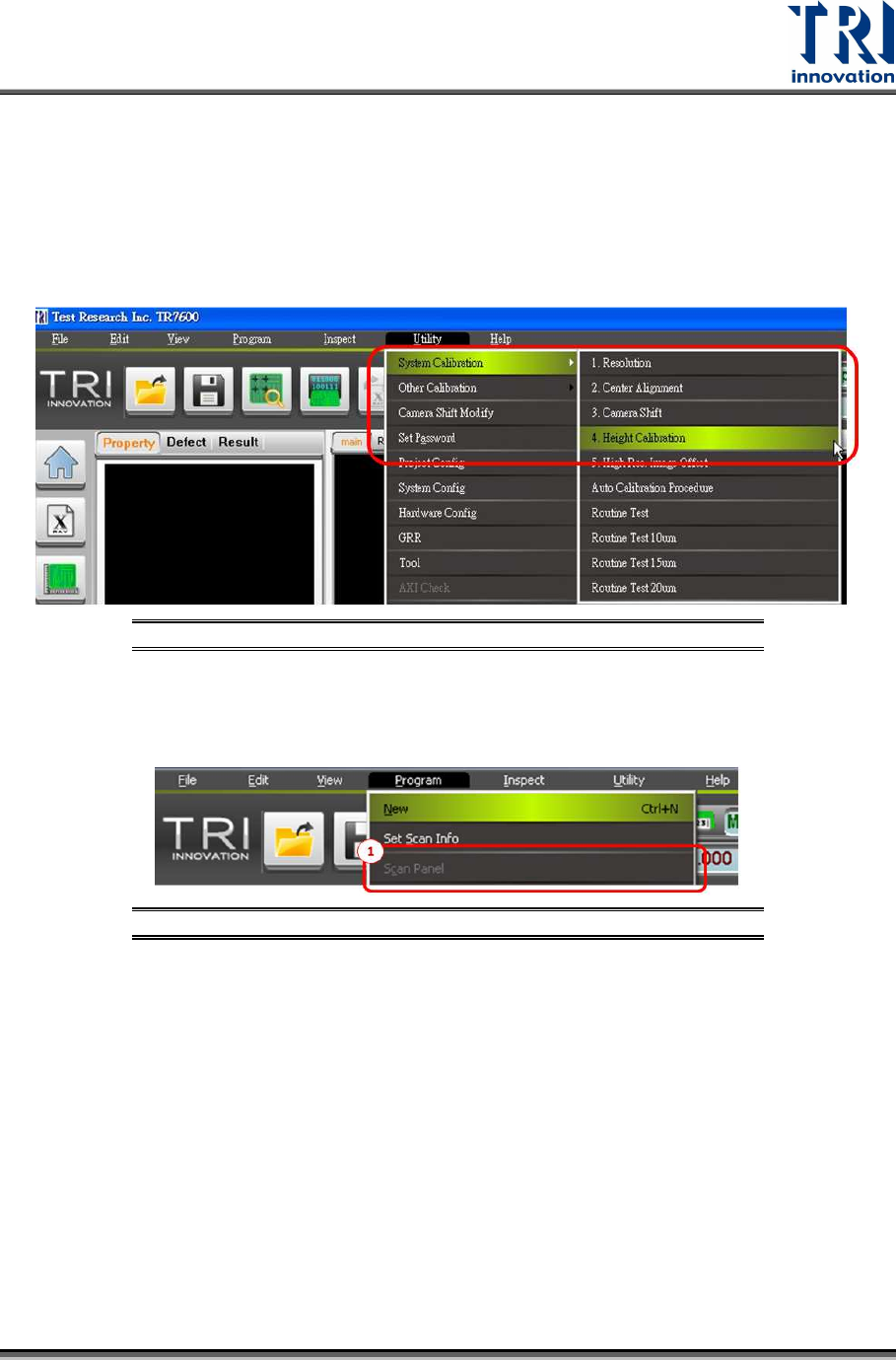

Go to [Utility] [System Calibration] [Height Calibration]
Figure 27: Utility/System Calibration/Height Calibration
Please follow the procedures below.
1) After the calibration dialogue appears, go to [Program] and press [Scan Panel].
Figure 28: Height Calibration Steps
2) Press the [S] key on the keyboard to switch the slice image to a 2D image and click [6]
or [4] on the keyboard to acquire the following image.
Test Research, Inc.
22 TR7600 SIII Series User Guide – Camera Calibration

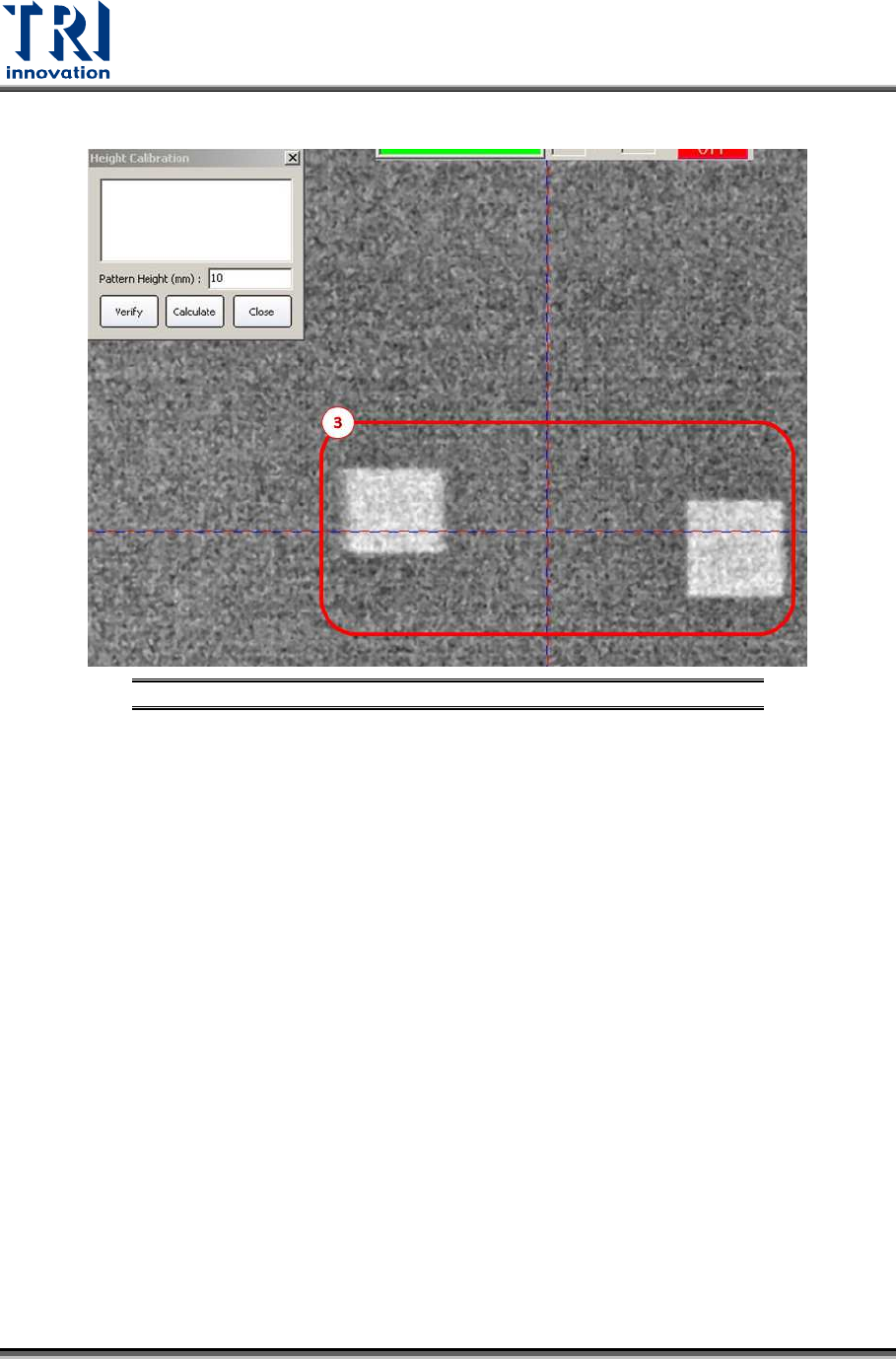

3) Locate the center of the cross line at the center of two white square boxes.
Figure 29: Height Calibration Steps
4) Press [Calculate] and some values will change in the calibration dialogue as shown
below.
5) Press [Close].
6) Press [OK] to complete the calibration process.
