Test Research, Inc.
TR7600 SIII Series User Guide – Camera Calibration 39

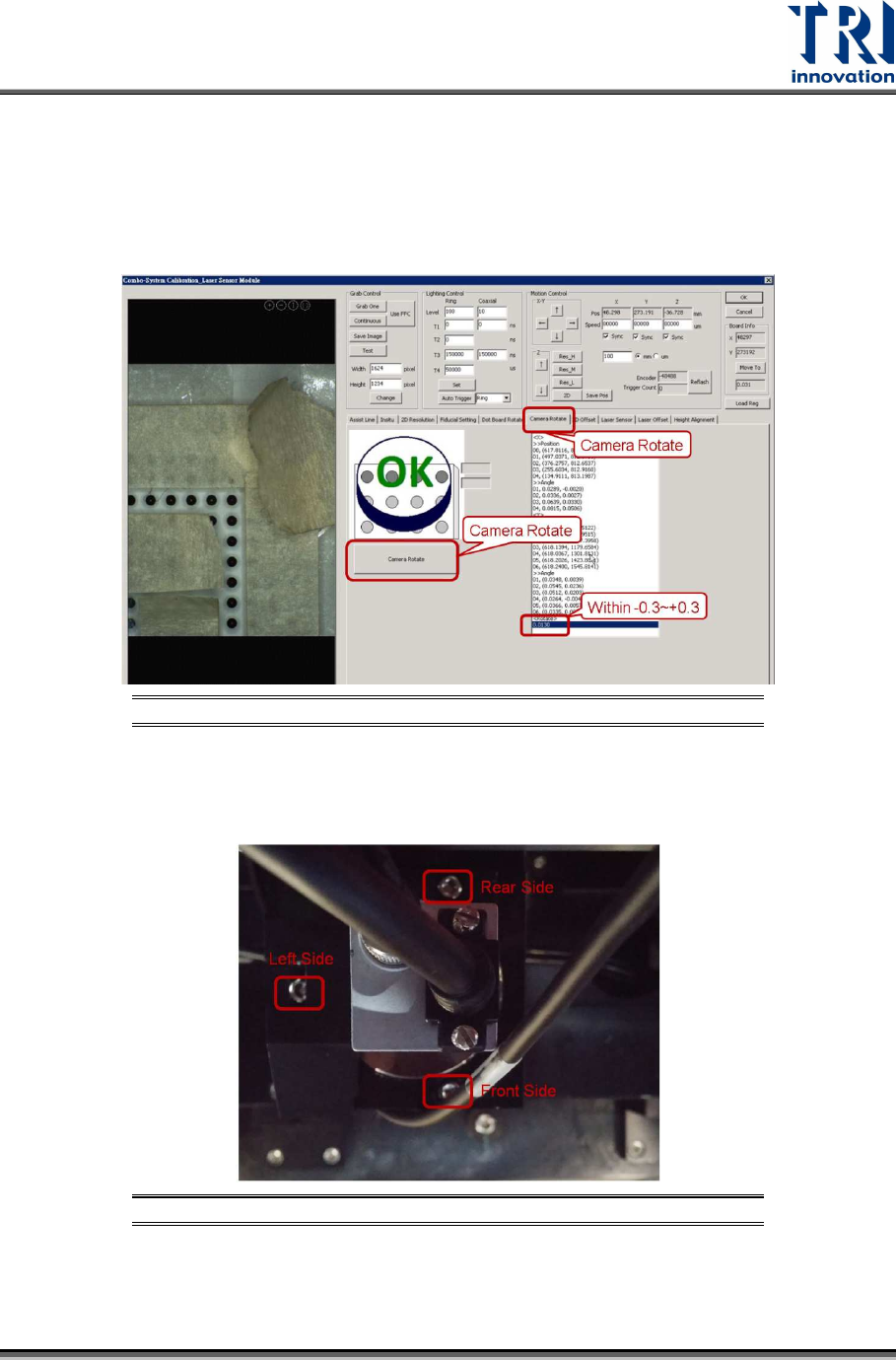

3.4 Camera Rotate:
This step is used to align the coordinates of camera to X and Y axes.
1) Click on [Camera Rotate] that is next to the [Dot Board Rotate] button.
2) Click on [Camera Rotate] that is under the [OK] message as shown below.
3) If the [OK] message appeared, click on [2D Offset] and move to the next step.
Figure 62: Camera Rotate
4) If the [OK] message does not appeared, rotate the camera. Release the screws a
little bit first. The screws’ positions are indicated as below.
Figure 63: Screws Location/Top View of 2D Camera
Test Research, Inc.
40 TR7600 SIII Series User Guide – Camera Calibration
5) Use the fixture to rotate the camera to the direction indicated in figure below.
Figure 64: Rotate the Camera by the Direction Indicated
Figure 65: Fixture/Front View
Figure 66: Fixture/Top View/Right Side View/Left Side View
Test Research, Inc.
TR7600 SIII Series User Guide – Camera Calibration 41
6) When fixture is used, one screw need to be loosen first and then fasten the other
screw to rotate the camera.
Figure 67: Rotate the Camera
7) After the camera is rotated, click on [Camera Rotate] to check if the [OK]
message appeared. If yes, fasten the screws. If no, keep rotating the camera until
the [Ok] message appeared.
8) After the screws are fastened, click on [Camera Rotate] to check for [OK]
message again.
9) Once the [OK] message appeared, click on [2D Resolution] and move to the next
step.
